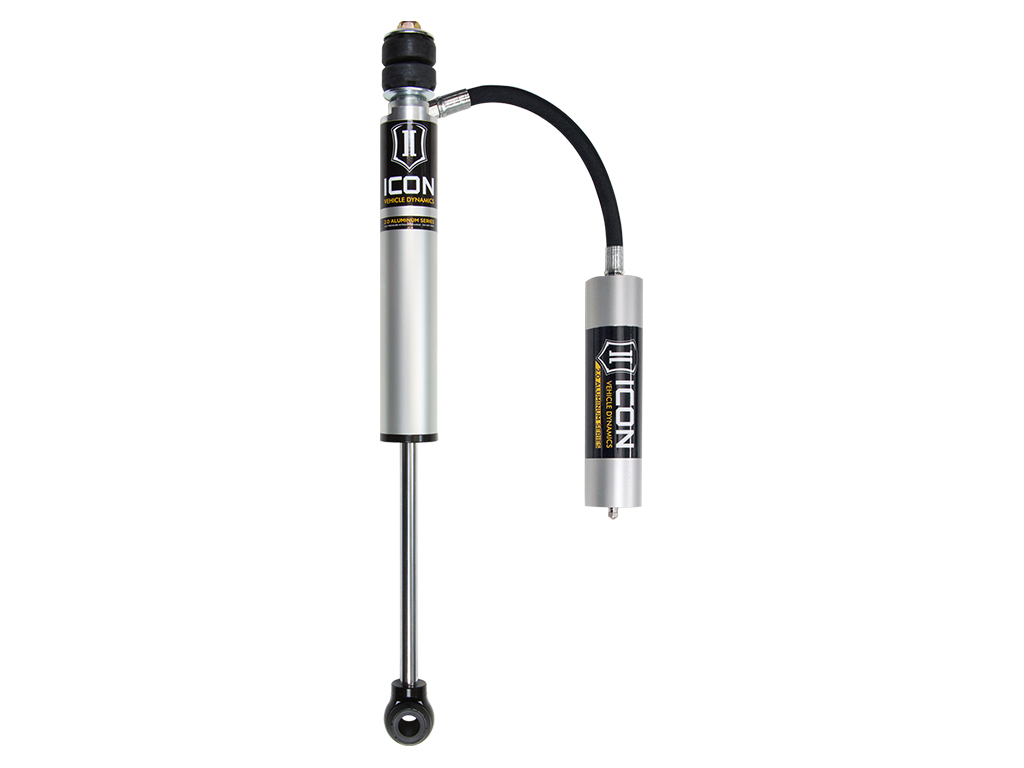

ICON Vehicle Dynamics Suspension Shock Absorber - 56524R

Name: ICON Vehicle Dynamics Suspension Shock Absorber - 56524R
SKU: 56524R
Price: 308.95 USD
Availability: OutOfStock

25 4RUNNER 0-3" PASS REAR 2.0 VS RR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 56524R

Old price: $324.40

Price: $308.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Aluminum Series shock to handle extra abuse and punishment your suspension will need to endure.

Note: APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

Products specifications

Attribute name	Attribute value
Reservoir Hose Inside Diameter	.25
Rod Diameter	.625
Lower Mount Sleeve Inside Diameter	.75
Minimum Ride Height Raising Distance	0
Shaft Diameter	0.625
AAP_UDA_22	1
Shock Absorber Bore Size	1.75
Bore Diameter	1.75
Lower Mount Sleeve Overall Length	1.825
Reservoir Diameter	2
Cylinder Outside Diameter	2
Body Diameter	2
Service Parts	202003 - 2.0 REMOTE RESI REBUILD KIT
Reservoir Hose Length	29
Maximum Ride Height Raising Distance	3
AAP_UDA_4	55
Reservoir Length	8
Cylinder Material	Aluminum
Body Material	Aluminum
Material	Aluminum, Steel
Finish	Anodized
Cylinder Finish	Anodized
Boot Color	Black
Bushing Color	Black
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Shaft Material	Chrome
AAP_UDA_12	EA
Lower Mount Type	Eyelet
Body Color	Gray
Cylinder Color	Gray
Adjustable Compression	No
Adjustable Ride Height	No
Self-Leveling	No
Mounting Hardware Included	No
Boot Included	No
Adjustable Rebound	No
Internal Rebound Spring	No
Coil Spring Insulator(s) Included	No
Includes Bump Stop	No
Hydraulic Lockout	No
Adjustable	No
Adjustable Damping	No
Dust Shield	NO
External Reservoir	No
Damping Type	Oil
Active or Passive Suspension	Passive
Grade Type	Performance
Bushing Material	Polyurethane, Rubber
Reservoir Type	Remote
Dust Shield Material	Rubber
Shock Absorber Body End Measuring Point	Shoulder of Stem
Internal Construction Type	Single Tube
Suspension Type	Spring
Upper Mount Type	Stem
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Gas Charged	Yes
Dust Shield Included	Yes
Remote Reservoir	Yes
Internal Rebound Bumper	Yes
Bushing Included	yes
California Prop 65 Warning	Yes
Dust Boot Included	Yes
Add-On Part	56523R - 25 4RUNNER 0-3" DRIVER REAR 2.0 VS RR, 252012 - -4 TO -10 HOSE SHIELD KIT, 52753 - 25 4RUNNER .75" DUAL RATE REAR SPRING KIT, 56100 - 07-14 FJ/03-24 4RUNNER/22-24 TUNDRA/23-24 SEQUOIA REAR SHIN GUARDS
Color	Silver, Black, Gray
Valving Type	Digressive, Linear
Country of Origin	US
Condition	New
