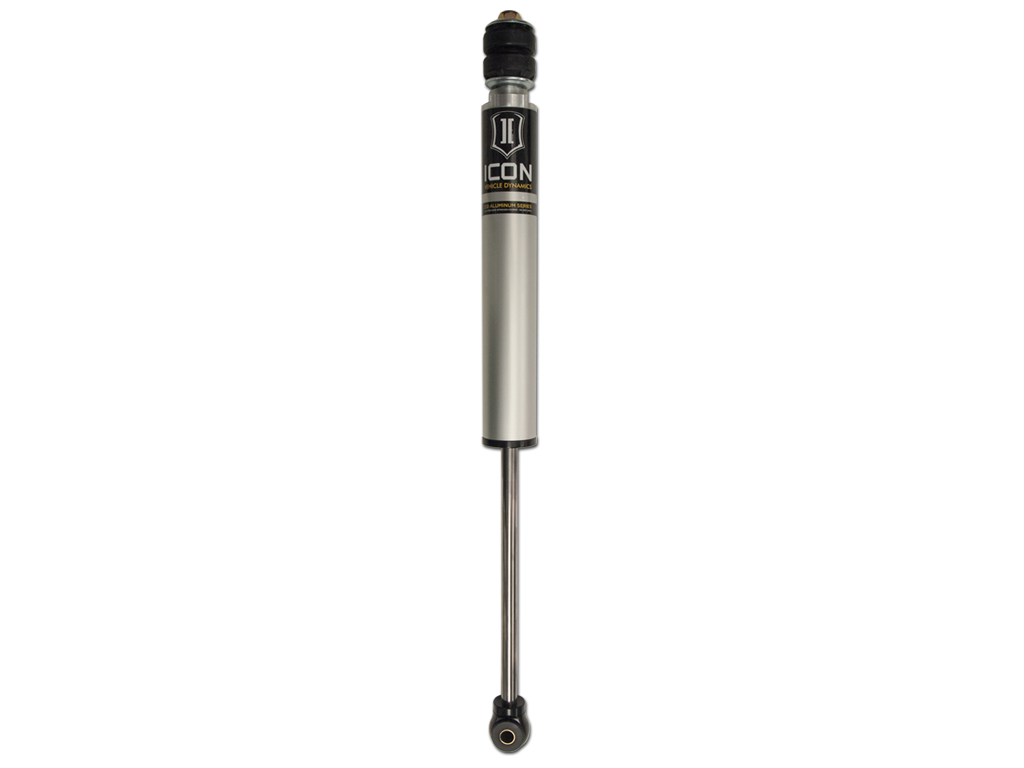

ICON Vehicle Dynamics Suspension Shock Absorber - 66514

05-25 FSD 4WD 7" FRONT 2.0 VS IR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 66514

Old price: $205.43

Price: $195.65

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Note: APPLICATION NOTE #1: Only fits 4WD models

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Material	Aluminum, Steel
Add-On Part	614700 - 2.0 SHOCK BOOT KIT (EACH)
Adjustable	No
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	No
Body Color	Gray
Body Diameter	2
Body Material	Aluminum
Boot Included	No
Bore Diameter	1.75
Bushing Color	Black
Bushing Included	yes
Bushing Material	Polyurethane
California Prop 65 Warning	Yes
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Coil-Over Springs Included	No
Coil Spring Insulator(s) Included	No
Color	Silver, Black, Gray
Configuration	Performance
Cylinder Color	Gray
Cylinder Finish	Anodized
Cylinder Material	Aluminum
Cylinder Outside Diameter	2
Damping Type	Oil
Dust Boot Included	No
Dust Shield	NO
Dust Shield Included	No
External Reservoir	No
Finish	Anodized
Gas Charged	Yes
Grade Type	Performance
Hydraulic Lockout	No
Includes Bump Stop	No
Internal Construction Type	Single Tube
Internal Rebound Bumper	Yes
Internal Rebound Spring	No
Lower Mount Type	Eyelet
Maximum Ride Height Raising Distance	7
Mounting Hardware Included	Yes
Quantity	1
Remote Reservoir	No
Reservoir Type	Internal
Rod Diameter	.625
Self-Leveling	No
Shaft Diameter	0.625
Shaft Material	Chrome
Shock Absorber Body End Measuring Point	Shoulder of Stem
Shock Absorber Bore Size	1.75
Shock Absorber Rod End Measuring Point	Center of Eylet
Suspension Type	Spring
Upper Mount Type	Stem
Valving Type	Digressive, Linear
Service Parts	254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252004 - ECONOMY NEEDLE CHARGING TOOL
Country of Origin	US
Condition	New
Quantity per Application	2
