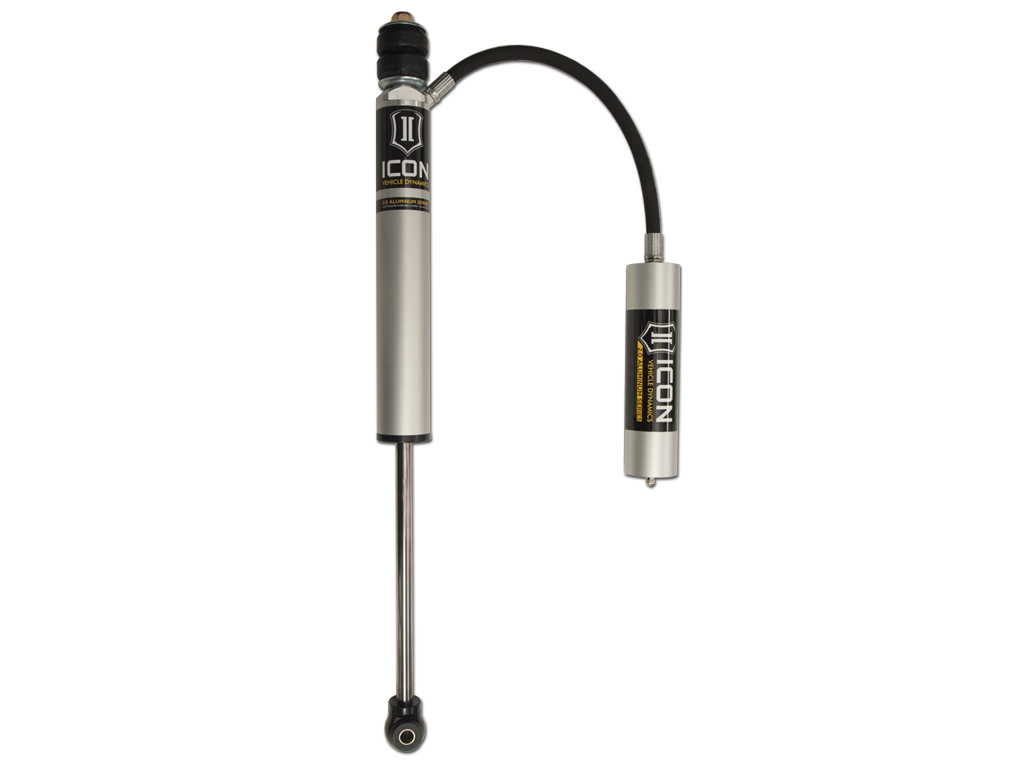

ICON Vehicle Dynamics Suspension Shock Absorber - 66514R

Name: ICON Vehicle Dynamics Suspension Shock Absorber - 66514R
SKU: 66514R
Price: 308.95 USD
Availability: OutOfStock

05-25 FSD 4WD 7" FRONT 2.0 VS RR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 66514R

Old price: $324.40

Price: $308.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Note: APPLICATION NOTE #1: Only fits 4WD models

Products specifications

Attribute name	Attribute value
Add-On Part	614700 - 2.0 SHOCK BOOT KIT (EACH), 252012 - -4 TO -10 HOSE SHIELD KIT, 614600 - 2.0 ICON BILLET RESI CLAMP KIT
Adjustable	No
Adjustable Compression	No
Adjustable Damping	No
Adjustable Rebound	No
Adjustable Ride Height	No
Body Color	Gray
Body Diameter	2
Body Material	Aluminum
Boot Included	No
Bore Diameter	1.75
Bushing Color	Black
Bushing Included	yes
Bushing Material	Polyurethane
AAP_UDA_12	EA
Color	Gray, Silver, Black
Cylinder Color	Gray
Dust Shield Included	No
Internal Rebound Spring	No
Coil Spring Insulator(s) Included	No
Includes Bump Stop	No
Hydraulic Lockout	No
Coil-Over Springs Included	No
Dust Boot Included	No
Dust Shield	NO
Damping Type	Oil
Grade Type	Performance
Configuration	Performance
Internal Construction Type	Single Tube
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Gas Charged	Yes
Internal Rebound Bumper	Yes
California Prop 65 Warning	Yes
External Reservoir	Yes
Reservoir Type	Remote
Rod Diameter	.625
Self-Leveling	No
Service Parts	254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Diameter	0.625
Shaft Material	Chrome
Shock Absorber Body End Measuring Point	Shoulder of Stem
Shock Absorber Bore Size	1.75
Shock Absorber Rod End Measuring Point	Center of Eylet
Suspension Type	Spring
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Cylinder Outside Diameter	2
Finish	Anodized
Cylinder Finish	Anodized
Upper Mount Type	Stem
Cylinder Material	Aluminum
Lower Mount Sleeve Inside Diameter	.56
Lower Mount Sleeve Overall Length	1.65
Lower Mount Type	Eyelet
Material	Steel, Aluminum
Maximum Ride Height Raising Distance	7
Minimum Ride Height Raising Distance	7
Mounting Hardware Included	Yes
Quantity	1
Remote Reservoir	Yes
Reservoir Diameter	2
Reservoir Hose Inside Diameter	.25
Reservoir Hose Length	12.4
Reservoir Length	8
Valving Type	Linear, Digressive
Country of Origin	US
Condition	New
Quantity per Application	2
