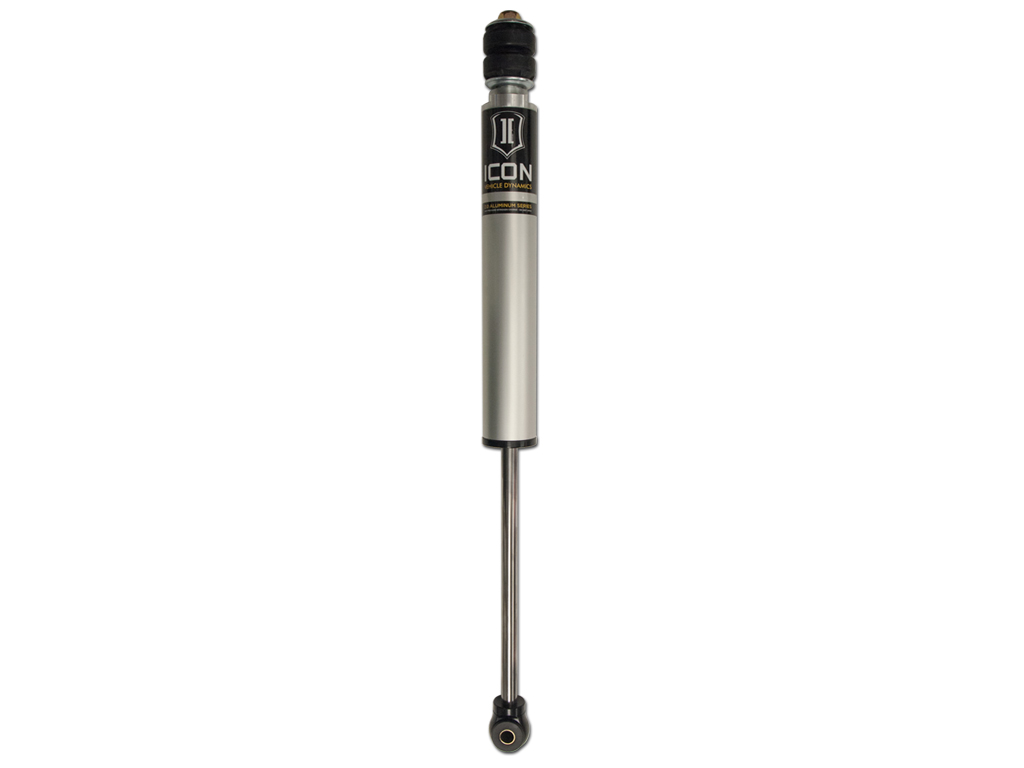

ICON Vehicle Dynamics Suspension Shock Absorber - 66518

23-25 FSD 4WD 4.5" FRONT 2.0 VS IR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 66518

Old price: $210.84

Price: $200.80

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For those using their vehicle in extreme off road situations, consider the ICON V.S. 2.5 Series shock to handle extra abuse and punishment your suspension will need to endure.

Note: APPLICATION NOTE #1: Only fits 4WD models

Products specifications

Attribute name	Attribute value
AAP_UDA_12	EA
Body Diameter	2
Body Material	Aluminum
Boot Included	No
AAP_UDA_22	1
AAP_UDA_4	55
Active or Passive Suspension	Passive
Adjustable Compression	No
Adjustable Rebound	No
Adjustable Ride Height	No
Body Color	Gray
Adjustable Damping	No
Cylinder Color	Gray
Cylinder Finish	Anodized
Cylinder Material	Aluminum
Cylinder Outside Diameter	2
Damping Type	Oil
Dust Boot Included	No
Dust Shield	NO
Dust Shield Included	No
External Reservoir	No
Finish	Anodized
Gas Charged	Yes
Grade Type	Performance
Hydraulic Lockout	No
Includes Bump Stop	No
Internal Construction Type	Single Tube
Internal Rebound Bumper	Yes
Internal Rebound Spring	No
Lower Mount Type	Eyelet
Material	Steel, Aluminum
Maximum Ride Height Raising Distance	6
Mounting Hardware Included	Yes
Quantity	1
Remote Reservoir	No
Reservoir Type	Internal
Rod Diameter	.625
Self-Leveling	No
Service Parts	252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252004 - ECONOMY NEEDLE CHARGING TOOL, 254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL
Shaft Diameter	0.625
Bore Diameter	1.75
Bushing Color	Black
Bushing Included	yes
Bushing Material	Polyurethane
Coil-Over Springs Included	No
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
California Prop 65 Warning	Yes
Shaft Material	Chrome
Shock Absorber Body End Measuring Point	Shoulder of Stem
Shock Absorber Bore Size	1.75
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Upper Mount Type	Stem
Valving Type	Linear, Digressive
Color	Silver, Black, Gray
Country of Origin	US
Condition	New
Quantity per Application	2
