ICON Vehicle Dynamics Suspension Shock Absorber - 76550R

Name: ICON Vehicle Dynamics Suspension Shock Absorber - 76550R
SKU: 76550R
Price: 308.95 USD
Availability: OutOfStock

15-24 GM CANYON/COLORADO 0-2" REAR 2.0 VS RR

Manufacturer: ICON Vehicle Dynamics

Manufacturer part number: 76550R

Old price: $324.40

Price: $308.95

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

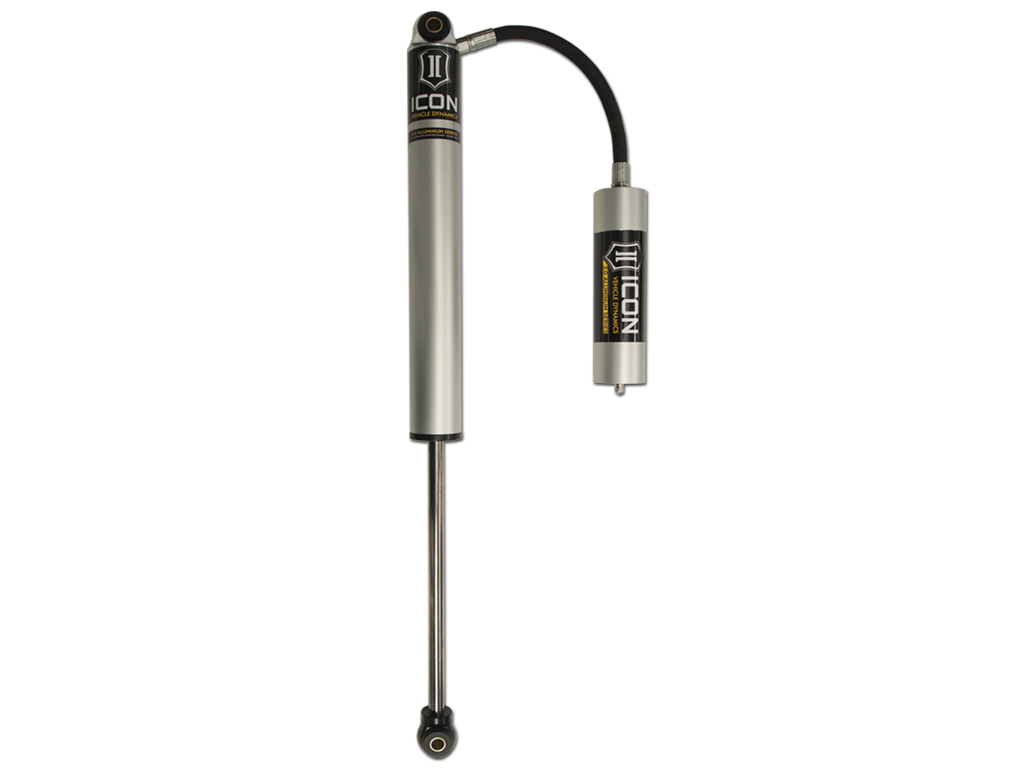

ICON Vehicle Specific (V.S.) 2.0 Aluminum Series shock absorbers are the ultimate in cost effective upgrades, specifically tailored by ICON engineers for your application. The V.S. 2.0 Aluminum Series shocks are a high-quality upgrade for the everyday street driver and weekend warrior looking for improved on and off-road performance. Remote reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. Like all ICON shock absorbers, V.S. 2.0 Aluminum Series shocks are fully rebuildable and re-tunable. For those using their vehicle in extreme off-road situations, consider the ICON V.S. 2.5 Series shocks to handle extra abuse and punishment your suspension will need to endure.

Note: TECH NOTE: Will not fit Chevrolet Colorado ZR2 or GMC Canyon AT4X

Products specifications

Attribute name	Attribute value
Adjustable Rebound	No
Adjustable Ride Height	No
Body Color	Gray
Body Diameter	2
Body Material	Aluminum
Boot Included	No
Adjustable Compression	No
Add-On Part	614600 - 2.0 ICON BILLET RESI CLAMP KIT, 614700 - 2.0 SHOCK BOOT KIT (EACH)
Active or Passive Suspension	Passive
AAP_UDA_4	55
AAP_UDA_22	1
AAP_UDA_12	EA
Adjustable Damping	No
Bore Diameter	1.75
Bushing Color	Black
Bushing Included	yes
Bushing Material	Polyurethane
Shock Absorber Bore Size	1.75
Maximum Ride Height Raising Distance	2
Cylinder Outside Diameter	2
Material	Aluminum, Steel
Finish	Anodized
Cylinder Finish	Anodized
Shock Absorber Rod End Measuring Point	CENTER OF EYELET
Shock Absorber Body End Measuring Point	CENTER OF EYELET
Lower Mount Type	Eyelet
Upper Mount Type	Eyelet
Cylinder Color	Gray
Self-Leveling	No
Mounting Hardware Included	No
Dust Shield Included	No
Rod Diameter	.625
Shaft Diameter	0.625
Internal Rebound Spring	No
Internal Construction Type	Single Tube
California Proposition 65	WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Gas Charged	Yes
Remote Reservoir	Yes
Internal Rebound Bumper	Yes
California Prop 65 Warning	Yes
External Reservoir	Yes
Includes Bump Stop	No
Hydraulic Lockout	No
Coil-Over Springs Included	No
Dust Boot Included	No
Dust Shield	NO
Damping Type	Oil
Grade Type	Performance
Color	Silver, Gray, Black
Valving Type	Digressive, Linear
Cylinder Material	Aluminum
Service Parts	254101G - 1/2 GALLON ICON PERFORMANCE SHOCK OIL, 202003 - 2.0 REMOTE RESI REBUILD KIT, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0)
Shaft Material	Chrome
Country of Origin	US
Condition	New
Quantity per Application	2
