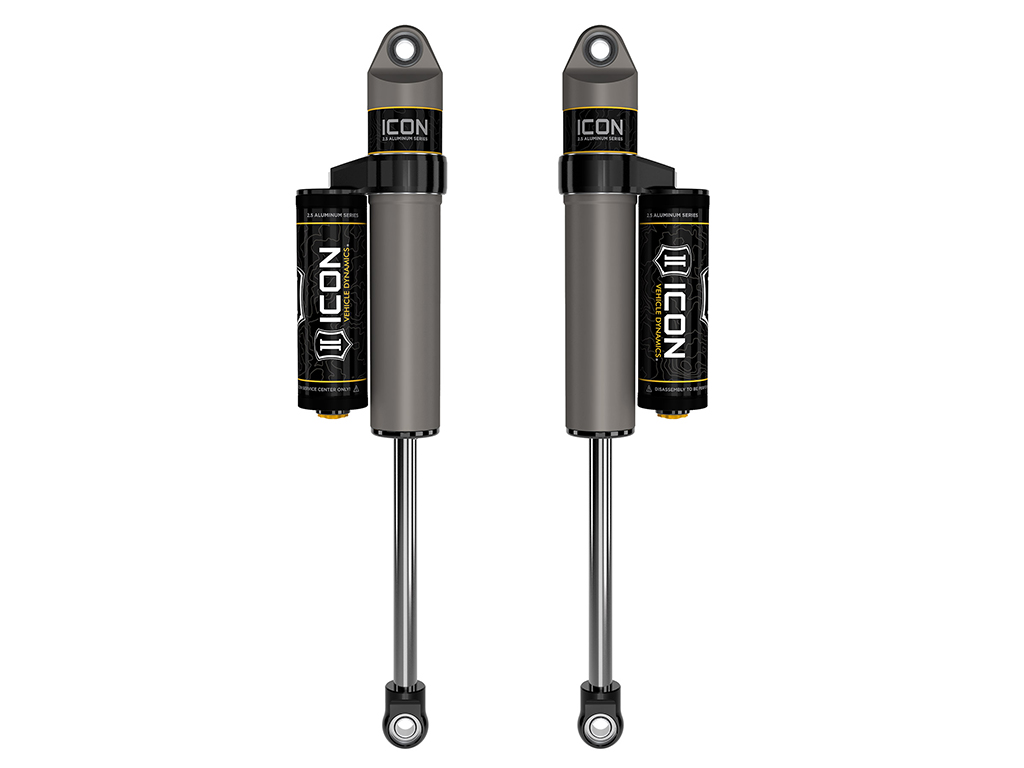

ICON Vehicle Dynamics Suspension Shock Absorber Set - 97721P

Check if this part fits your vehicle Select your vehicle to confirm fitment before you buy.

Select vehicle
21-25 F150 4WD TREMOR REAR 2.5 VS PB PAIR
Manufacturer: ICON Vehicle Dynamics
Manufacturer part number: 97721P
Old price: $1,304.67
$1,242.55
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. Like all ICON'S Shock Absorbers, V.S. 2.5 Aluminum Series shocks are 100% rebuildable and 100% revalveable. For piggyback and specific remote reservoir applications, ICON'S unique use of a 6061 billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. If you are looking for a more user defined tune, consider looking into the Compression Damping Control Valve (CDCV) shocks.

Note: APPLICATION NOTE #55: Shocks are fully serviceable. Lift heights indicated are for a stock equipped vehicle.

Products specifications

Attribute name Attribute value
Adjustable Compression No
Adjustable Damping No
Adjustable Rebound No
Boot Included No
Bore Diameter 2.25
California Prop 65 Warning Yes
California Proposition 65 WARNING: This product contains chemicals known to the State of California to cause cancer, and birth defects or other reproductive harm.
Cylinder Color Grey
Cylinder Diameter 2.5
Cylinder Material Aluminum
Damping Type Oil
External Reservoir Yes
Gas Charged Yes
Grade Type Performance
Lower Mount Type Eyelet
Mounting Hardware Included Yes
Reservoir Type Piggyback
Shaft Diameter 0.875
Shaft Material Chrome
Shock Absorber Body End Measuring Point Center of Eylet
Shock Absorber Rod End Measuring Point Center of Eylet
Tube Outside Diameter 2.5
Upper Mount Type Eyelet
Valving Type Digressive
Adjustable No
Active or Passive Suspension Passive
AAP_UDA_4 55
AAP_UDA_22 1
AAP_UDA_12 EA
Service Parts 257341 - 7/8 SHAFT 15.85 OAL, 11.00 TRAVEL, 252002 - UNIVERSAL SPANNER WRENCH (2.0/2.5/3.0), 252001 - 2.5 FIXED SPANNER WRENCH, 252003 - SEAL INSTALL TOOL 2.5/3.0, 254100G - 1 GALLON ICON PERFORMANCE SHOCK OIL, 191016 - 7.5" FINNED RESI UPGRADE KIT, 252011 - 2.5 PIGGYBACK/REMOTE RESI/BYPASS REBUILD KIT
Country of Origin US
Condition New
🚗 Compatible with
5 vehicles are compatible with this product · 2021–2025
