SBC Domed Piston Set 4.165 Bore +10.8cc

Name: SBC Domed Piston Set 4.165 Bore +10.8cc
SKU: 182062
Price: 956.37 USD
Availability: OutOfStock

Manufacturer: JE Pistons

Manufacturer part number: 182062

Old price: $1,076.99

Price: $956.37

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

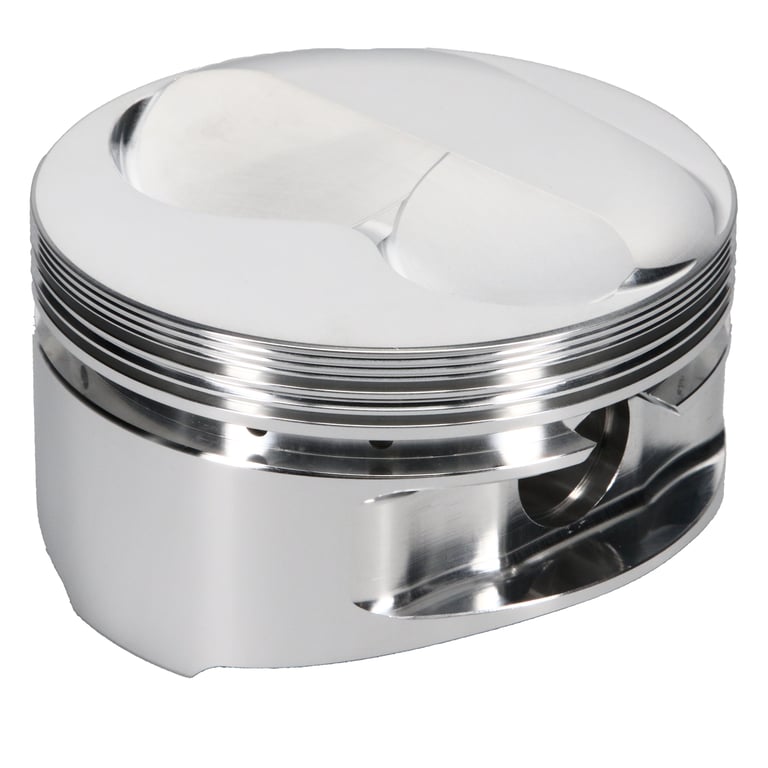

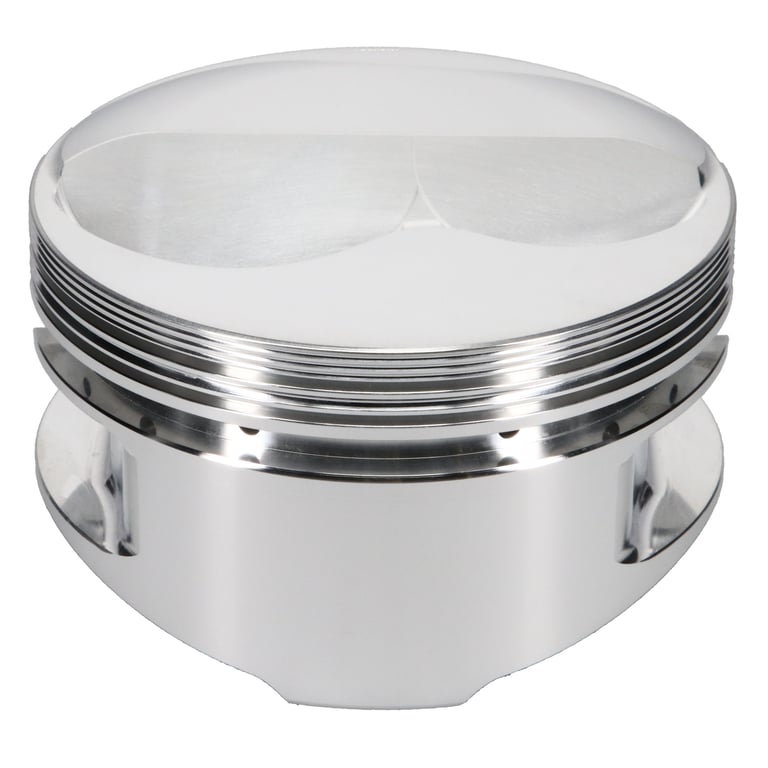

Piston - 400 Series Small Block Dome - Forged - Dome - 4.165 in Bore - 1.125 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Plus 10.8 cc - Small Block Chevy - Set of 8

Manufacturer Part #: 182062

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	CHEVROLET 23 DEG 20/30
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.165
Sub Type	400 Series Small Block Dome
Piston Head Type	Dome
Compression Height	1.125
Unit	Set of 8
Piston Volume	10.80
Material	2618
Piston Quantity	8
Specifications	Forged, Dome, 4.165 in Bore, 1.125 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Plus 10.8 cc, Small Block Chevy
Forging Type	Round
Piston Average Weight	460
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.218
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.750
Wrist Pin Wall Thickness	0.150
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.165 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
