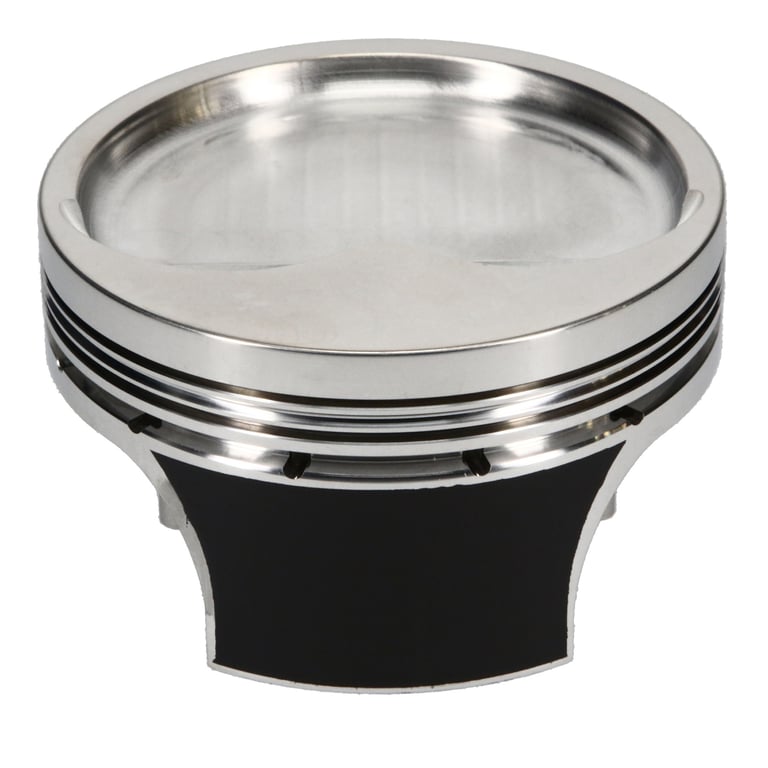

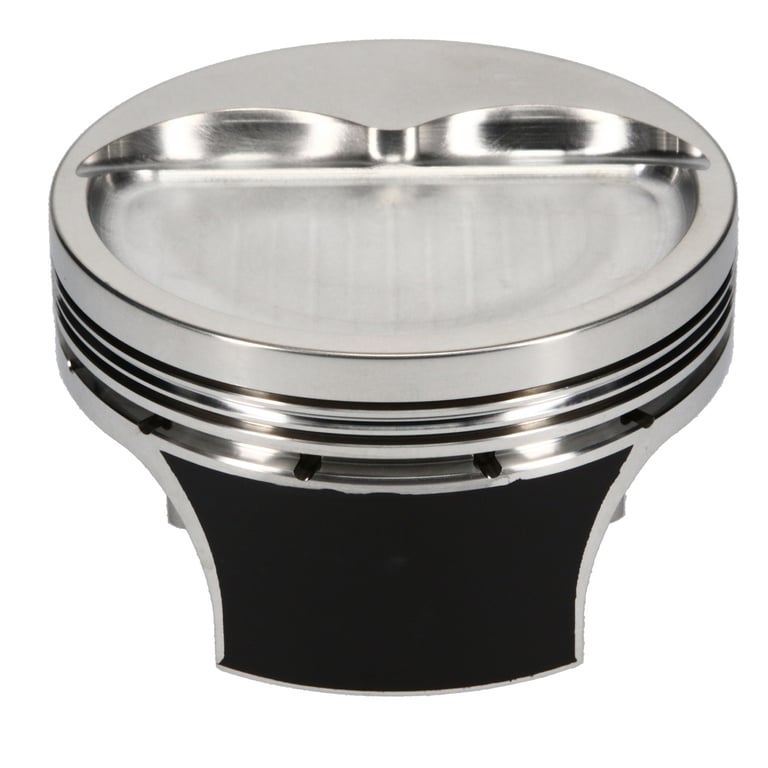

JE Pistons Engine Piston Kit - 271061

Name: JE Pistons Engine Piston Kit - 271061
SKU: 271061
Price: 443.75 USD
Availability: InStock

Disc

Manufacturers: JE Pistons , McLeod

$443.75

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Disc: 600 Series Ceramic/Ceramic Facing:11" x 1 X 24 Spline

Products specifications

Attribute name	Attribute value
Piston Series	SRP Pro 4032
Cylinder Head	CHEVROLET 23 DEG 20/30
Bore Diameter	4.030
Piston Head Type	Dish
Compression Height	1.125
Piston Volume	-16.00
Material	4032
Forging Type	FSR
Piston Average Weight	376
Ring Set Included	Yes
Top Compression Ring Thickness	0.0480
Category Hierarchy	Auto>All Piston Kits
Product Type	Engine Piston Kit
Wrist Pin Wall Thickness	0.150
Wrist Pin Length	2.250
Wrist Pin Outer Diameter	0.927
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Oil Ring Thickness	0.149
Second Compression Ring Thickness	0.0600
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.030 IN
EBAY Category ID	33623
Clutch Usage	Performance
Disc Diameter (in.)	11.000
Hub Style	Sprung
Disc Material	Ceramic
Input Shaft Diameter (in.)	1.000
Input Spline Quantity	24
Quantity	Sold Individually
Disc Style	Segmented
