JE Pistons Engine Piston Kit - 301940

Name: JE Pistons Engine Piston Kit - 301940
SKU: 301940
Price: 899.99 USD
Availability: OutOfStock

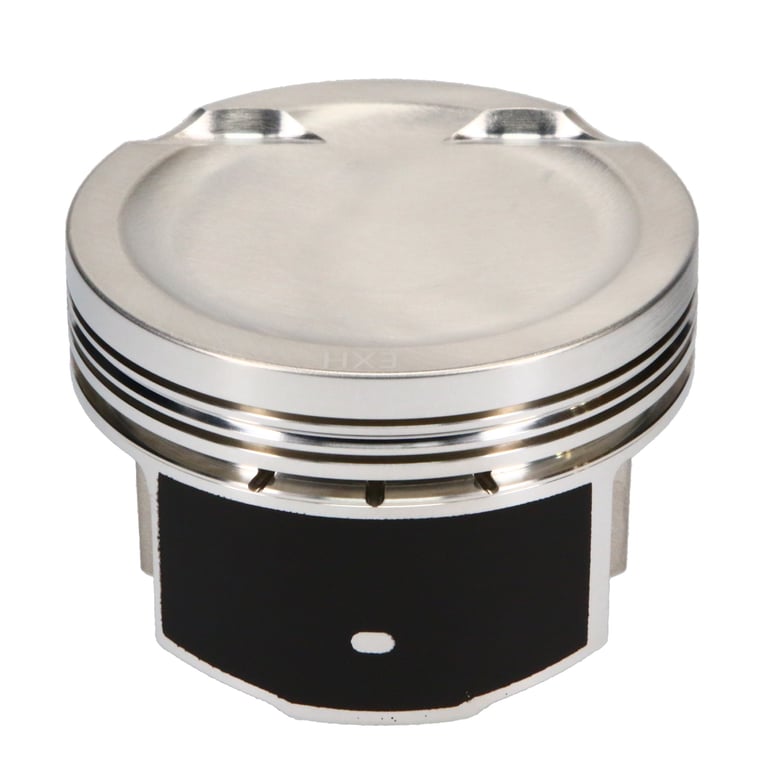

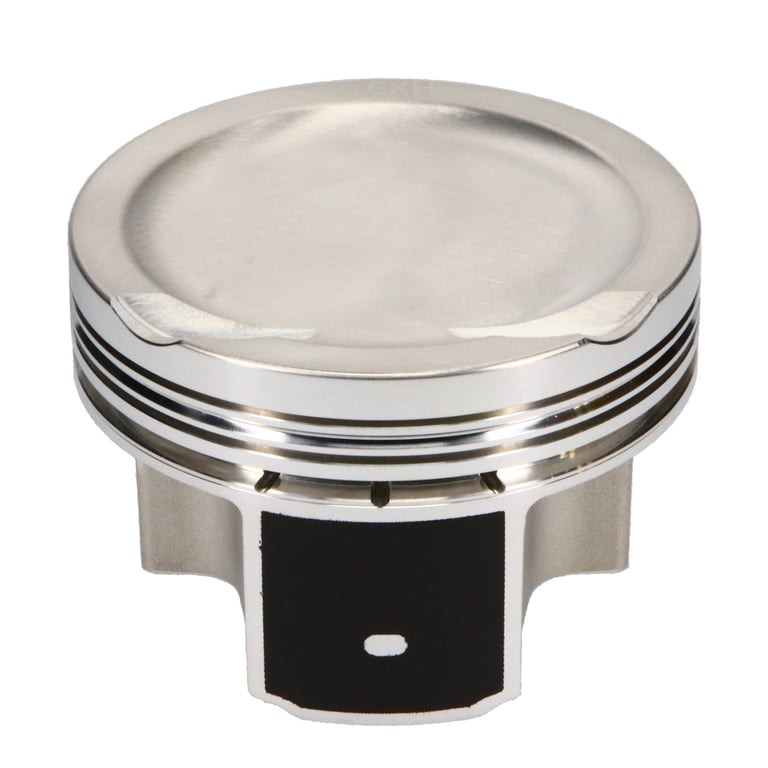

Piston Set, 2618, Inv Dome/Dish, 3.287 Bore, 1.165 CD, 0.787 Pin, Set of 4.

Manufacturer: JE Pistons

Manufacturer part number: 301940

$899.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Volkswagen 2.0L 9A 16V 90-93

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Category Hierarchy	Auto>All Piston Kits
Cylinder Head	9A
Bore Diameter	83.50
Piston Head Type	Dish
Compression Height	1.165
Piston Volume	-15.70
Material	2618, Steel
Piston Quantity	4
Forging Type	FSR
Piston Average Weight	281
Ring Set Included	Yes
Top Compression Ring Thickness	0.0400
Second Compression Ring Thickness	0.0480
Oil Ring Thickness	0.111
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.787
Wrist Pin Length	2.250
Wrist Pin Wall Thickness	0.180
Product Type	Engine Piston Kit
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg, WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Bore Diameter - Web	83.50 MM
EBAY Category ID	33623
Lower Rear (Inches)	4
Color	Grey
Finish	Grey Powder Coat
Prop 65 Warning Label	Warning - Both Cancer and Reproduction.JPG
Country of Origin	US, CN
Condition	New
