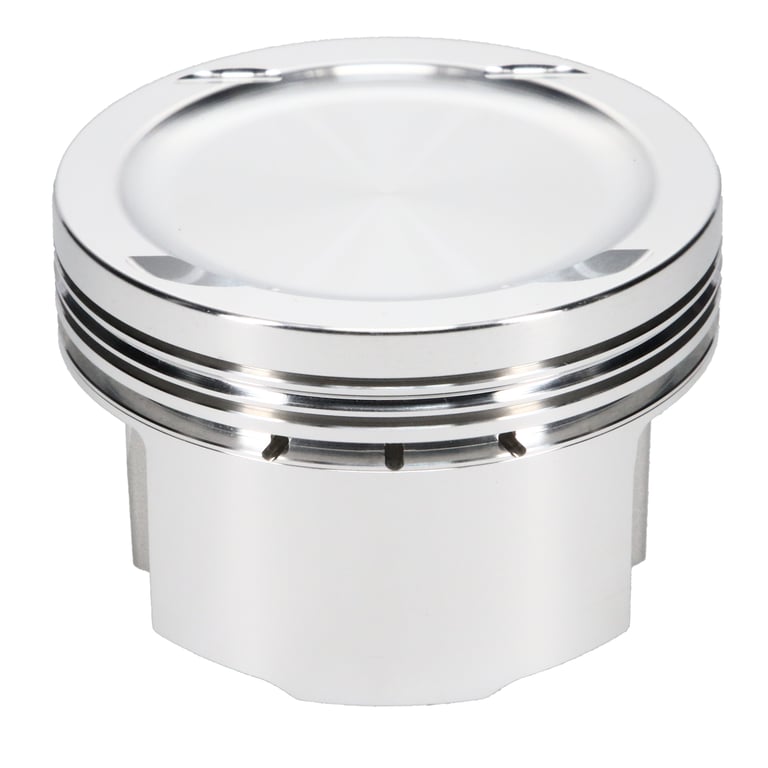

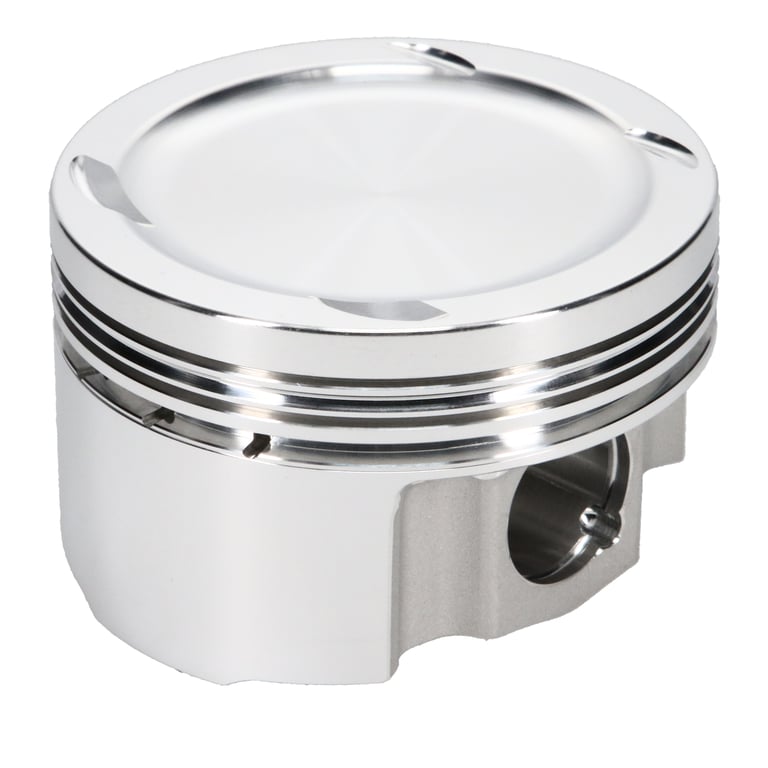

JE Pistons Engine Piston Kit - 312404

Piston Set, 2618, Inv Dome/Dish, 3.248 Bore, 1.291 CD, 0.866 Pin, Set of 5.
Manufacturer: JE Pistons
Manufacturer part number: 312404
$1,124.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Fiat 2.0L Turbo 20V

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name Attribute value
Category Hierarchy Auto>All Piston Kits
Product Type Engine Piston Kit
Wrist Pin Wall Thickness 0.150
Wrist Pin Length 2.250
Wrist Pin Outer Diameter 0.866
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Oil Ring Thickness 0.111
Second Compression Ring Thickness 0.0480
Top Compression Ring Thickness 0.0400
Ring Set Included Yes
Piston Average Weight 300
Forging Type FSR
Piston Quantity 5
Material 2618
Piston Volume -8.00
Compression Height 1.291
Piston Head Type Dish
Bore Diameter 82.50
Cylinder Head FIAT COUPE 2.0
Piston Series JE Pistons
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Bore Diameter - Web 82.50 MM
EBAY Category ID 33623
Country of Origin US
Condition New
