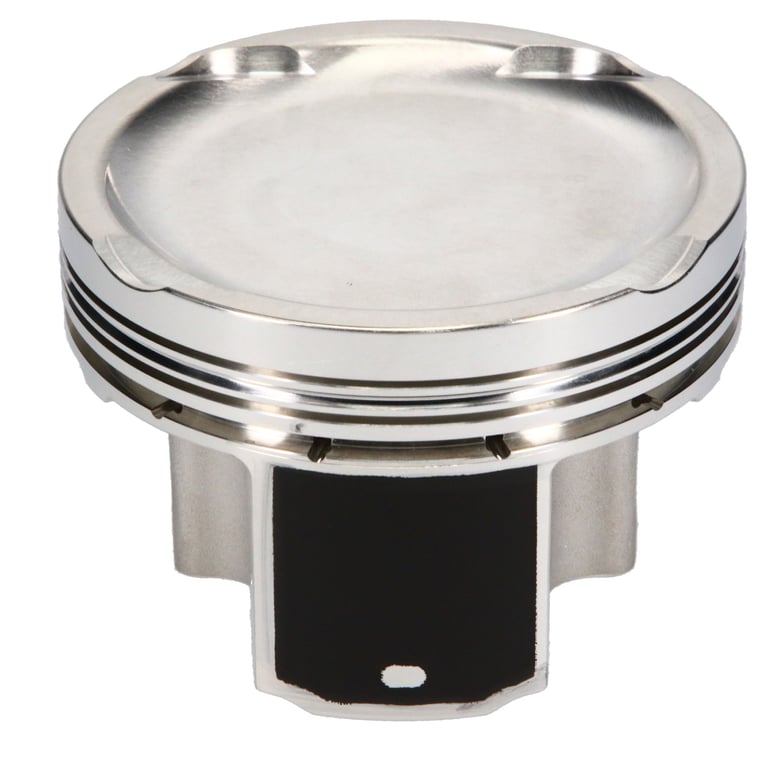

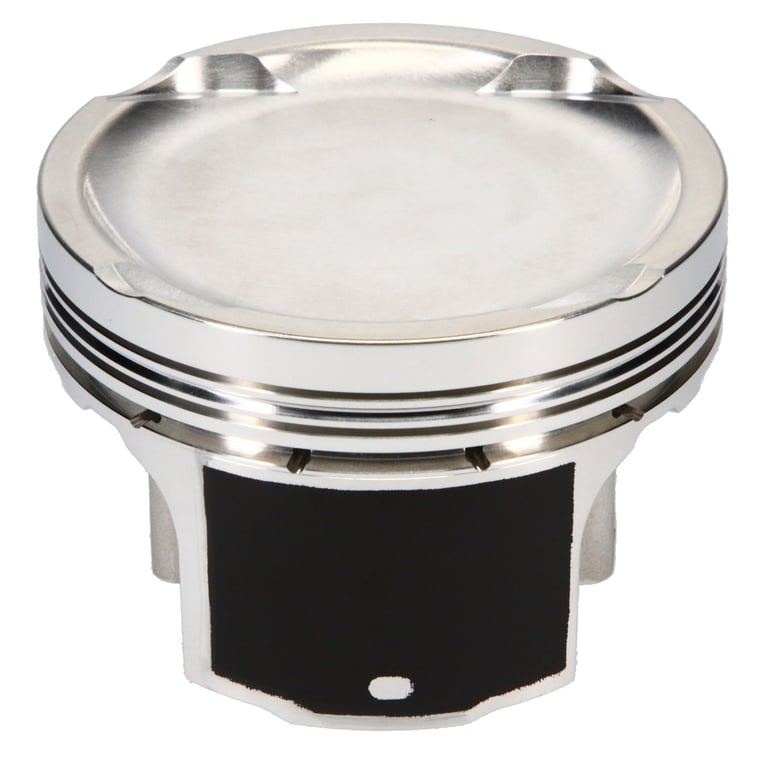

JE Pistons Engine Piston Kit - 312408

Piston Set, 2618, Inv Dome/Dish, 3.593 Bore, 1.604 CD, 0.945 Pin, Set of 4.
Manufacturer: JE Pistons
Manufacturer part number: 312408
$899.99
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for European, import and sport compact applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From drift track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Ford Cosworth N5B

Note: JE designs are specifically engineered for extreme upplications up to, and including, professional competition

Products specifications

Attribute name Attribute value
Wrist Pin Material 5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter 0.945
Oil Ring Thickness 0.159
Wrist Pin Length 2.500
Wrist Pin Wall Thickness 0.140
Product Type Engine Piston Kit
Second Compression Ring Thickness 0.0600
Category Hierarchy Auto>All Piston Kits
Piston Series JE Pistons
Cylinder Head COSWORTH
Bore Diameter 91.25
Piston Head Type Dish
Compression Height 1.604
Piston Volume -20.00
Material 2618
Piston Quantity 4
Forging Type Round
Piston Average Weight 413
Ring Set Included Yes
Top Compression Ring Thickness 0.0600
Prop 65 (C, R or CR) CR
Prop 65 Yes/No Yes
Prop 65 - Short Label prop65warninglabel.jpg
Bore Diameter - Web 91.25 MM
EBAY Category ID 33623
Country of Origin US
Condition New
