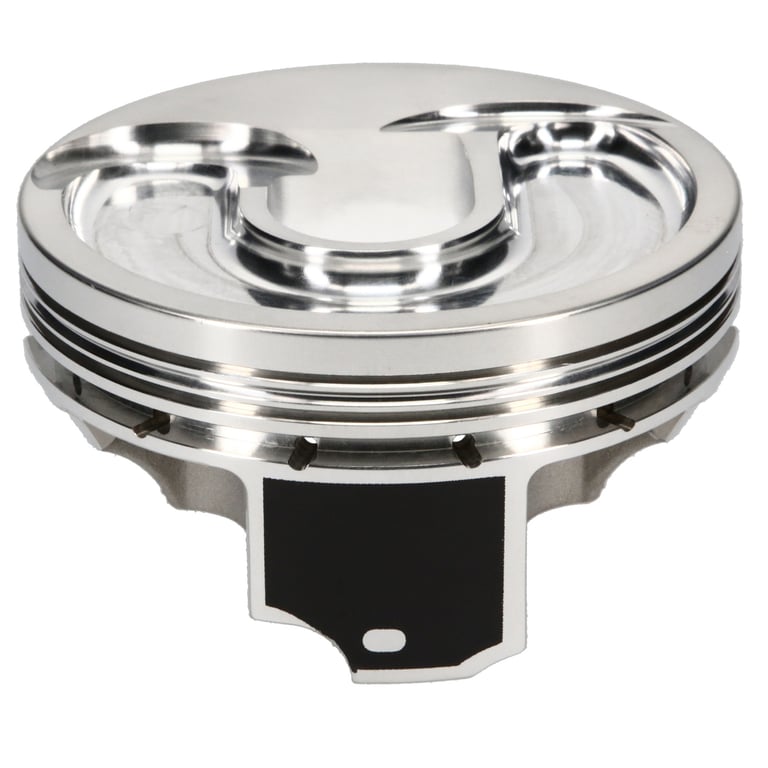

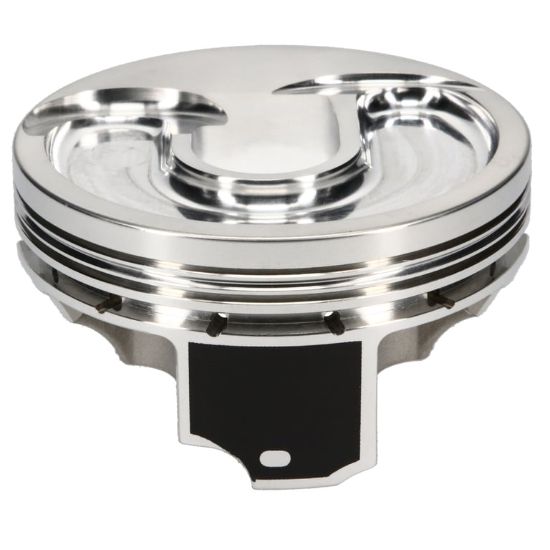

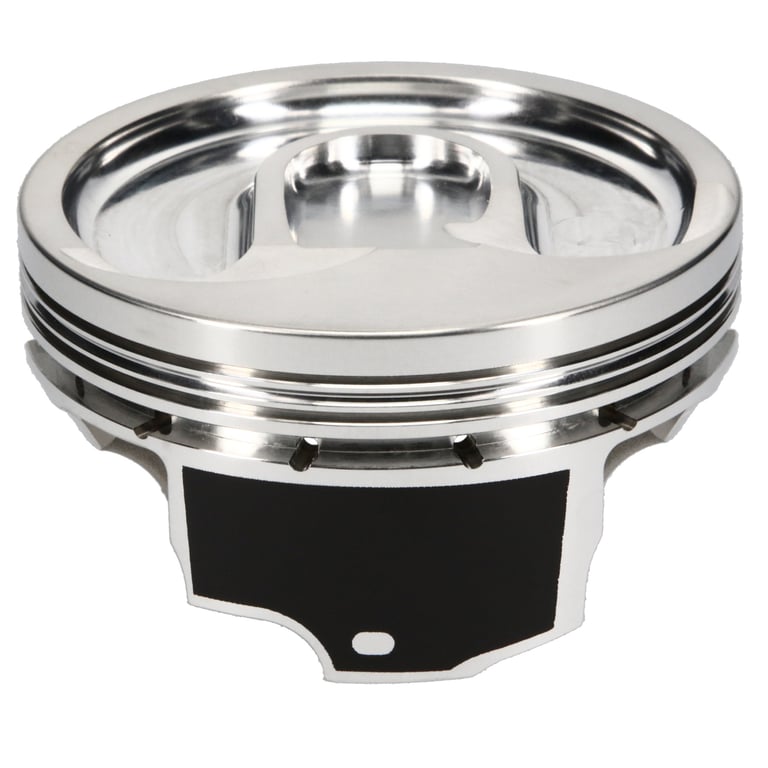

JE Pistons Engine Piston Kit - 353909

Name: JE Pistons Engine Piston Kit - 353909
SKU: 353909
Price: 949.99 USD
Availability: OutOfStock

Piston Set, 2618, Inv Dome/Dish, 4.070 Bore, 1.320 CD, 0.945 Pin, Set of 8.

Manufacturer: JE Pistons

Manufacturer part number: 353909

$949.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

As the leader in forged racing pistons, JE Pistons has applied over 75 years of experience to its wide range of premium forged pistons for domestic applications. Engineered, forged and machined 100% in the USA, JE Pistons are designed for each specific engine and racing application to provide the ultimate combination of durability and performance. From dirt track to drag strip, JE Pistons? performance is proven in victory lane time and time again. Equip your engine with the best in forged pistons.

Application: Chevrolet LT4 Gen V

Note: These pistons utilize our dedicated Forged Side Relief (FSR) forging that was specifically designed to increase strength.

Products specifications

Attribute name	Attribute value
Ring Set Included	No
Top Compression Ring Thickness	0.0480
Second Compression Ring Thickness	0.0600
Oil Ring Thickness	0.119
Wrist Pin Included	Yes
Wrist Pin Part Number	945-2250-18-52C
Wrist Pin Outer Diameter	0.945
Wrist Pin Length	2.250
Wrist Pin Wall Thickness	0.180
Wrist Pin Retainer Included	Yes
Wrist Pin Retainer Part Number	927-073-MW
Engine Displacement	377
Engine Stroke	3.622
Connecting Rod Length	6.098
Deck Height	9.240
Ring Set Thickness	1.20 MM x 1.50 MM x 3.00 MM
Oversized	Yes
Ring Set - Recommended	JG31F8-4070-0
OEM Bore Diameter	4.065
Piston Sub-Series	LT4 (Gen V)
Engine Family	LS
Oversized Amount	0.005
Compression Ratio	10.00:1 / 65.50 CC Head
Product Type	Engine Piston Kit
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Cylinder Head	GEN 5 LT4
Bore Diameter	4.070
Piston Head Type	Dish
Compression Height	1.320
Piston Volume	6.50
Material	2618
Piston Quantity	8
Forging Type	FSR
Bore Diameter - Web	4.070 IN
EBAY Category ID	33623
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Country of Origin	US
Condition	New
