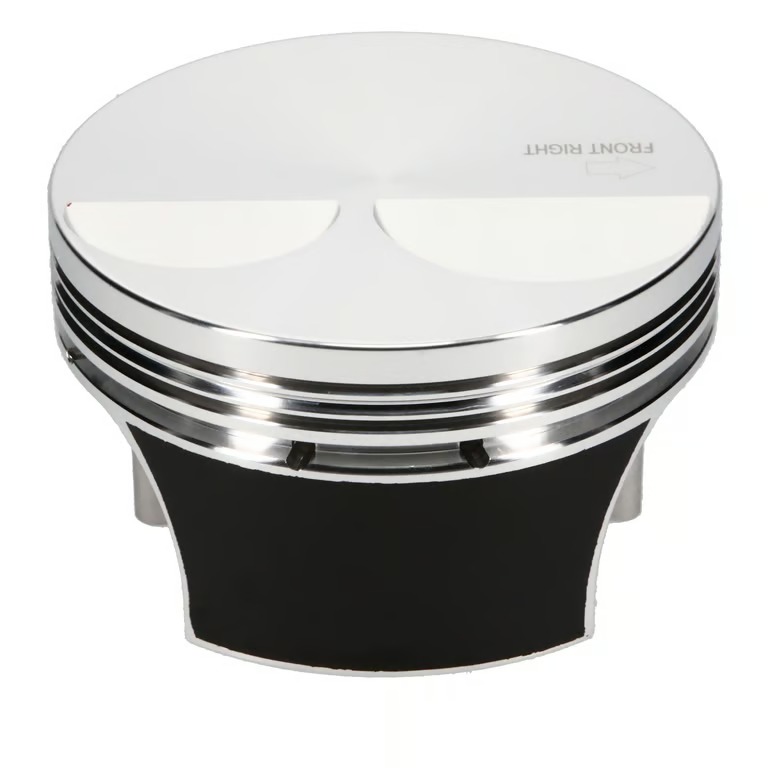

JE Pistons Engine Piston Kit - 378036

Name: JE Pistons Engine Piston Kit - 378036
SKU: 378036
Price: 949.99 USD
Availability: OutOfStock

SRP PRO 2618 - FORD MODULAR 4.6L 2V - 3.572/-17CC 3.572/3.543/5.933/1.220

Manufacturer: JE Pistons

Manufacturer part number: 378036

$949.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

JE Pistons SRP Pro 2618 line expands on the premium features of the SRP Pro series with the addition of extremely strong, 2618 forged aluminum material. All piston kits include gas-nitrided, carbon-steel pistons rings, pins, and locks. SRP Pro 2618 pistons maximize piston strength and maximize value, whether you’re building rowdy small block or a flame-spitting big block. As with all JE Pistons products, SRP pistons are made 100% in the USA.

Products specifications

Attribute name	Attribute value
Exhaust Diameter	1.500
Exhaust Angle	11
Stroke	3.543
Rod Length	5.933
Top Groove Width	0.04800
2nd Groove Width	0.06000
Oil Groove Width	0.11900
Piston To Wall Clearance	-0.004
Compression Height	1.220
Bore Diameter - Web	3.5720
Exhaust Depth	S
Intake Angle	11
Oversized Amount	0.020
Intake Diameter	1.800
Wrist Pin Outer Diameter	.866
Wrist Pin Wall Thickness	0.180
Wrist Pin Length	2.500
Piston Volume	-17
Piston Average Weight	Call
Engine Stroke	3.543
Connecting Rod Length	5.933
Intake Depth	.150
Category Hierarchy	Auto>SRP Pistons>SRP Pro 2618
Engine Detail	4.6L 2V
Product Type	Engine Piston Kit
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Piston Series	SRP Pro 2618
Engine Family	Modular
Bore Diameter	3.5720
Forging Type	FSR
Piston Head Type	Inv Dome/Dish
Material	2618
Piston Quantity	8
Ring Set Included	Y
Top Compression Ring Thickness	0.048
Second Compression Ring Thickness	0.060
Oil Ring Thickness	0.119
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
EBAY Category ID	33623
Country of Origin	US
Condition	New
