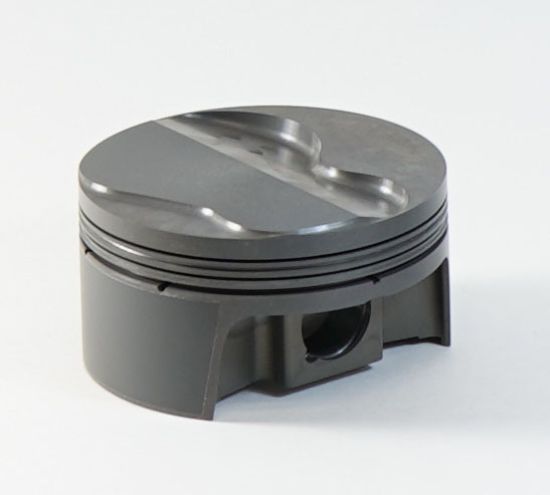

Mahle Motorsport Engine Piston - 197719265-1

Name: Mahle Motorsport Engine Piston - 197719265-1
SKU: 197719265-1
Price: 92.69 USD
Availability: InStock

Piston (ea) - LS 6.0L & 6.2L DOME

Manufacturer: Mahle Motorsport

Manufacturer part number: 197719265-1

Old price: $100.75

Price: $92.69

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

376cid 4.065 x 1.314CH, 3.622stroke,6.125rod,0.927pin,2.0cc,494g,11.1CR, 4032, SINGLE PISTON

Note: Replacement piston for kit 197719265, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Pin Wall Thickness	0.168
LCR Thickness	1.0mm
UCR Thickness	1.0mm
Piston Ring Thickness	1.0mm, 1.0mm, 2.0mm
Pin Mass	118g
Crown Volume	2.0cc
OCR Thickness	2.0mm
Pin Diameter	23.55mm
Piston Mass	494g
Pin Length	58.1mm
LCR Material	9254 Steel
UCR Material	9254 Steel
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
Piston Style	Dome, w/ 2 valve reliefs
Pin Style	Floating
Material	Forged, 4032
UCR Coating	HV385
Clips Included	N
Pins Included	N
Rings Included	N
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
File Fit	Y
Prop 65 Yes/No	Yes
Country of Origin	US
Quantity per Application	8
