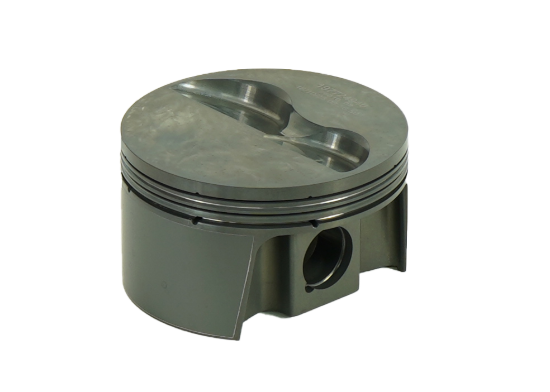

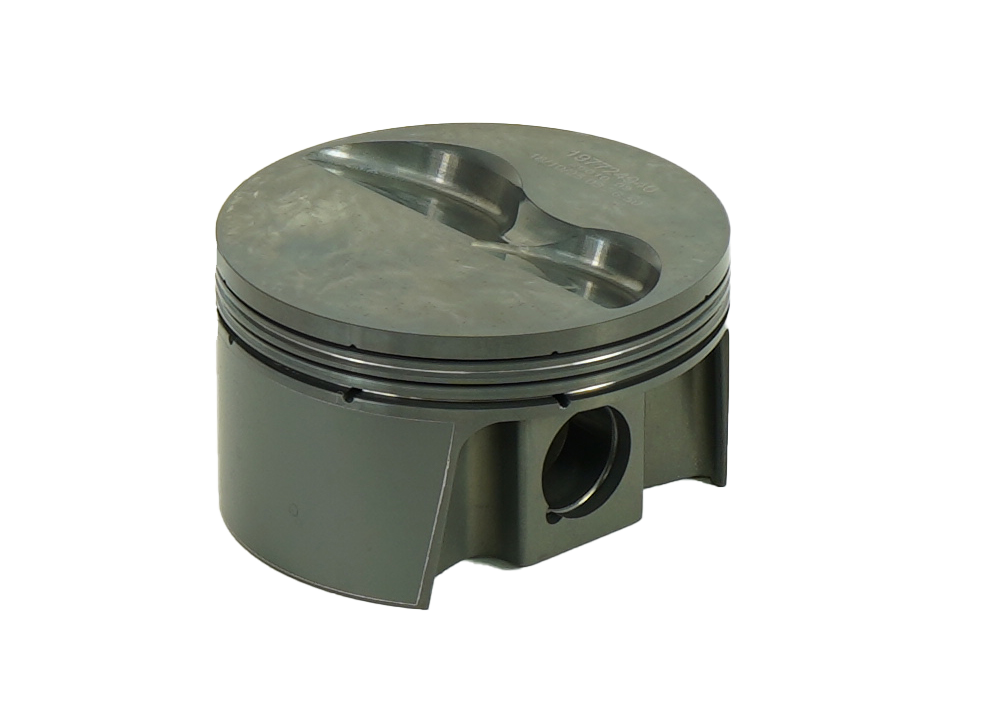

Mahle Motorsport Engine Piston - 197753355-1

Name: Mahle Motorsport Engine Piston - 197753355-1
SKU: 197753355-1
Price: 111.70 USD
Availability: InStock

Piston (ea) - SMALL BLOCK CHEVY 21 Deg FLAT TOP

Manufacturer: Mahle Motorsport

Manufacturer part number: 197753355-1

Old price: $121.41

Price: $111.70

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

380cid 4.155 x 1.125CH, 3.500stroke,6.125rod,0.927pin,-8.9cc,446g,12.6CR, 2618, SINGLE PISTON

Note: Replacement piston for kit 197753355, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Crown Volume	-8.9cc
Pin Wall Thickness	0.168
LCR Thickness	1.0mm
UCR Thickness	1.0mm
Piston Ring Thickness	1.0mm, 1.0mm, 2.0mm
Pin Mass	118g
OCR Thickness	2.0mm
Pin Diameter	23.55mm
Piston Mass	446g
Pin Length	58.1mm
LCR Material	9254 Steel
UCR Material	9254 Steel
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
Piston Style	Flattop, w/ 2 valve reliefs
Pin Style	Floating
Material	Forged, 2618
UCR Coating	HV385
Clips Included	N
Pins Included	N
Rings Included	N
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
File Fit	Y
Prop 65 Yes/No	Yes
Country of Origin	US
Quantity per Application	8
