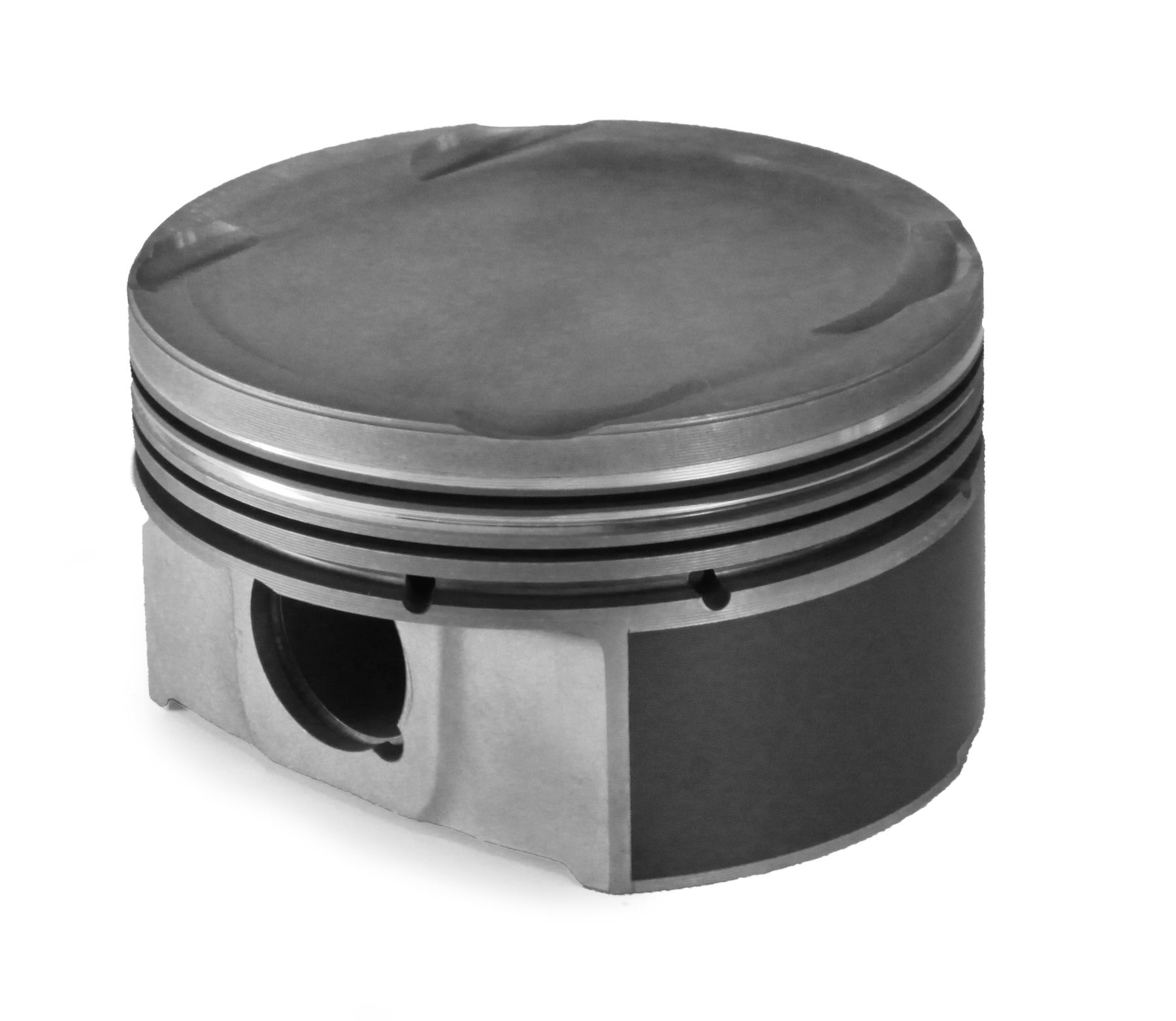

Mahle Motorsport Engine Piston - 930024409-1

Name: Mahle Motorsport Engine Piston - 930024409-1
SKU: 930024409-1
Price: 144.80 USD
Availability: OutOfStock

Piston (ea) - BMW S52 B32 3.2L E36 M3

Manufacturer: Mahle Motorsport

Manufacturer part number: 930024409-1

Old price: $157.39

Price: $144.80

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

86.60mm x 31mm CH, 89.6mm stroke,135mm rod,22mm pin,-11.0cc,324g,11.2CR, 4032, SINGLE PISTON

Note: Replacement piston for kit 930024409, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Crown Volume	-11.0cc
Pin Wall Thickness	0.177
LCR Thickness	1.2mm
UCR Thickness	1.2mm
Piston Ring Thickness	1.2mm, 1.2mm, 2.8mm
Pin Mass	112g
OCR Thickness	2.8mm
Pin Diameter	22.0mm
Piston Mass	324g
Pin Length	58.1mm
LCR Material	Cast Iron
OCR Material	Chrome plated stainless steel
Prop 65 (C, R or CR)	CR
UCR Coating	CrN PVD
Piston Style	Dish, w/ 4 valve reliefs
Pin Style	Floating
Material	Forged, 4032
Clips Included	N
Pins Included	N
Rings Included	N
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
OCR Tension	Standard
Pin Material	Steel
UCR Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
File Fit	Y
Prop 65 Yes/No	Yes
Country of Origin	US
Quantity per Application	6
