Mahle Motorsport Engine Piston - 930248140-1

Name: Mahle Motorsport Engine Piston - 930248140-1
SKU: 930248140-1
Price: 92.69 USD
Availability: OutOfStock

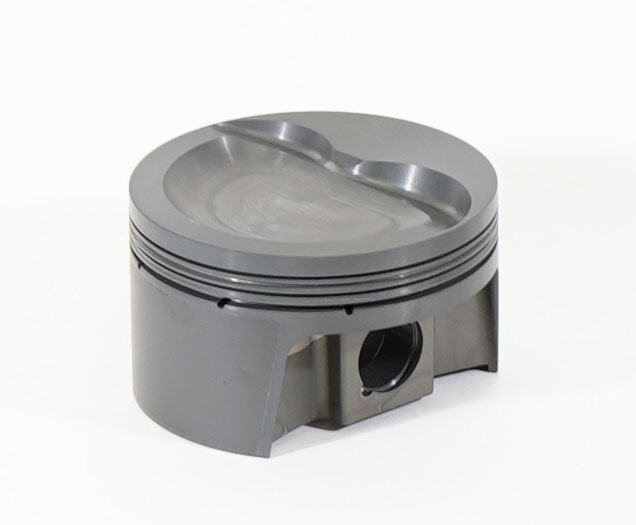

Piston (ea) - SMALL BLOCK FORD INVERTED DOME

Manufacturer: Mahle Motorsport

Manufacturer part number: 930248140-1

Old price: $100.75

Price: $92.69

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

395cid 4.040 x 1.600CH, 3.850stroke,5.956rod,0.912pin,-26cc,473g,9.2CR, 4032, SINGLE PISTON

Note: Replacement piston for kit 930248140, bare piston only, components must be ordered separately

Products specifications

Attribute name	Attribute value
Crown Volume	-2.6cc
Pin Wall Thickness	0.171
LCR Thickness	1.0mm
UCR Thickness	1.0mm
Piston Ring Thickness	1.0mm, 1.0mm, 2.0mm
Pin Mass	116g
OCR Thickness	2.0mm
Pin Diameter	23.165mm
Piston Mass	473g
UCR Coating	HV385
Piston Style	Inverted Dome, w/ 2 valve reliefs
Clips Included	N
Pins Included	N
Rings Included	N
LCR Coating	Phosphate
Clip Style	Round Wire
Package Quantity	Sold as a set of 1
OCR Tension	Standard
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
File Fit	Y
Prop 65 Yes/No	Yes
Material	Forged, 4032
Pin Style	Floating
Prop 65 (C, R or CR)	CR
OCR Material	Chrome plated stainless steel
UCR Material	9254 Steel
LCR Material	9254 Steel
Pin Length	58.1mm
Country of Origin	US
Quantity per Application	8
