Mahle Motorsport Engine Piston Set - 930239225T

Name: Mahle Motorsport Engine Piston Set - 930239225T
SKU: 930239225T
Price: 1385.34 USD
Availability: OutOfStock

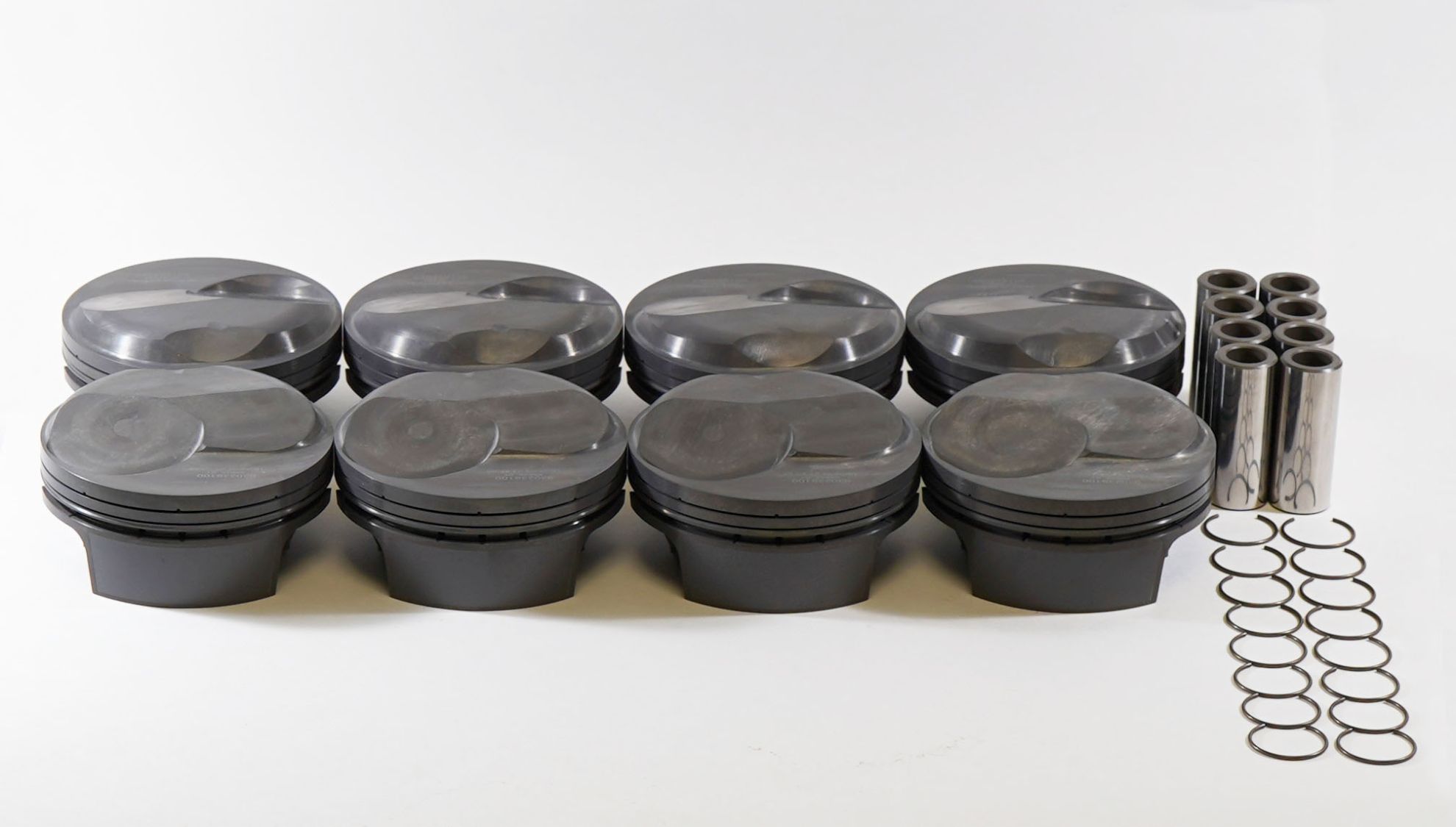

Piston (set) - BIG BLOCK CHEVY ELITE SPORTSMAN DRAG SERIES 24 Deg/25 Deg

Manufacturer: Mahle Motorsport

Manufacturer part number: 930239225T

Old price: $1,505.80

Price: $1,385.34

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

605cid 4.625 x 1.155RCH, 4.500stroke,6.385rod,0.990pin,45.0cc,646g,15.7CR, 2618, TBC coated

Note: Lateral gas ports, Coatings: Phosphate + Grafal + TBC

Products specifications

Attribute name	Attribute value
Crown Volume	45.0cc
Piston Mass	646g
Pin Length	74.42mm
Prop 65 (C, R or CR)	CR
Piston Style	Dome, w/ INT valve relief
Pin Style	Floating
Material	Forged, 2618
Rings Included	N
Clip Style	Round Wire
Package Quantity	Sold as a set of 8
Pin Material	Steel
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Clips Included	Y
OCR Thickness	3.0mm
Pin Diameter	25.146mm
Pin Mass	171g
Pin Wall Thickness	0.18
UCR Thickness	0.043
LCR Thickness	0.043
Piston Ring Thickness	.043, .043, 3.0mm
Pins Included	Y
Prop 65 Yes/No	Yes
Country of Origin	US
