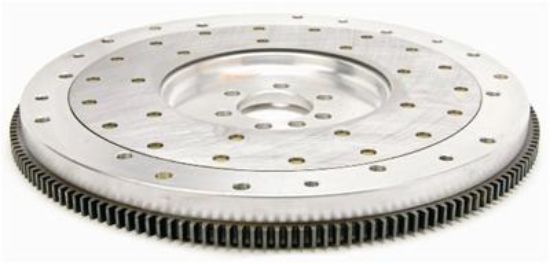

McLeod Clutch Flywheel - 560132

Name: McLeod Clutch Flywheel - 560132
SKU: 560132
Price: 495.00 USD
Availability: OutOfStock

Flywheel: Aluminum: Chevrolet: 1955-85 SBC: 1970-90 BBC: 168T: 15 lbs.

Manufacturer: McLeod

Manufacturer part number: 560132

Old price: $618.75

Price: $495.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Mcleod Aluminum Flywheels Are Ideal For Numerous Applications Such As Supercharged Or Turbocharged Engines. These Flywheels Are Ideal For Higher Horsepower Engines And Combinations That Achieve Rapid Rpm Levels. Mcleod Aluminum Flywheels Are Cnc Machined From 6061 T6 Aluminum And Come With A Replaceable Steel Friction Plate And 1045 Steel Hardened Ring Gear.

Note: Counter Weight Kit if Required (sold separately), Replaceable Friction Surface

Products specifications

Attribute name	Attribute value
Flywheel Material	Billet aluminum
Marine Use	No
Replaceable Friction Surface	Yes
Engine Balance	Internal
Quantity	Sold Individually
Ring Gear Tooth Quantity:	168 Tooth
SFI 1.1 Approved	Yes
Pressure Plate Style	Borg & Beck/Diaphragm/Long
Rear Main Seal Style	2 Piece
Counter Weight Kit if Required	560222 (sold separately)
Notes	Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Crankshaft to Flywheel Bolt Quantity	6-bolt
Engine 3	1991-Up BBC 1pc Seal 454, 502, 572 (Large Register)
Engine 2	1991-Up BBC 1pc Seal 454, 502, 572 (Large Register)
Engine 1	1955-85 SBC 2pc Seal (Large Register)
Disc Diameter (in.)	10.500/11.000/12.000 in.
Weight	15.000 lbs.
Country of Origin	US
Condition	New
