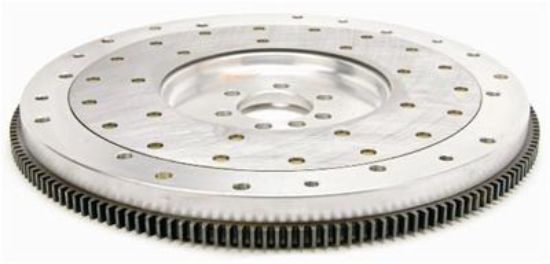

McLeod Clutch Flywheel - 560360

Name: McLeod Clutch Flywheel - 560360
SKU: 560360
Price: 495.00 USD
Availability: OutOfStock

SPECIAL ORDER: Flywheel: Aluminum: Chevrolet: 1986-99 SBC: 1pc Rear Seal: 153T

Manufacturer: McLeod

Manufacturer part number: 560360

Old price: $618.75

Price: $495.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Mcleod Aluminum Flywheels Are Ideal For Numerous Applications Such As Supercharged Or Turbocharged Engines. These Flywheels Are Ideal For Higher Horsepower Engines And Combinations That Achieve Rapid Rpm Levels. Mcleod Aluminum Flywheels Are Cnc Machined From 6061 T6 Aluminum And Come With A Replaceable Steel Friction Plate And 1045 Steel Hardened Ring Gear.

Note: SPECIAL ORDER

Products specifications

Attribute name	Attribute value
Flywheel Material	Billet aluminum
Marine Use	No
Replaceable Friction Surface	Yes
Engine Balance	Internal/External
Quantity	Sold Individually
Ring Gear Tooth Quantity:	153-tooth
SFI 1.1 Approved	Yes
Counter Weight Kit if Required	560222 (sold separately)
Crankshaft to Flywheel Bolt Quantity	6-bolt
Disc Diameter (in.)	10.500
Notes	Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Pressure Plate Style	Borg & Beck/Diaphragm
Rear Main Seal Style	1 Piece
Weight	15.000 lbs.
Country of Origin	US
Condition	New
