McLeod Clutch Flywheel - 564102

Name: McLeod Clutch Flywheel - 564102
SKU: 564102
Price: 550.00 USD
Availability: OutOfStock

SPECIAL ORDER: Flywheel: Aluminum: Mopar: Mopar 1964-03 340 to 440 6 Bolt: 130T

Manufacturer: McLeod

Manufacturer part number: 564102

Old price: $687.50

Price: $550.00

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

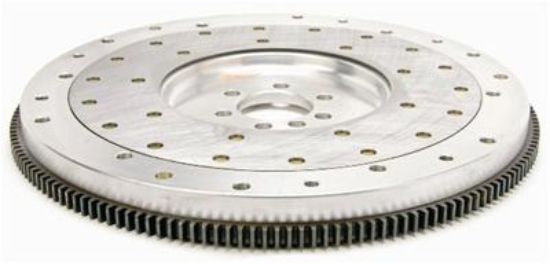

Mcleod Aluminum Flywheels Are Ideal For Numerous Applications Such As Supercharged Or Turbocharged Engines. These Flywheels Are Ideal For Higher Horsepower Engines And Combinations That Achieve Rapid Rpm Levels. Mcleod Aluminum Flywheels Are Cnc Machined From 6061 T6 Aluminum And Come With A Replaceable Steel Friction Plate And 1045 Steel Hardened Ring Gear.

Note: SPECIAL ORDER

Products specifications

Attribute name	Attribute value
Flywheel Material	Billet aluminum
Marine Use	No
Replaceable Friction Surface	Yes
Engine Balance	Internal
Quantity	Sold Individually
Ring Gear Tooth Quantity:	130-tooth
SFI 1.1 Approved	Yes
Crankshaft to Flywheel Bolt Quantity	6-bolt
Disc Diameter (in.)	10.000/10.500/10.950 in.
Notes	Because of standard variances in OEM and Aftermarket manufacturing tolerances, the flywheel to crankshaft fit may have variations from slip-fit to slight interference. Tight fit at the crankshaft can be corrected by heating the flywheel to temporarily to expand the center bore for correct mounting. Caution, flywheel will be hot, handle with care.
Pressure Plate Style	Borg & Beck/Diaphragm
Weight	15.000 lbs.
Country of Origin	US
Condition	New
