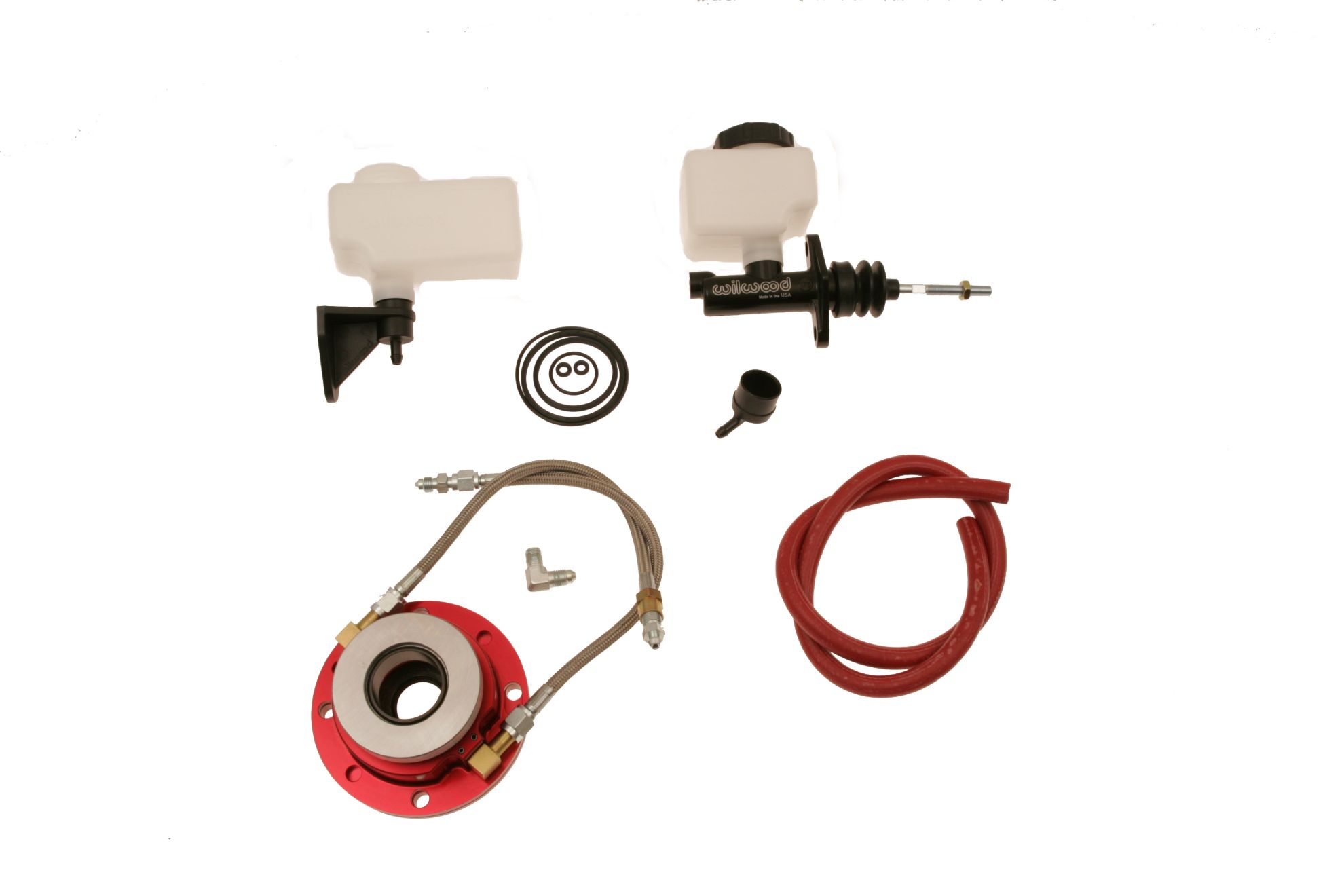

McLeod Clutch Release Bearing - 13095

1300 Series Hydraulic Bearing:Ford:Richmond 5 & 6 Speed:W-M/C
Manufacturer: McLeod
Manufacturer part number: 13095
Old price: $618.75
$495.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

Products specifications

Attribute name Attribute value
"A" Dimension 2.50 in. to 2.99 in.
Output Port Thread 1/8In. NPT
Note This bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764
Note 2 This bearing will NOT work with counter weighted diaphragm pressure plates.
Note 3 This kit comes with a universal master cylinder that is not specific to any firewall. Customer is responsible for engineering and fabricating master cylinder mount with a 6:1 pedal ratio for proper pedal feel and stroke.
Stock Collar I.D. (in.) 4.850In.
Height 3 Spacers 2.890In.
Height 2 Spacers 2.740
Height 1 Spacer 2.590In.
Bearing Face O.D. (in.) 3.000
Bearing Face I.D. (in.) 1.590
Master Cylinder Universal
Master Cylinder Bore Size (in.) 0.750
Master Cylinder Stroke (in.) 1.120
Quantity Sold as a Kit
Material Brass, 304 Stainless Steel
Thread Size 1/8 NPT
Connection Style 1 wire
Prop 65 Yes
Country of Origin CN, US, CA
Condition New
Bend Angle 45
Center Line Radius 2
Leg Length From Tangent 6
Prop 65 Yes/No No
Sale Segment Stainless Tubing
Tube O.D. 1.875
Web Category Stainless Steel Tubing, Bends and Accessories
