McLeod Clutch Release Bearing - 13655

1300 Series Hydraulic Bearing: GM:Legend LGT-700 5 Speed:W-M/C
Manufacturer: McLeod
Manufacturer part number: 13655
Old price: $618.75
$495.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

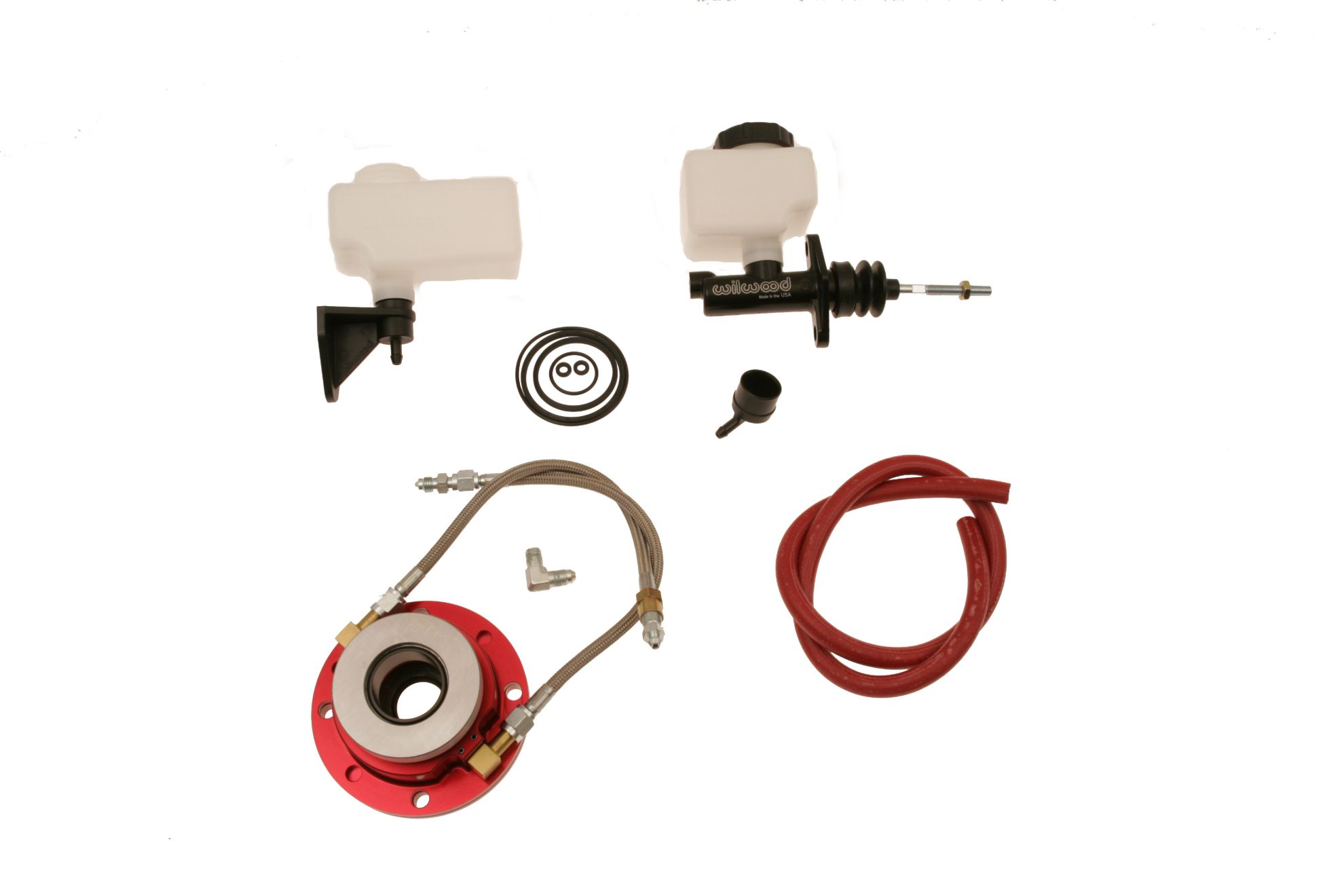

Mcleod 1300 Series Hydraulic Throw-Out Bearings Replace Your Oem Bearing Retainer With The Finest Hard Anodized Billet Aluminum. These High-Quality, Bolt-On Hydraulic Throw-Out Bearings Are Extremely Durable And Are Packaged With High-Pressure Stainless Steel Braided Lines And Premium Elbow Swivel Fittings, Making Their Install Much Easier. These Assemblies Are Available For Several Applications And May Be Used To Eliminate The Need To Fabricate Complex Clutch Linkage When Swapping Transmissions. Mcleod 1300 Series Hydraulic Throw-Out Bearings Offer Extreme Durability And Performance For Your Street Or Strip Machine.

Products specifications

Attribute name Attribute value
Stock Collar I.D. (in.) 4.850In.
Master Cylinder Bore Size 0.750
Stroke 1.2In.
Output Port Thread 1/8In. NPT
Quantity Sold Individually
Note This bearing will NOT work with a OEM self adjusting pressure plate. For more info please call McLeod Tech at 714-630-2764
Note 2 This bearing will NOT work with counter weighted diaphragm pressure plates.
Note 3 This kit comes with a universal master cylinder that is not specific to any firewall. Customer is responsible for engineering and fabricating master cylinder mount with a 6:1 pedal ratio for proper pedal feel and stroke.
Height 3 Spacers 2.890In.
Height 2 Spacers 2.740
Height 1 Spacer 2.590In.
Bearing Face O.D. (in.) 3.000
Bearing Face I.D. (in.) 1.590
Master Cylinder Universal
"A" Dimension 2.50 in. to 2.99 in.
Country of Origin US
Condition New
