TechSpec Includes
|

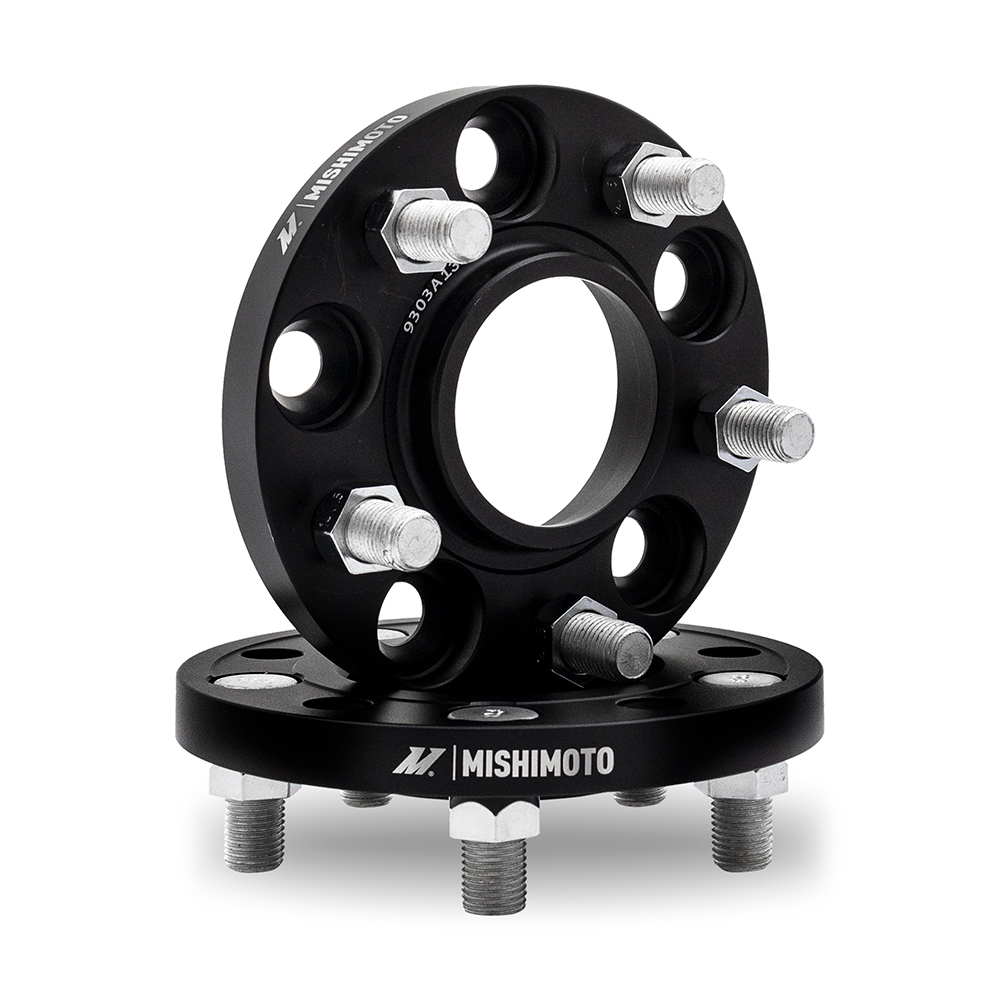

(2) Aluminum Wheel Spacers--(10) M14 X 1.5 Wheel Nuts--Mishimoto Lifetime Warranty |
|
Install Difficulty
|
1 |
|
OptionLabel
|
15mm |
|
TechSpec Material
|
6061 aluminum |
|
SellingPoint02
|
Also fit vehicles with 5x120 bolt pattern, M14x1.5 studs, and 67.1 center bore |
|
SellingPoint07
|
Available in multiple bolt-patterns, center bores, and thicknesses |
|
TechSpec Applications
|
Buick Envision 2.0L L4 2019-2022--Buick Envision 2.5L L4 2019-2020--Buick LaCrosse 2.4L L4 2010-2016--Buick LaCrosse 3.0L V6 2010-2010--Buick LaCrosse 3.6L V6 2010-2016--Buick Regal 2.0L L4 2011-2017--Buick Regal 2.4L L4 2011-2017--Cadillac ATS 3.6L V6 2016-2019--Cadillac CT5 2.0L L4 2020-2022--Cadillac CT5 3.0L V6 2020-2022--Cadillac CT5 6.2L V8 2022-2022--Cadillac CT6 2.0L L4 2016-2019--Cadillac CT6 3.0L V6 2016-2019--Cadillac CT6 3.6L V6 2016-2020--Cadillac CT6 4.2L V8 2019-2020--Cadillac CTS 2.0L L4 2014-2019--Cadillac CTS 3.0L V6 2010-2014--Cadillac CTS 3.6L V6 2008-2019--Cadillac CTS-V 6.2L V8 2009-2019--Cadillac XT4 2.0L L4 2019-2022--Cadillac XTS 3.6L V6 2013-2019--Chevrolet Camaro 2.0L L4 2016-2022--Chevrolet Camaro 3.6L V6 2010-2022--Chevrolet Camaro 6.2L V8 2010-2022--Chevrolet Camaro 7.0L V8 2014-2015--Chevrolet Corvette 5.5L V8 2023+--Chevrolet Corvette 6.2L V8 2020+--Chevrolet Equinox 2.4L L4 2010-2017--Chevrolet Equinox 3.0L V6 2010-2012--Chevrolet Equinox 3.6L V6 2013-2017--Chevrolet Impala 2.4L L4 2014-2014--Chevrolet Impala 2.5L L4 2014-2019--Chevrolet Impala 3.6L V6 2014-2020--Chevrolet Malibu Limited 2.5L L4 2016-2016--Chevrolet Malibu 2.0L L4 2013-2015--Chevrolet Malibu 2.4L L4 2013-2014--Chevrolet Malibu 2.5L L4 2013-2015--Chevrolet SS 6.2L V8 2014-2016--GMC Terrain 2.4L L4 2010-2017--GMC Terrain 3.0L V6 2010-2012--GMC Terrain 3.6L V6 2013-2017--Pontiac G8 3.6L V6 2008-2009--Pontiac G8 6.0L V8 2008-2009--Pontiac G8 6.2L V8 2009-2009 |
|
SellingPoint01
|
Direct fit for 2010+ Chevrolet Camaro and many other Chevrolet models |
|
SellingPoint08
|
Durable anodized finish prevents corrosion |
|
TechSpec Note
|
Ensure stock studs do not contact the back of the wheel when spacers are installed. Trimming of studs for clearance may be required.--Wheel lug nuts must engage with studs for 10 full turns for safety purposes. If lug nuts can not be turned 10 or more times before reaching full torque, discontinue use and contact us at 1-877-GOMISHI--Mishimoto recommends an alignment after installation due to altered track width.--Fitment with aftermarket wheels must be confirmed by the customer before ordering.--Corrosion should be removed from the hub before installing the wheel spacer. Excessive corrosion may prevent the spacer from fully seating. |
|
SellingPoint03
|
Forged 6061-T6 aluminum construction provides the perfect blend of lightness and strength |
|
SellingPoint05
|
High-strength grade-12.9 steel studs and lug nuts securely mount the spacer and wheel to the hub |
|
SellingPoint04
|
Hub-centric design provides a direct extension of the axle hub, ensuring precise wheel fitment, and smooth, safe driving |
|
TechSpec Thread Size
|
M14 X 1.5 |
|
SellingPoint09
|
Mishimoto Lifetime Warranty |
|
SellingPoint10
|
N/A |
|
SellingPoint11
|
N/A |
|
SellingPoint12
|
N/A |
|
SellingPoint13
|
N/A |
|
SellingPoint14
|
N/A |
|
SellingPoint15
|
N/A |
|
TechSpec Diameter (Inches)
|
N/A |
|
TechSpec Engine Codes
|
N/A |
|
TechSpec Installation Notes
|
N/A |
|
TechSpec Length (Inches)
|
N/A |
|
TechSpec Maximum Pressure (PSI)
|
N/A |
|
TechSpec Maximum Temperature (F)
|
N/A |
|
TechSpec Minimum Yield Strength
|
N/A |
|
TechSpec Overall Height (Inches)
|
N/A |
|
TechSpec Ultimate Tensile Strength
|
N/A |
|
TechSpec Weight (Ounces)
|
N/A |
|
SellingPoint06
|
Purchase includes one pair of wheel spacers and all necessary hardware for installation |
|
Prop 65 Y/N
|
Y |
|
Prop 65 - Short Label
|
WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov |
|
Thickness
|
0.6, 1.5 |
|
Lug Hole Quantity
|
5 |
|
Bolt Pattern
|
5 x 120mm, 5x4.7 in |
|
Hub Bore Diameter
|
67.1 |
|
Material
|
Aluminum |
|
Finish
|
Anodized |
|
Color
|
Black |
|
Wheel Nuts Included
|
Yes |
