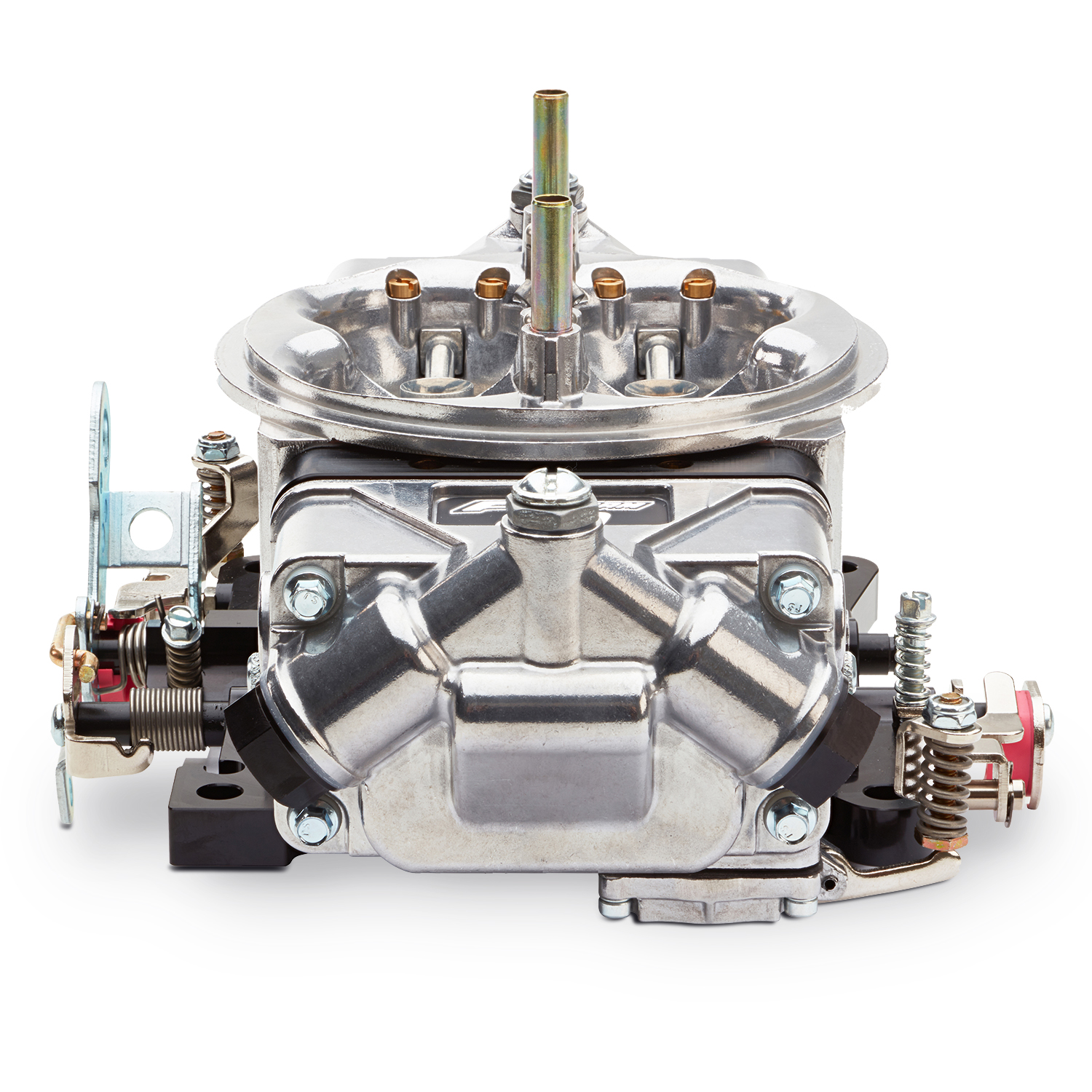

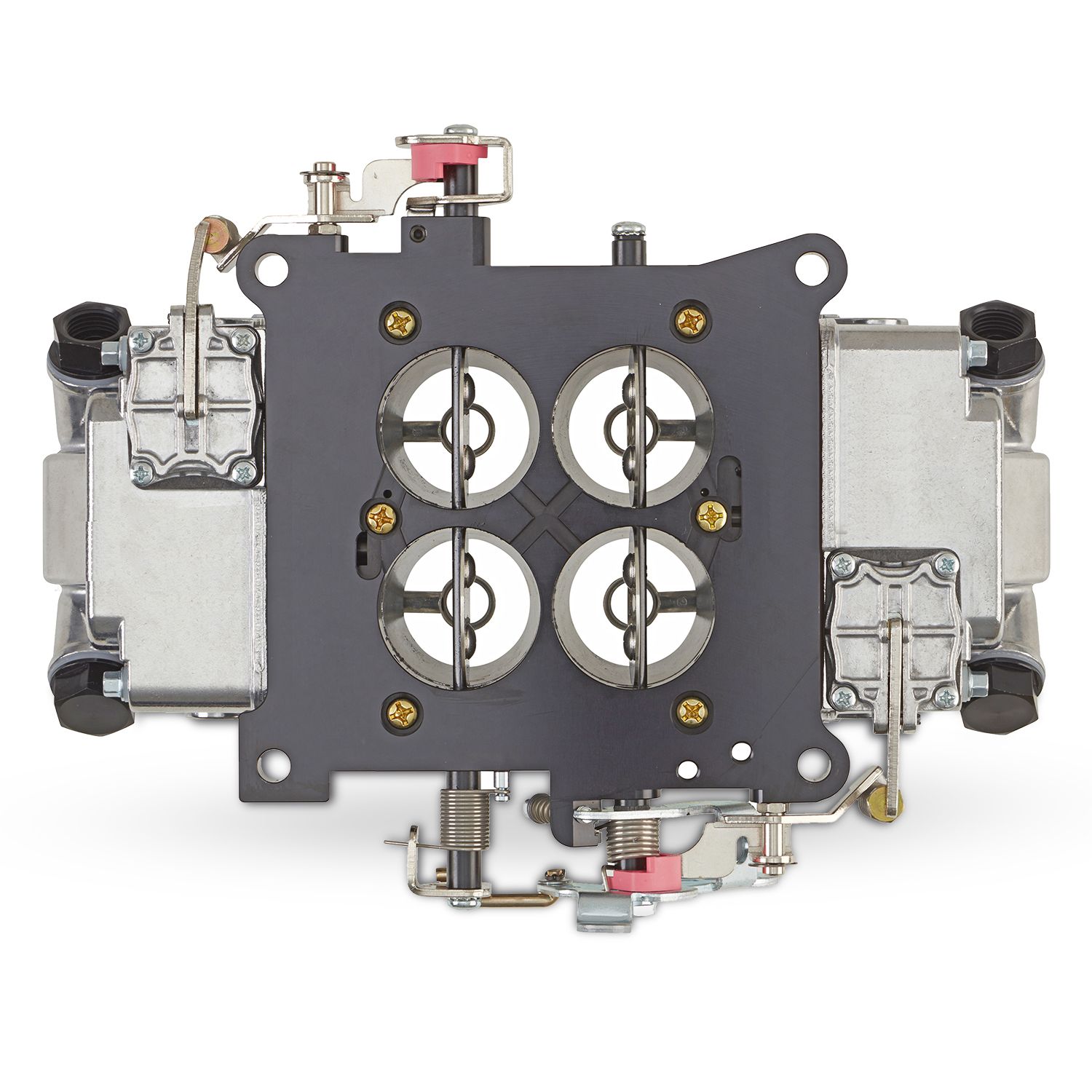

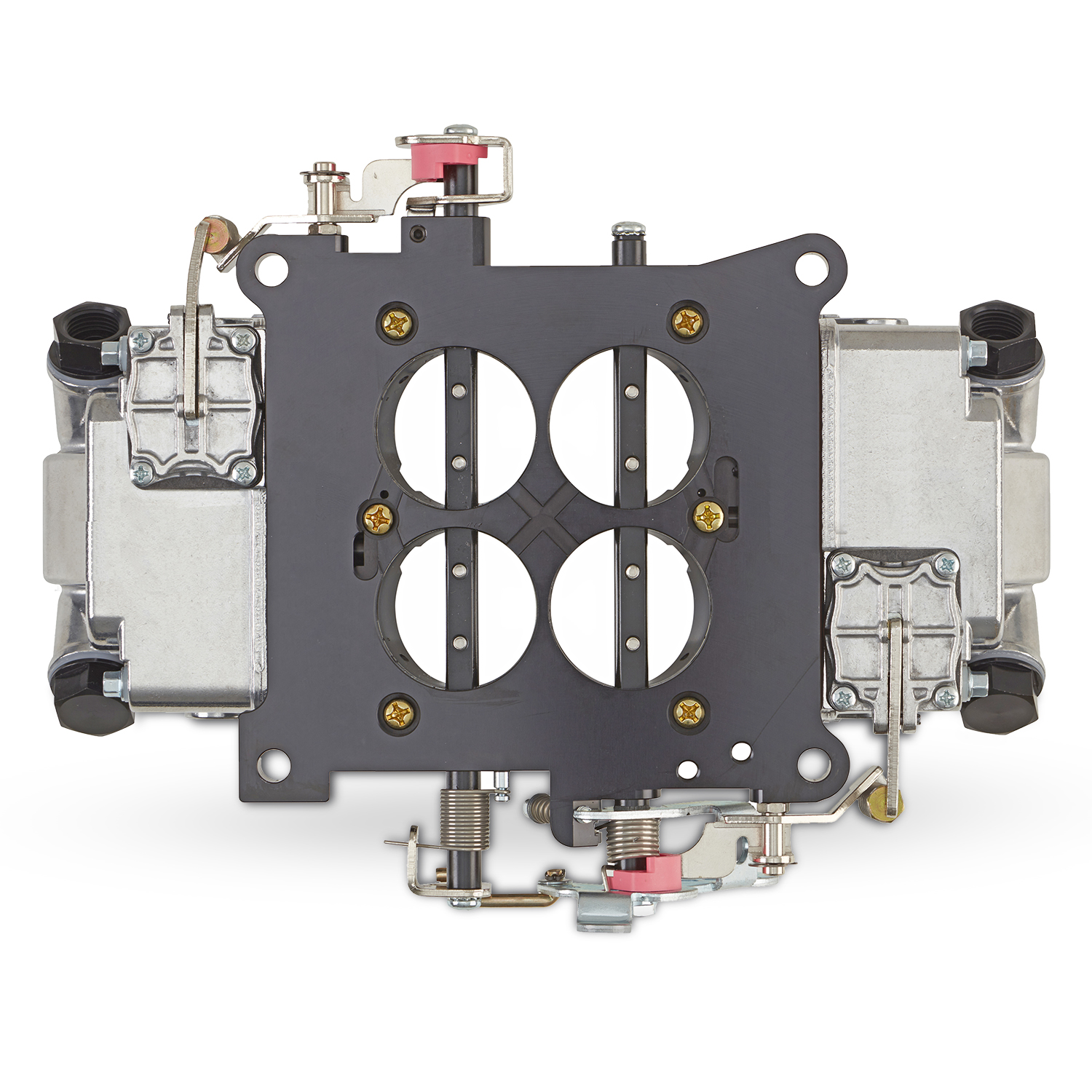

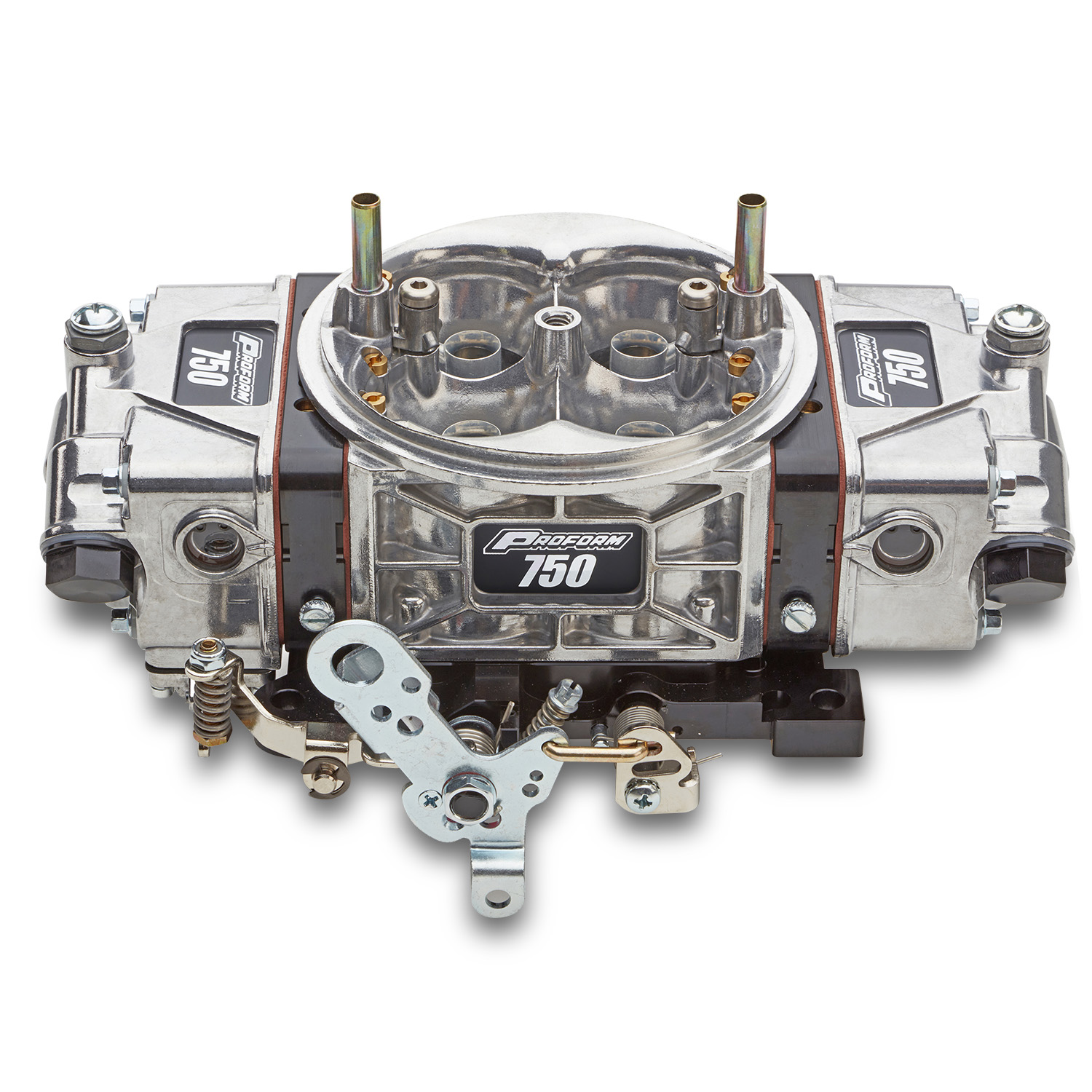

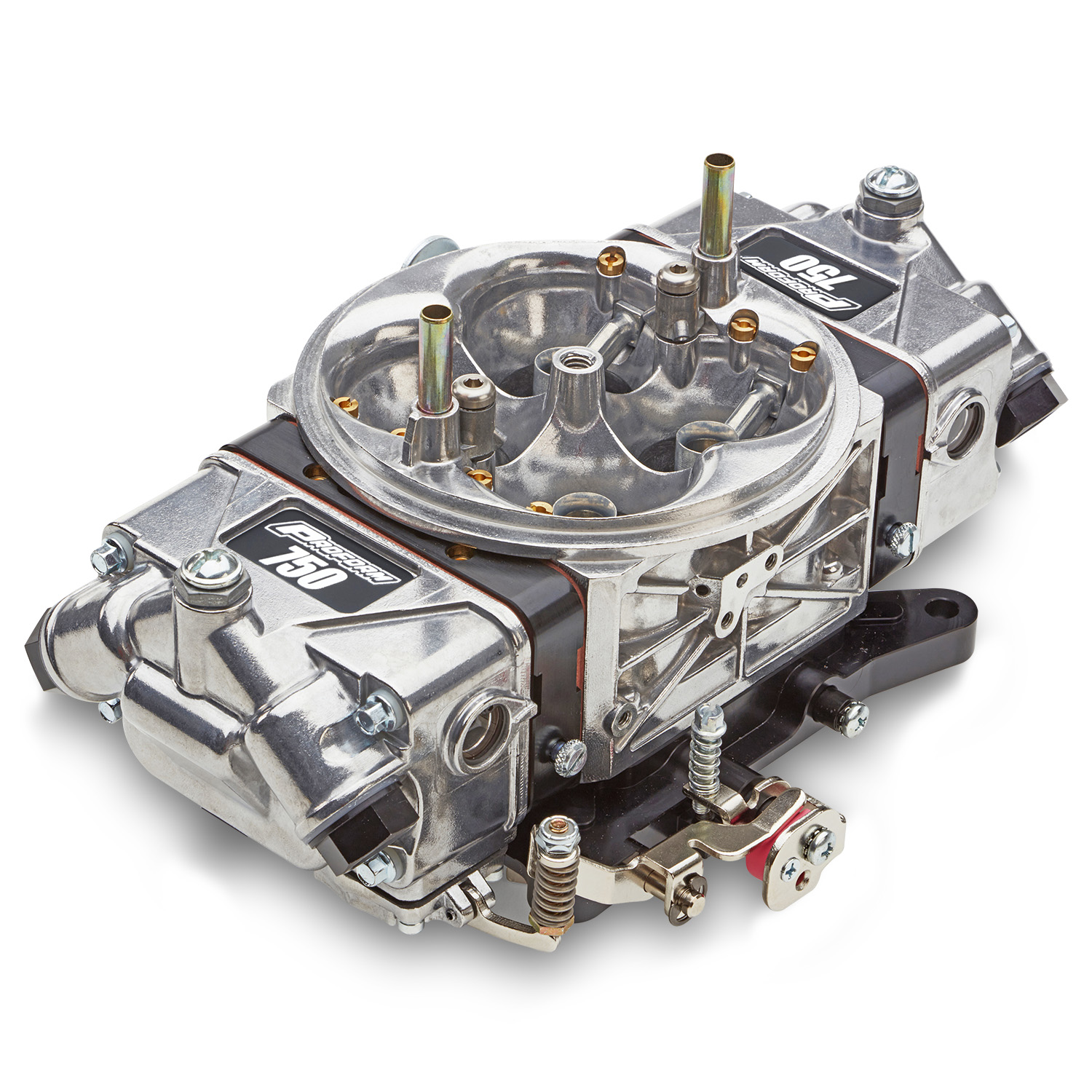

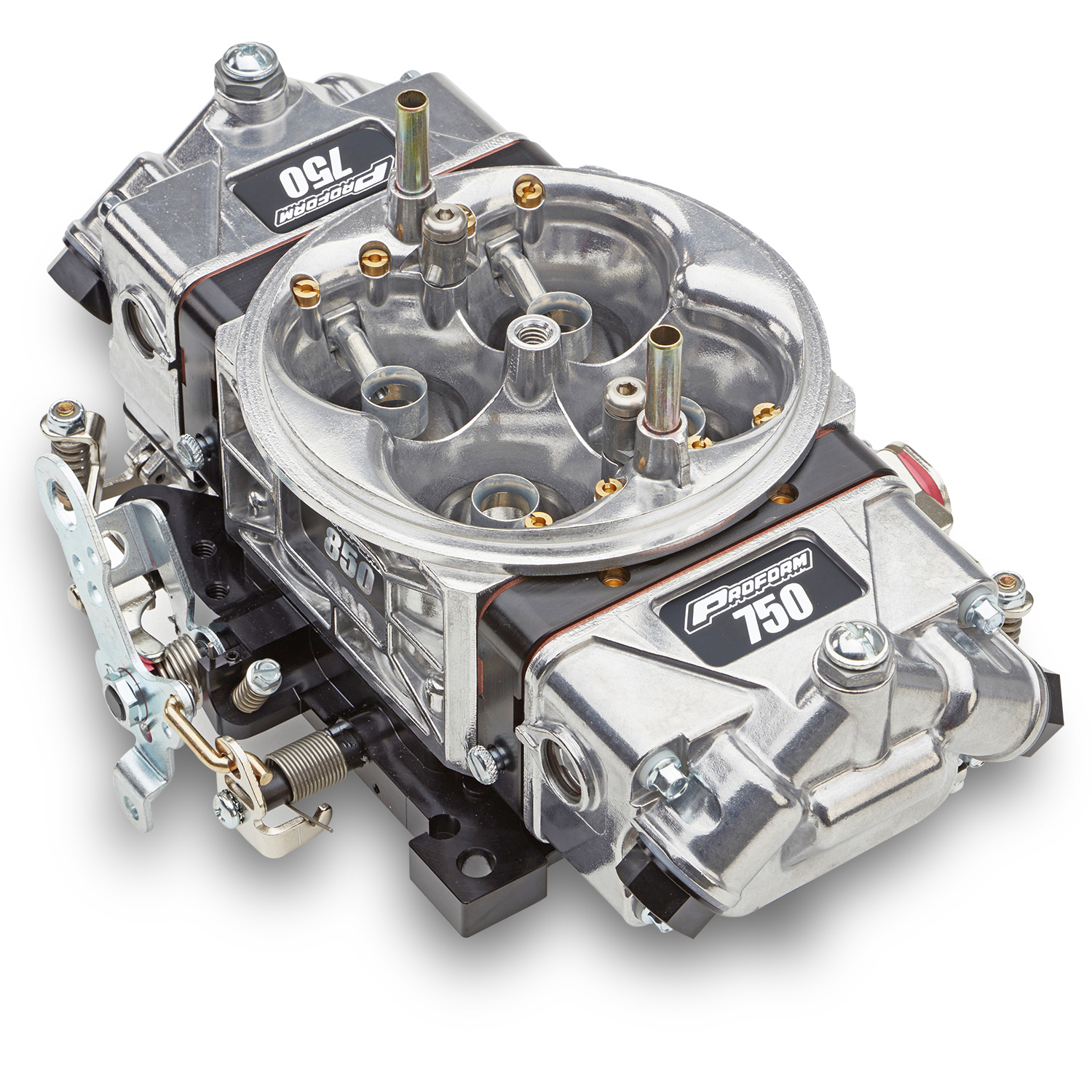

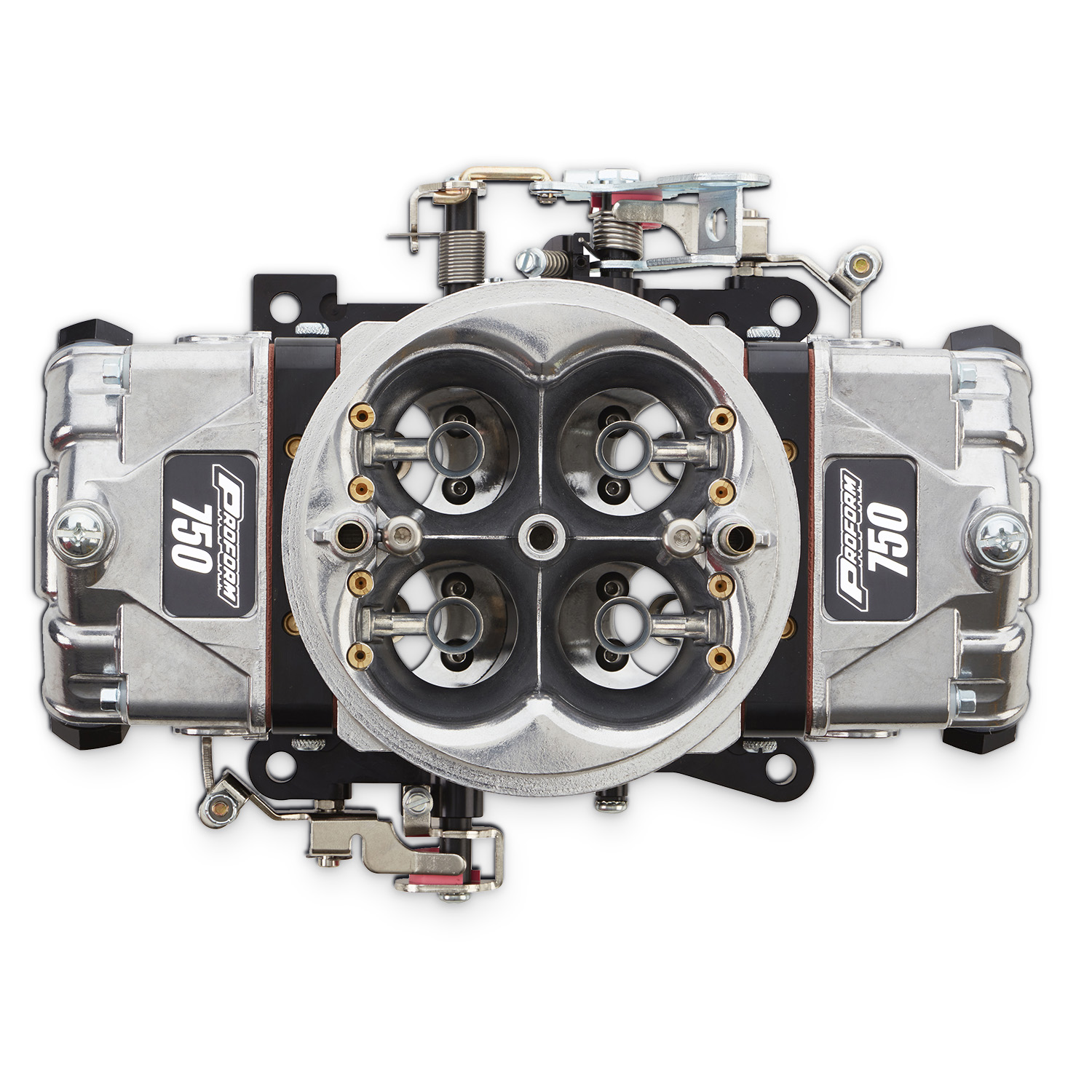

Proform Carburetor - 67215

Race Series Carburetor
Manufacturer: Proform
Manufacturer part number: 67215
$651.26
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options

PROFORM's Next Gen Race Series carbs are now available for Circle Track racers! PROFORM's new Race Series Carburetor is hand assembled in the U.S. utilizing the PROFORM's Next Gen (new in 2022) High-Flow Carburetor Main Body, durable billet metering blocks, a high performance billet throttle baseplate, and Next Gen (new in 2022) Aluminum Fuel Bowls. The PROFORM Race Series Carb includes: PROFORM High-Flow Carburetor Main Body with Dyno-Proven Horsepower and Torque Gain, Adjustable Screw-In Air Bleeds, No Air Horn, Choke Tower, or Choke Control, and the best part is that it uses standard service and tuning components. PROFORM Billet Throttle Base Plates with Adjustable Secondary Air Flow Cam Bracket, and Power Valve Blow Out Protection, Timed and Full Vacuum Tubes for Accessories and Tuning, Button Torx Head Throttle Plate Screws, Slabbed Shafts, Slip-Link Mechanical Secondary Linkage, Serviceable Throttle Levers. PROFORM Billet Metering Blocks that are Durable, No Warping or Porosity Problems, Changeable Idle Feed Restriction, and new Fuel Control Baffling. PROFORM Next Gen Aluminum Fuel Bowls that are Lightweight and include Sight Glass Windows for easy float adjustment, and in 2022 Internal Baffling and a Lower Fuel Ramp for Increased Fuel Control. This Circle Track specific model also includes wedge shaped fuel bowl floats to reduce fuel build up while continuously turning.

Note: Race Series Carburetor

Products specifications

Attribute name Attribute value
Feature/Benefit Lightweight Aluminum Construction
Prop 65 Warning Label Proposition 65 Warning.JPG
Idle/High Speed Air Bleed Sizes 70 / 35
Ford Kickdown Bracket Included No
Fuel Line Inlet Distance 9-11/16 inch
Secondary Main Jet Size 76 / .080
Air Bleed Size (Inner High Speed) 35 / 35
Primary Main Jet Size 76 / .080
CFM: 750 CFM
Number of Barrels 4
Base Plate Material Billet Aluminum
Series Race Series
Secondaries Mechanical Secondaries
Booster Style Down-Leg Boosters
Air Bleed Size (Outer Idle) 70 / 70
PartType Carburetor
Metering Block Material Billet Aluminum
Choke No Choke
Main Body Material Lightweight Aluminum
Calibration Universal
Throttle Linkage Universal
Fuel Inlet Dual
Fuel Gasoline
Prop 65 Yes/No Yes
Prop 65 (C, R or CR) CR
Needle & Seat 110
Prop 65 - Short Label WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Primary Power Valve (Hg) 4.5
Prop 65 Long Label WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information see P65Warnings.ca.gov/auto-parts.
Discharge Nozzle Size (Primary / Secondary) .031 in. / .031 in.
Flange Style Square Bore
Small Venturi Diameter 1.75
Mounting Hole Quantity 4
Mounting Hole Diameter 0.25
Mounting Hardware Included No
Marine Approved No
Main Venturi Diameter 1.875
Linkage Attached Yes
Grade Type Performance
Gasket Or Seal Included Yes
Float Material Nitrophyl
Flange Shape 4150 & 8090
Choke Type Manual
Center Hung Floats Yes
Body Material Aluminum
Body Height 3.25
Body Color Silver
Base Width 5.25
Base Length 5.25
Barrel Quantity 4
Air Cleaner Flange Diameter 0.25
Adjustable Float Level Yes
Secondary Jet Diameter 0.084
Primary Jet Diameter 0.084
Street Legal Yes
Flange Type Square/4150
Secondary Barrel Type Mechanical
Emissions 49 State Legal
EGR Without EGR
Category Carburetor - 750 CFM
Fuel Inlet Thread 7/8-in. x20
Air Bleeds Included Yes
Air Bleed Material Brass
Spacer Included No
Country of Origin US
