Proform Carburetor - 67304

Name: Proform Carburetor - 67304
SKU: 67304
Price: 779.33 USD
Availability: OutOfStock

Black Race Series Carburetor

Manufacturer: Proform

Manufacturer part number: 67304

$779.33

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

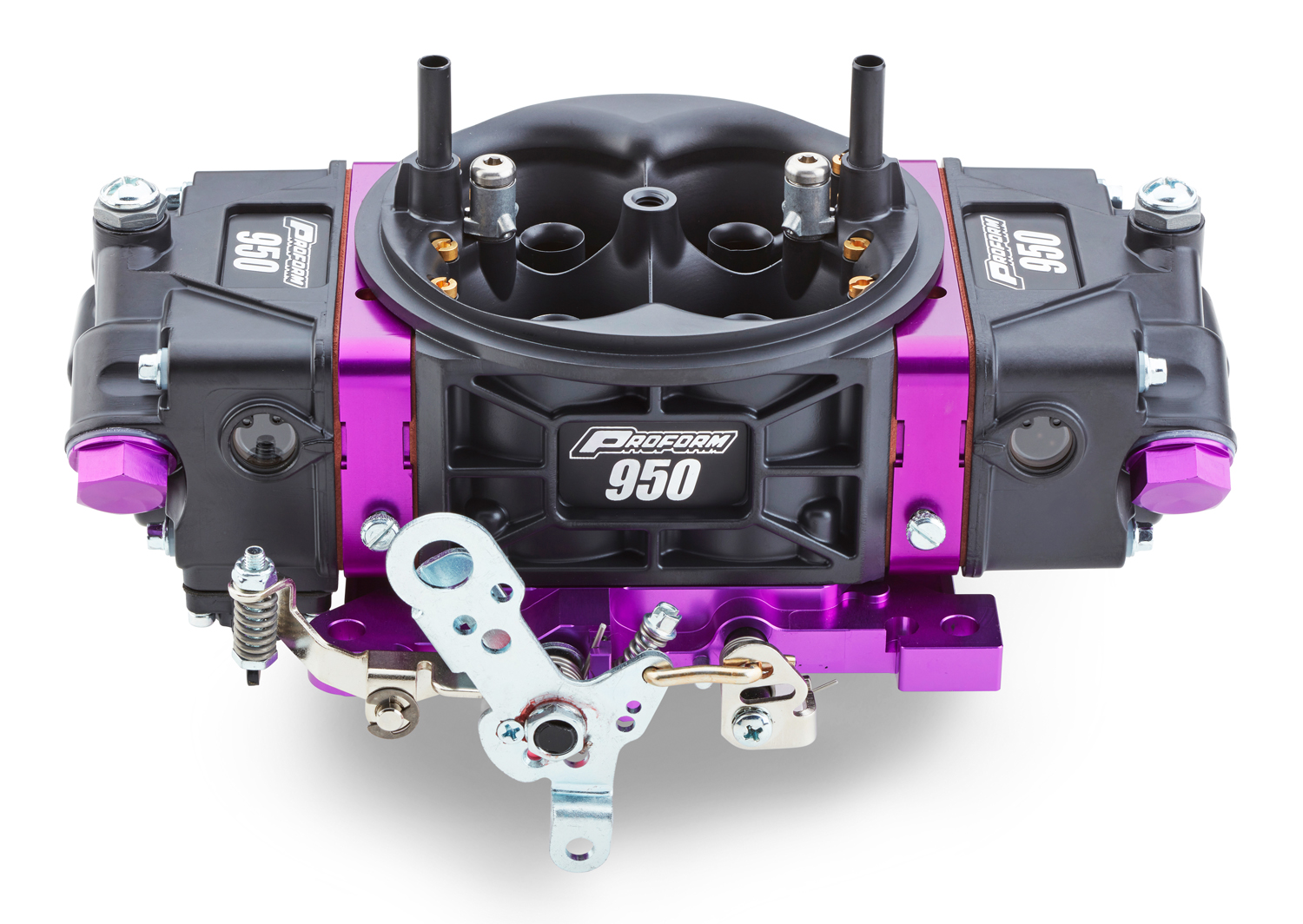

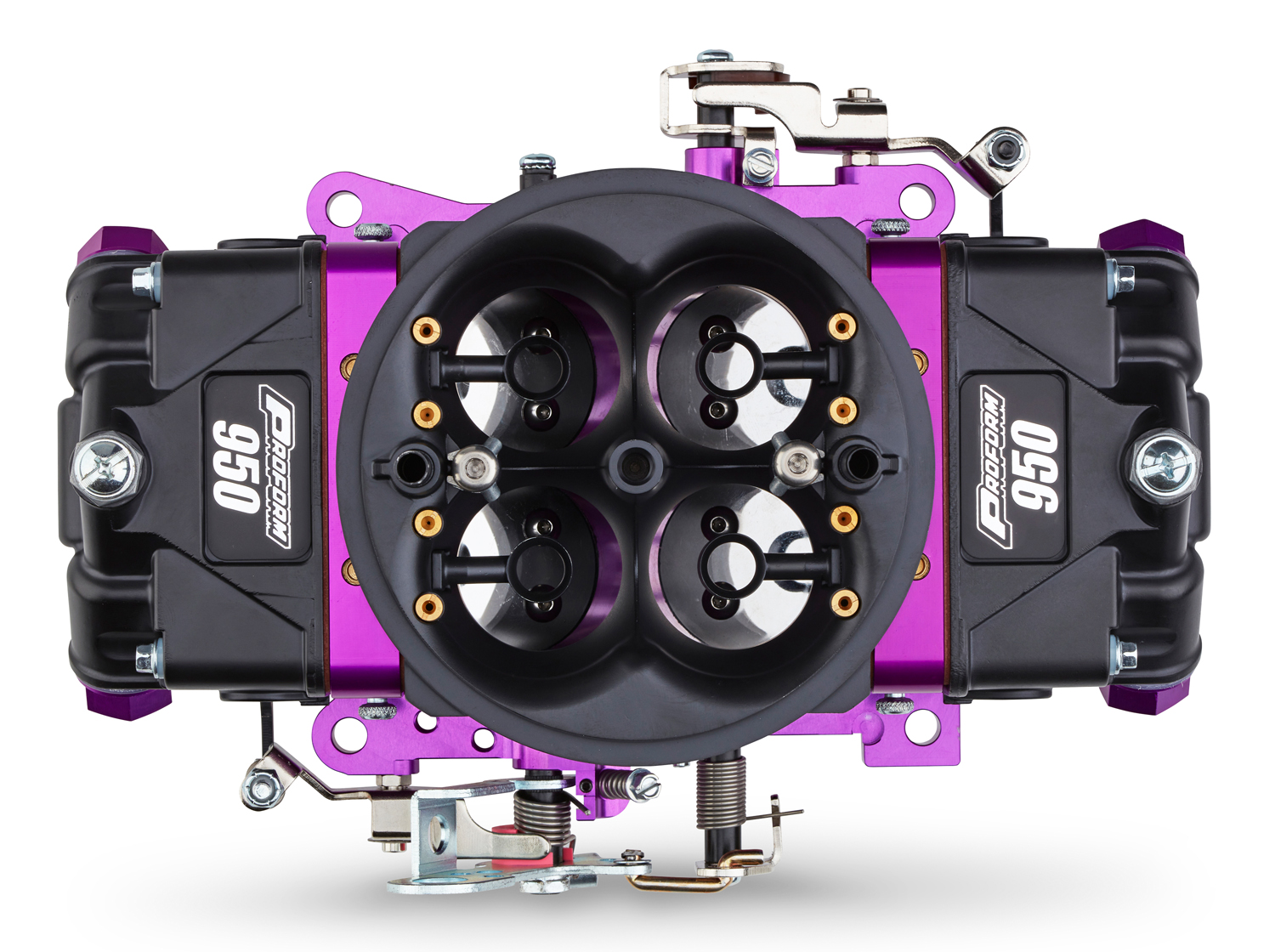

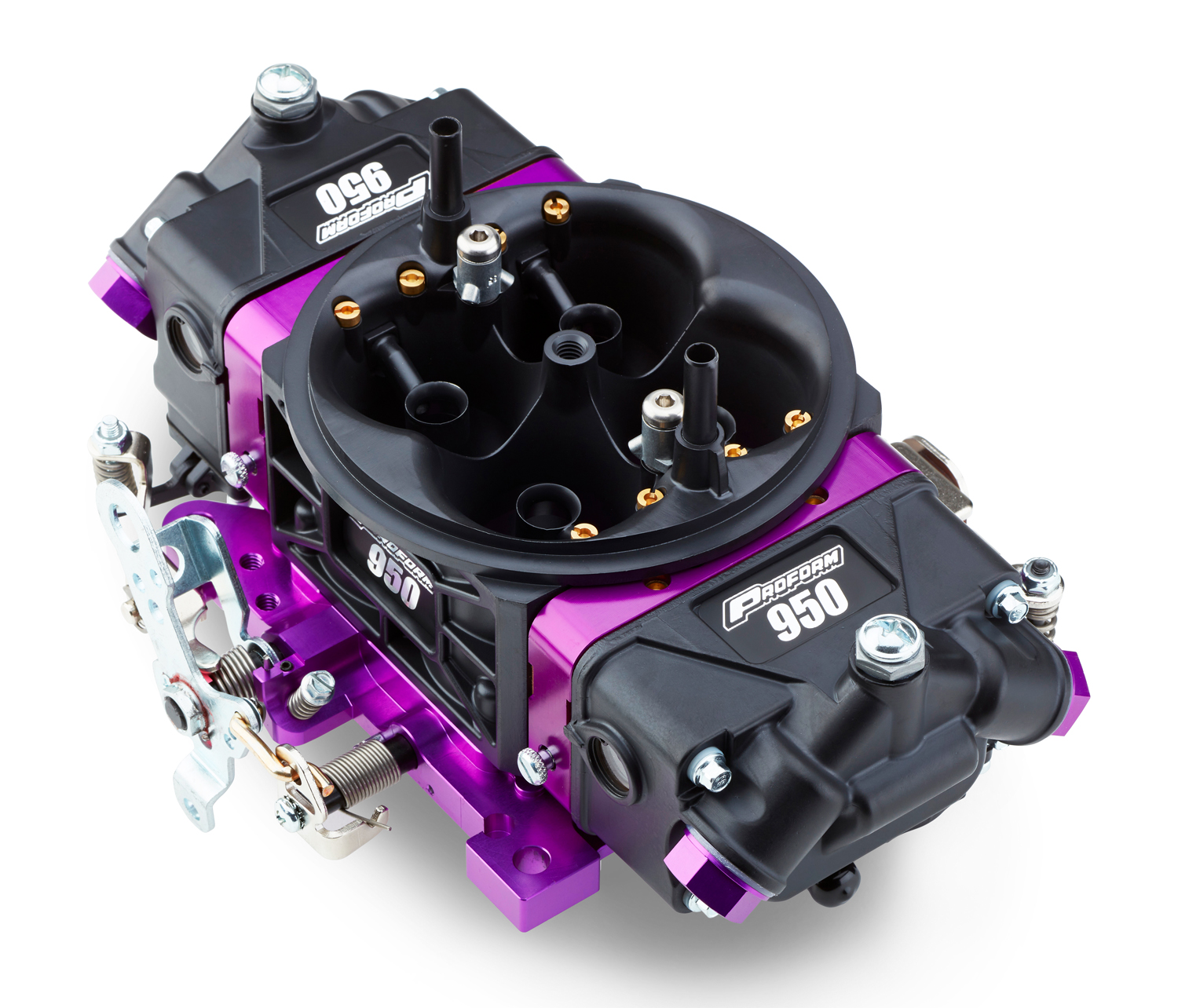

Based on the wildly popular original Race Series carburetors, PROFORM's Black Race Series Carburetors include a Black Diamond coating for enhanced fuel cooling. Each carburetor is hand assembled and tested in the U.S. utilizing the PROFORM High-Flow Carburetor Main Body, durable billet metering blocks, high performance billet throttle baseplate, and lightweight aluminum fuel bowls. PROFORM Black Race Series Carbs include: (1) Adjustable High-Flow Aluminum Main Body with Screw-In Air Bleeds, Maximum Air Flow: No Air Horn, Choke Tower, or Choke Control, Uses standard service and tuning components! (2) Billet Throttle Base Plates: Adjustable Secondary Air Flow Cam Bracket, Solid Billet Construction, Manufactured in the U.S.A., Timed and Full Vacuum Tubes for Accessories and Tuning, Button Torx Head Throttle Plate Screws, Power Valve Blow Out Protection, Progressive Slip Link Mechanical Secondary Linkage, Serviceable Throttle Levers, and Ford Kickdown! (3) Billet Metering Blocks: Solid Billet Construction, Durable, No Warping or Porosity Problems, Changeable Idle Feed Restriction, Manufactured in the U.S.A.! (4) Aluminum Fuel Bowls: Lightweight Aluminum, Sight Glass Windows for easy float adjustment!

Note: Black Race Series Carburetor

Products specifications

Attribute name	Attribute value
Feature/Benefit	Lightweight Aluminum Construction
Prop 65 Yes/No	Yes
Prop 65 (C, R or CR)	CR
Ford Kickdown Bracket Included	Yes
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Primary Power Valve (Hg)	4.5
Prop 65 Long Label	WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information see P65Warnings.ca.gov/auto-parts.
Needle & Seat	120
Prop 65 Warning Label	Proposition 65 Warning.JPG
Discharge Nozzle Size (Primary / Secondary)	.033 in. / .033 in.
Fuel Line Inlet Distance	9-11/16 inch
Secondary Main Jet Size	88 / .100
Idle/High Speed Air Bleed Sizes	70 / 33
Air Bleed Size (Inner High Speed)	33 / 33
Primary Main Jet Size	79 / .086
Category	Carbs
PartType	Carburetor
Fuel	Gasoline
Air Bleed Size (Outer Idle)	70 / 70
Base Plate Material	Billet Aluminum
Series	Black Race Series
Secondaries	Mechanical Secondaries
Booster Style	Down-Leg Boosters
Number of Barrels	4
CFM:	950 CFM
Metering Block Material	Billet Aluminum
Throttle Linkage	Universal
Calibration	Universal
Fuel Inlet Thread	7/8-in. x20
Fuel Inlet	Dual
Flange Style	Square Bore
Emissions	49 State Legal
EGR	Without EGR
Choke	No Choke
Main Body Material	Lightweight Aluminum
Air Bleeds Included	Yes
Air Bleed Material	Brass
Spacer Included	No
Small Venturi Diameter	1.75
Mounting Hole Quantity	4
Mounting Hole Diameter	0.25
Mounting Hardware Included	No
Marine Approved	No
Main Venturi Diameter	1.875
Linkage Attached	Yes
Grade Type	Performance
Gasket Or Seal Included	Yes
Float Material	Nitrophyl
Flange Shape	4150 & 8090
Choke Type	Manual
Center Hung Floats	Yes
Body Material	Aluminum
Body Height	3.25
Body Color	Black
Base Width	5.25
Base Length	5.25
Barrel Quantity	4
Air Cleaner Flange Diameter	0.25
Adjustable Float Level	Yes
Secondary Jet Diameter	0.1025
Primary Jet Diameter	0.089
Street Legal	Yes
Flange Type	Square/4150
Secondary Barrel Type	Mechanical
Country of Origin	US
