Proform Radiator - 117GS10

Name: Proform Radiator - 117GS10
SKU: 117GS10
Price: 484.99 USD
Availability: OutOfStock

123 Series Radiator System

Manufacturer: Proform

Manufacturer part number: 117GS10

$484.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

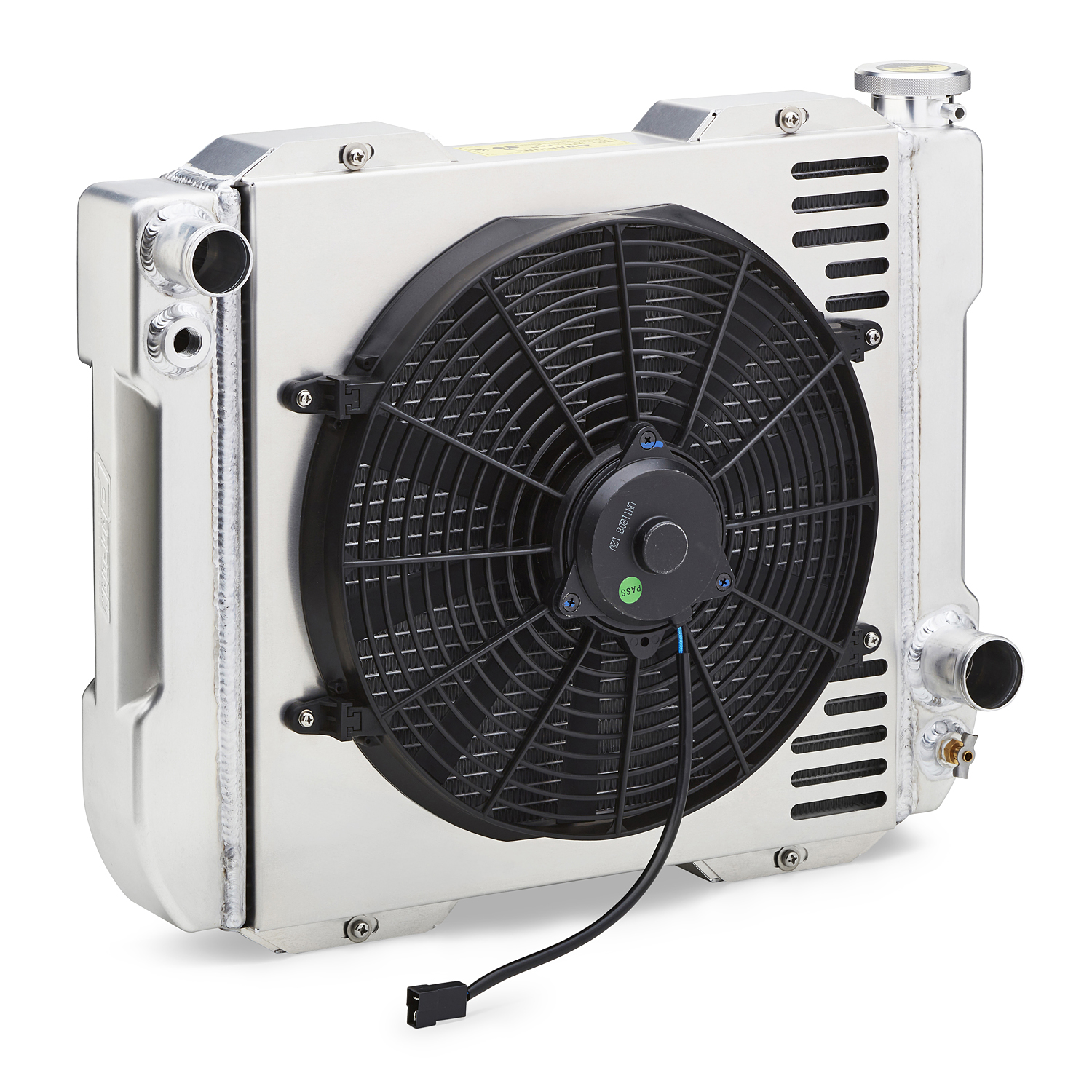

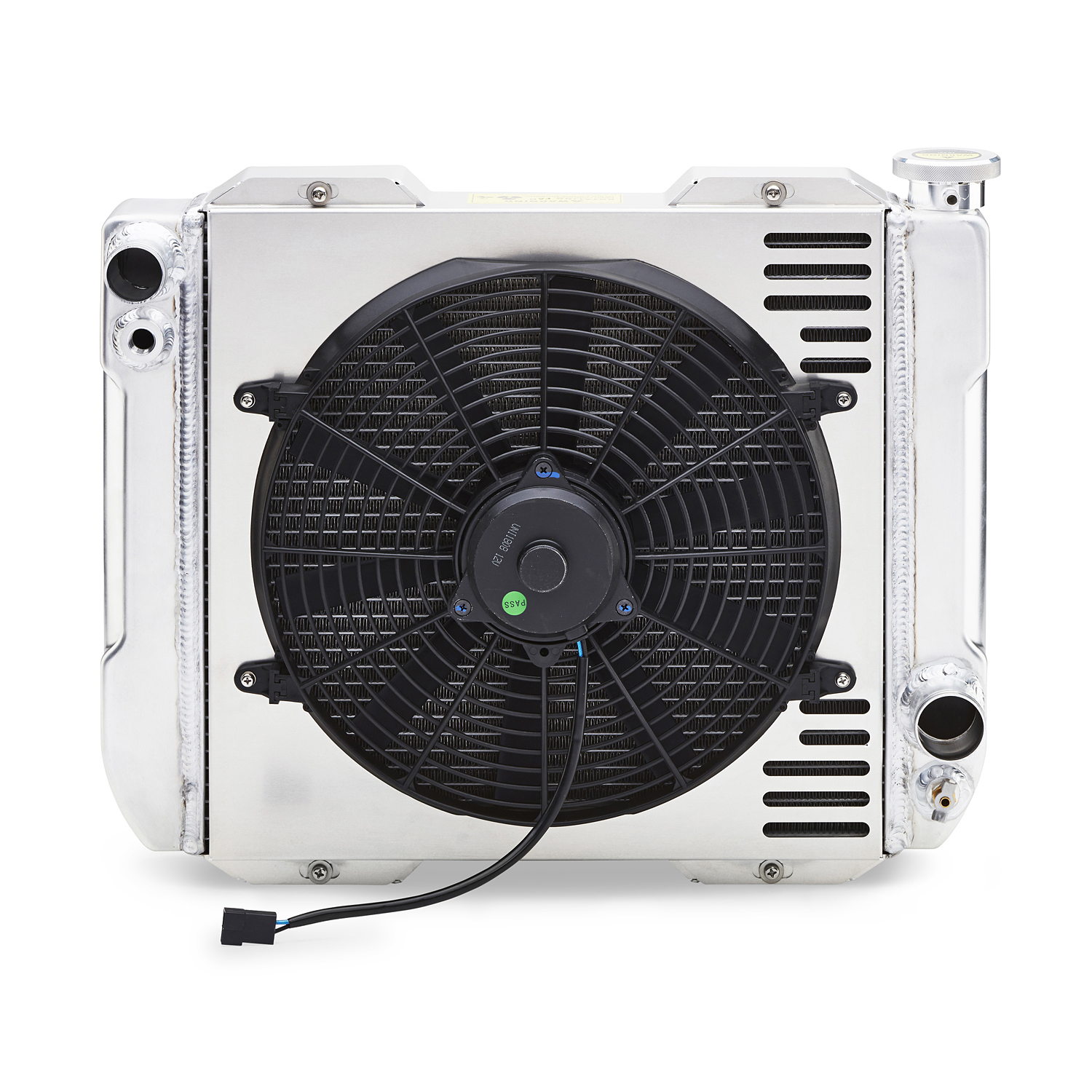

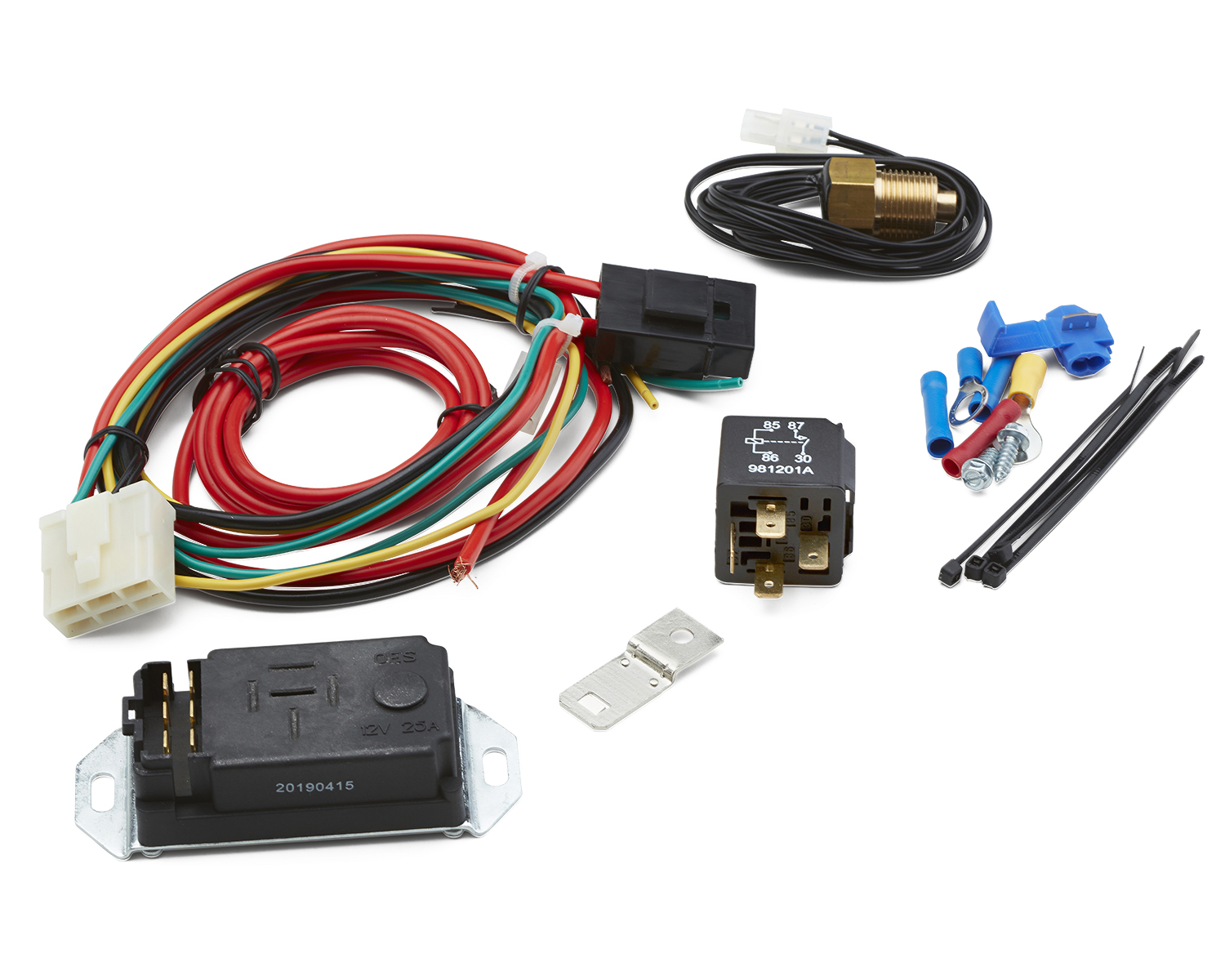

Easy 1-2-3 Series Radiators Systems are just what they sound like! Proform will build the whole system with shroud and fans so it s ready to go right out of the box! This is the best and easiest way to get a high-quality cooling system that doesn t have the DIY look. Just thread the thermostat probe into the tank, wire up the controller, and you ll be driving down the street nice and cool in no time at all. These systems include a radiator, shroud or bracket, fan(s), and a thermostat controller.

Note: 123 Series Radiator System

Products specifications

Attribute name	Attribute value
Outlet Diameter [in]	1.75
Prop 65 Yes/No	Yes
Core Width (in)	17
Prop 65 (C, R or CR)	CR
Fan CFM	1650
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Prop 65 Long Label	WARNING: Handling passenger or off-highway motor vehicle parts can expose you to chemicals such as phthalates and lead, which can cause cancer and reproductive harm. To minimize exposure, service the vehicle in a well-ventilated area, wear gloves, and wash your hands. For more information see P65Warnings.ca.gov/auto-parts.
Category	Radiators
Prop 65 Warning Label	Proposition 65 Warning.JPG
Shroud Color	Natural
Max Recommended Horsepower	600
Transmission Type	Manual
Inlet Diameter [in]	1.5
PartType	Radiator
Overall Width (in)	22.3 inch
Feature/Benefit	Fully assembled right out of the box
Core Thickness (in)	2.4
Voltage Compatibility	12
Mounting Style	Universal
Series	1-2-3
Coolant Hose Inlet Connection Type	Upper driver side
Coolant Hose Outlet Connection Type	Lower passenger side
Coolant Level Indicator Port	No
Core Color	Silver
Core Construction	Tube-and-Fin
Core Finish	Uncoated
Core Height	15.25
Core Material	Aluminum
Core Row Quantity	2
Core Thickness	2.40
Core Tube Inside Diameter	1
Core Width	17.00

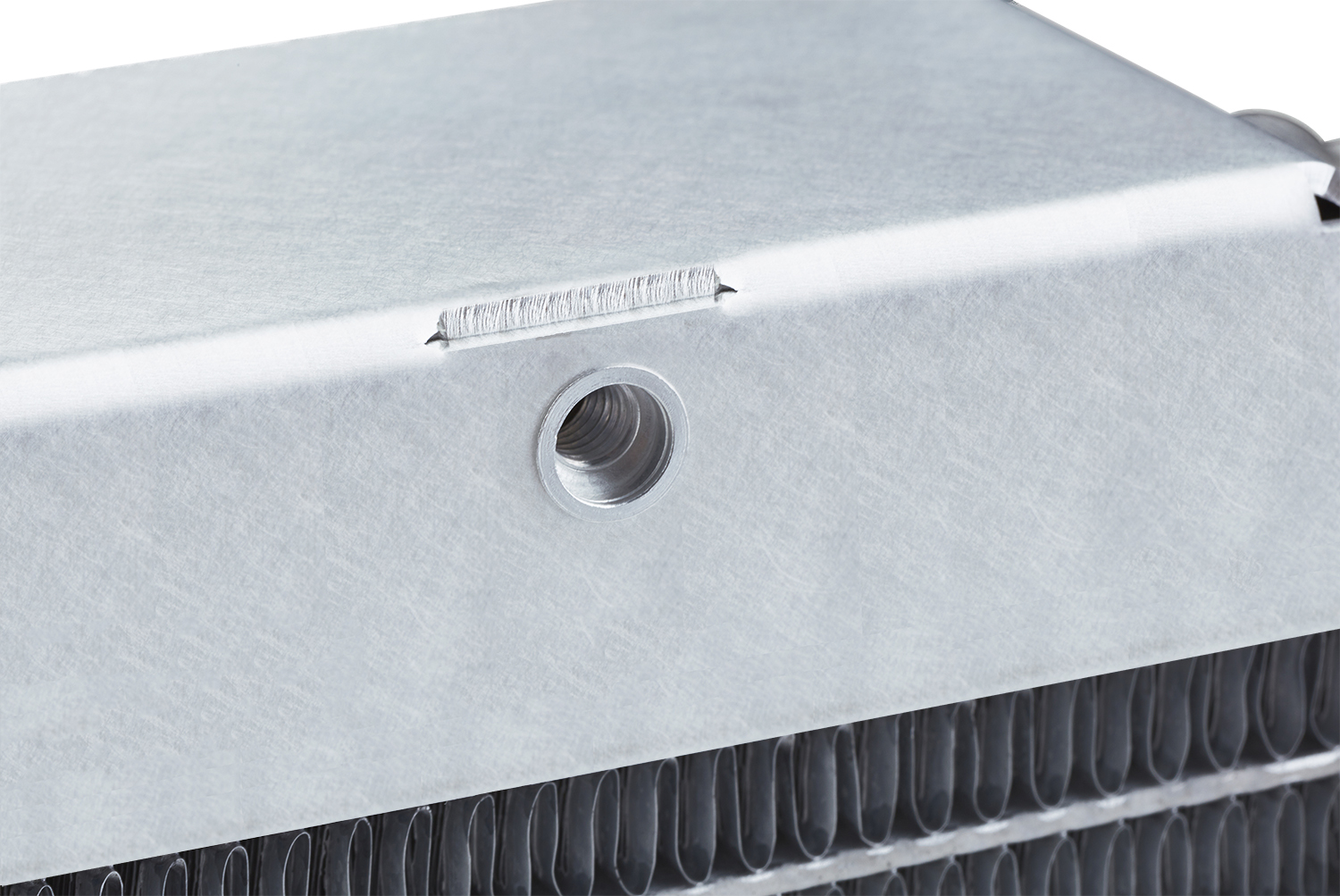

Drain Plug Included	Yes
Drain Plug Thread Size	1/4" - 20
Down Flow Or Cross Flow Type	Cross Flow
Engine Oil Cooler Fitting Gender	Male
Engine Oil Cooler Fitting Type	Tube
Engine Oil Cooler Included	No
Fan Shroud Mount Hole Shape	Round
Outlet Connector Type	Tube
Outlet Diameter	1.75
Outlet Header Length	1.375
Outlet Location	Bottom Right
Overall Height	18.00
Overall Width	22.30
Pass Quantity	Single Pass

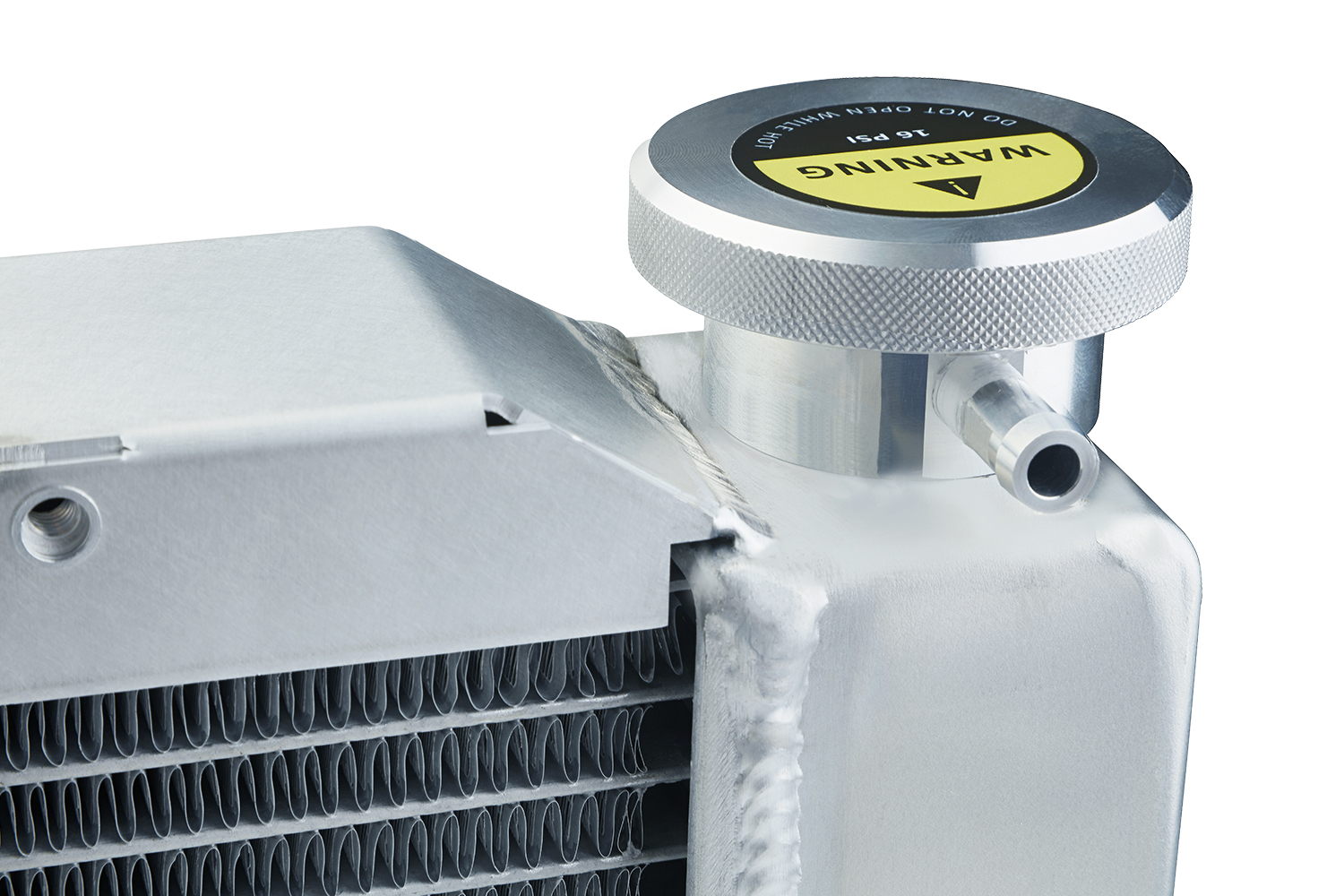

Radiator Cap Included	Yes
Tank Material	Aluminum
Thermostat Included	Yes
Transmission Oil Cooler Plate Quantity	5
Mounting Type	Chassis
Mounting Hardware Included	No
Inlet Location	Top Left
Inlet Header Length	1.375
Inlet Diameter	1.500
Inlet Connector Type	Tube
Grade Type	Performance
Country of Origin	TW
