RICK'S 14-511H 269502 ELECTRIC RECTIFIER-REGULATOR

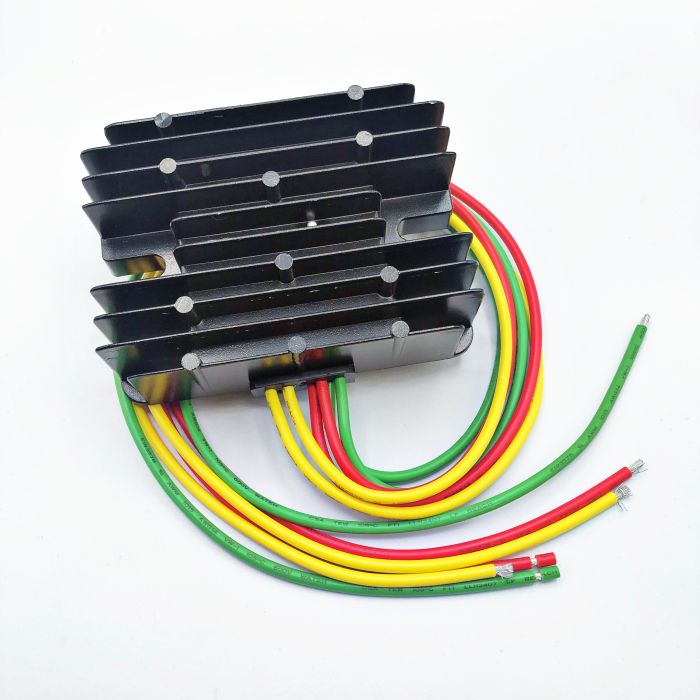

Universal Hot Shot Rectifier-Regulator Lithium Compatible Single Phase; this aftermarket rec/reg is designed as a UNIVERSAL piece - that means it will come with WIRE LEADS ONLY. Some harness fabrication will be needed. You will need to connect (via soldering) your OE plug to the regulator harness. Installation instructions will be included. This is a 50 amp unit made with Mosfet technology and designed for single phase systems with the correct voltage set point for lithium batteries. Part measurements are: center to center bolt holes min = 74mm; max = 110mm; body dimensions are: 110mm x 80mm x 33mm thick. Lead wires are 18" long. *This will work electrically for single phase systems BUT you will NEED TO MAKE THIS WORK ON YOUR MACHINE with modification & soldering. **This rec-reg is not for use with standard lead acid batteries. The voltage set point is 14V +/- .2.

Manufacturer Part #: 14-511H
