RIGID Industries Exterior Multi-Purpose LED - 260413

Name: RIGID Industries Exterior Multi-Purpose LED - 260413
SKU: 260413
Price: 949.99 USD
Availability: OutOfStock

Adapt E-Series LED Light Bar With 3 Lighting Zones And GPS Module, 20 Inch

Manufacturer: RIGID Industries

Manufacturer part number: 260413

$949.99

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

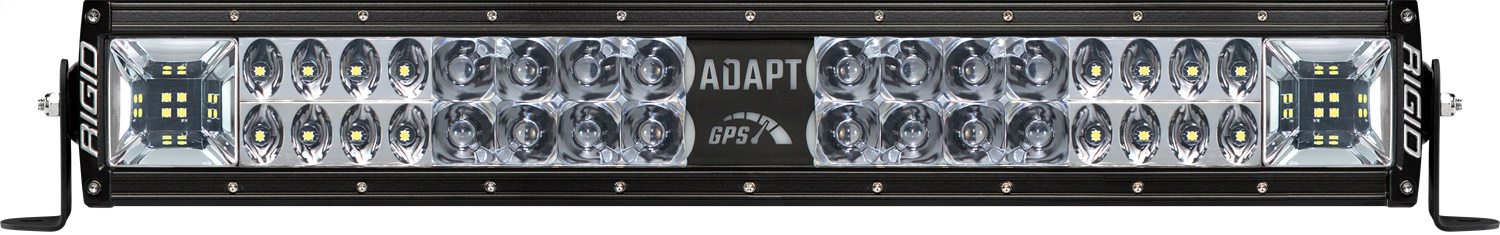

The RIGID Adapt E-Series LED Light Bar features the same style and construction as RIGIDs legendary E-Series, from the high-strength aluminum heat sink to the unbreakable polycarbonate lens. On the inside, however, the Adapt E-Series contains cutting-edge technology. The Adapt E-Series takes off-road lighting performance to a whole new level with two layers of adaptive response to your vehicle and driving conditions.

Application: Universal

Note: Professional Installation Recommended, RIGID Adapt

Products specifications

Attribute name	Attribute value
C = Beam Distance with .25 LUX	1,115
Zone 2 Raw Lm	10,880
Zone 1 Horizontal Field beam angle	102.3
Raw Lumens	11,968
Zone 3 Raw Lm	11,968
Zone 3 C	1114.6
Zone 1 C	144.1
Field Vertical (Measured in Degrees)	16
Zone 2 LED's count	16
Zone 3 LED's count	16
Zone 3 Vertical Field beam angle	16.3
Field Horizontal (Measured in Degrees)	17
Zone 3 Horizontal Field beam angle	17.3
Size	20 in.
Zone 2 Vertical Field beam angle	24.1
Zone 2 B	266.4
A = LUX at 10 Meters	3,106
Peak Beam Intensity (cd)	310,578
Zone 3 Peak CD	310,578
Zone 3 A	3105.78
Number of LED's	40
Zone 2 Horizontal Field beam angle	48.4
Zone 1 Peak CD	5,189
Zone 2 Amp Draw	5.9
Zone 1 A	51.89
Zone 2 C	532.7
B = Beam Distance with 1 LUX	557
Zone 3 B	557.3
Product Weight	6.1
Zone 1 Amp Draw	6.3
Zone 3 Amp Draw	6.9
Zone 2 Peak CD	70,948
Zone 2 A	709.48
Zone 1 B	72
Zone 1 LED's count	8
Zone 1 Raw Lm	8,641
Zone 2 Watts	82
Zone 1 Watts	88
Zone 1 Vertical Field beam angle	96.5
Watts	97
Zone 3 Watts	97
Product Family	Adapt
ASIN	No
Prop 65 Yes/No	No
What's In The Package	Stainless Steel Mounting Brackets, Hardware Kit, Wire Harness, Relay, Switch, Install Instructions
test series	Universal Fit
Country of Origin	MX
Condition	New
