SBC 195cc Alm Cylinder Heads 2.020/1.600 Assem.

Name: SBC 195cc Alm Cylinder Heads 2.020/1.600 Assem.
SKU: H8002K
Price: 1522.64 USD
Availability: InStock

Manufacturer: BluePrint Engines

Manufacturer part number: H8002K

Old price: $1,599.00

Price: $1,522.64

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

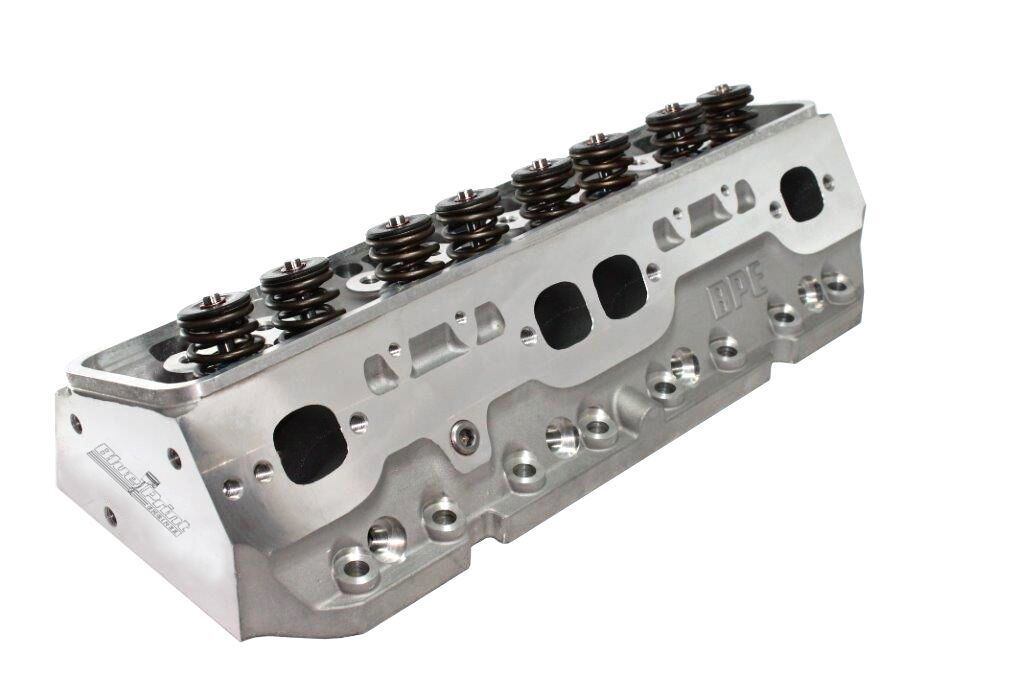

Cylinder Head - Muscle Series - Assembled - 2.020 / 1.600 in Valves - 195 cc Intake - 64 cc Chamber - 1.437 in Spring - Straight Plug - Aluminum - Small Block Chevy - Pair

Note: Straight Plug

Manufacturer Part #: H8002K

Products specifications

Attribute name	Attribute value
Manufacturer's Part Number:	H8002K
Intake Runner Volume (cc):	195cc
Product Type	Cylinder Head
Exhaust Runner Volume (cc):	75cc
Material	Aluminum
Sub Type	Muscle Series
Cylinder Head Style	Assembled
Cylinder Head Material	Aluminum
Unit	Pair
Intake Port Shape:	Rectangular
Intake Valve Diameter (in.):	2.020 in.
CNC-Machined Combustion Chamber:	No
Specifications	Assembled, 2.020 / 1.600 in Valves, 195 cc Intake, 64 cc Chamber, 1.437 in Spring, Straight Plug, Small Block Chevy
CNC-Machined Intake Runner:	No
Intake Port Location:	Standard
Exhaust Port Shape:	Square
Exhaust Port Location:	Raised .500
Spark Plug Style:	Straight
Intake Valves Included:	Yes
Exhaust Valves Included:	Yes
Exhaust Valve Diameter (in.):	1.600 in.
Valve Springs Included:	Yes
Maximum Valve Lift (in.):	0.575 in.
Camshaft Style:	Hydraulic Roller
Outside Diameter of Outer Spring (in.):	1.437 in.
Damper Spring Included:	Yes
Number of Springs Per Valve:	Dual
Retainers Included:	Yes
Retainer Material:	Chromoly steel
Locks Included:	Yes
Lock Style:	7 degree
Valve Stem Seals Included:	Yes
Valve Stem Seal Style:	Viton® Fluoroelastomer
Rocker Arm Studs Included:	Yes
Rocker Arms Included:	No
Rocker Arm Nuts Included:	No
Valve Cover Mounting Style	Perimeter bolt
Accessory Bolt Holes Drilled:	Yes, 3/8 -16 in.
Intake Valve Angle:	23
Exhaust Valve Angle:	23
Valve Guides Included:	Yes
Valve Guide Material:	Manganese bronze
Valve Seats Machined:	Yes
Valve Seat Machine Style:	3-angle
Valve Seat Material:	Chrome nickel
Cylinder Head Color:	Natural
Steam Holes Drilled:	No
Oiling Style:	Through pushrod
Machined for O-Ring:	No
Heat Crossover:	No
Combustion Chamber Volume (cc):	64cc
Rocker Arm Nut Thread Size:	7/16 in. x 20
Guide plates Included:	Yes
Guide plate Pushrod Size:	5/16 in.
Notes	Uses 3/4 in. reach gasket seat spark plug. Heads are drilled to accept both early style (12 bolt) and late style (8 bolt/Vortec) intake manifolds.
Quantity	Sold as a pair.
Prop 65 Y/N Flag	Yes
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Country of Origin	US
Condition	New
