SBC 360 Sprint Piston Set 4.030 x3.500 x 6.000

Name: SBC 360 Sprint Piston Set 4.030 x3.500 x 6.000
SKU: 310562
Price: 1024.84 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 310562

Old price: $1,154.99

Price: $1,024.84

PRICE BREAKS - The more you buy, the more you save

Quantity	2+
Price	$1,019.34

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

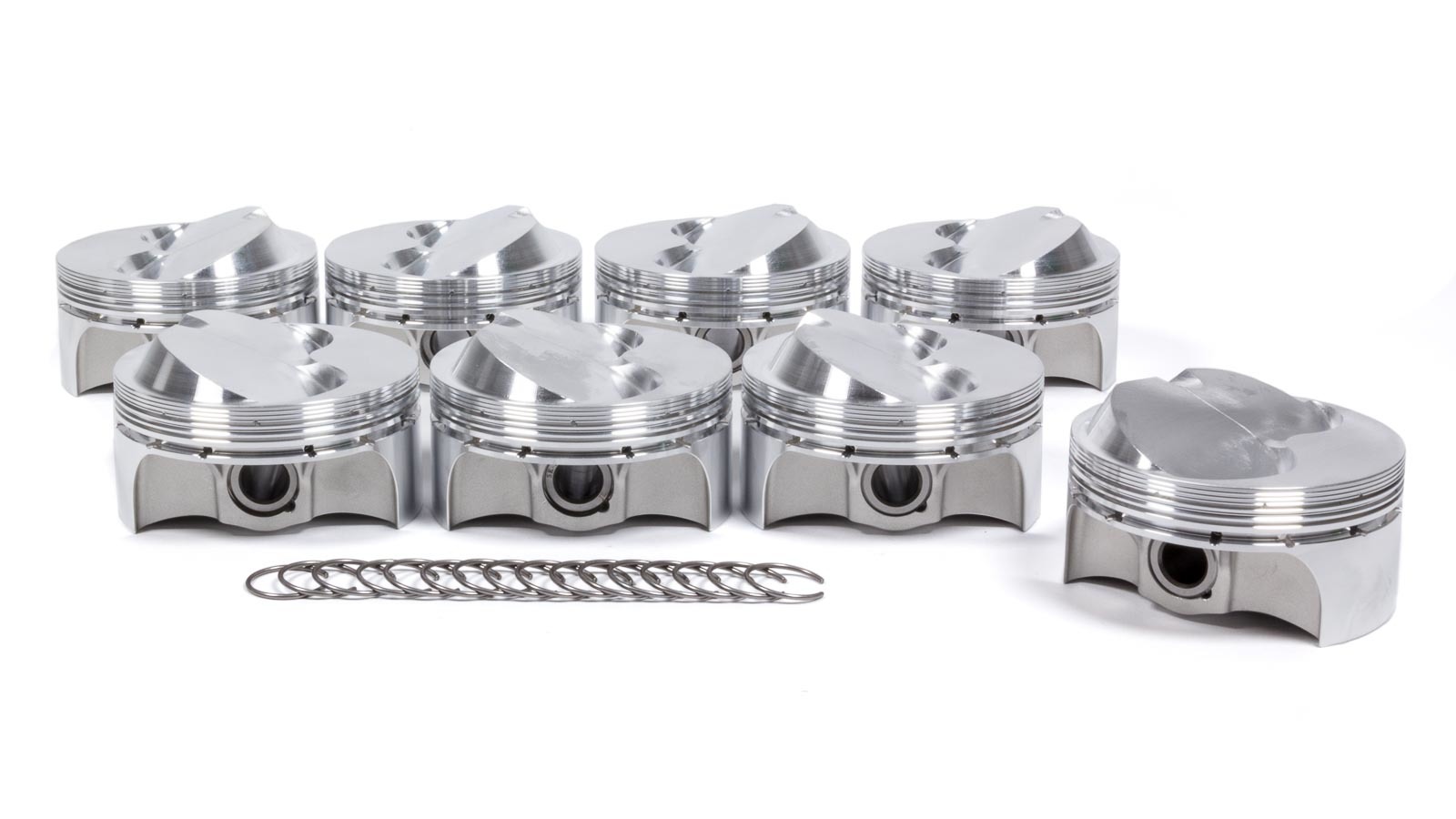

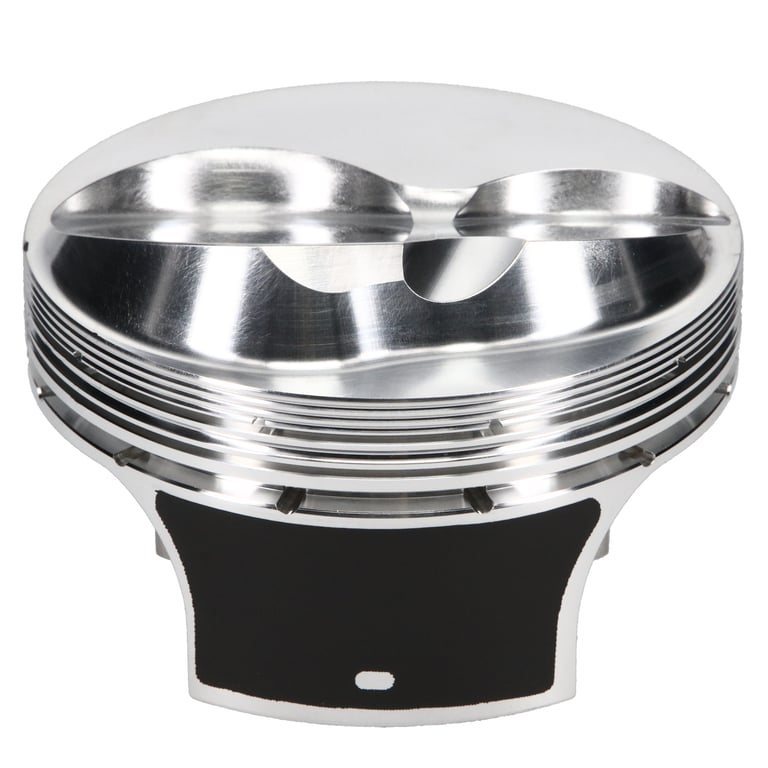

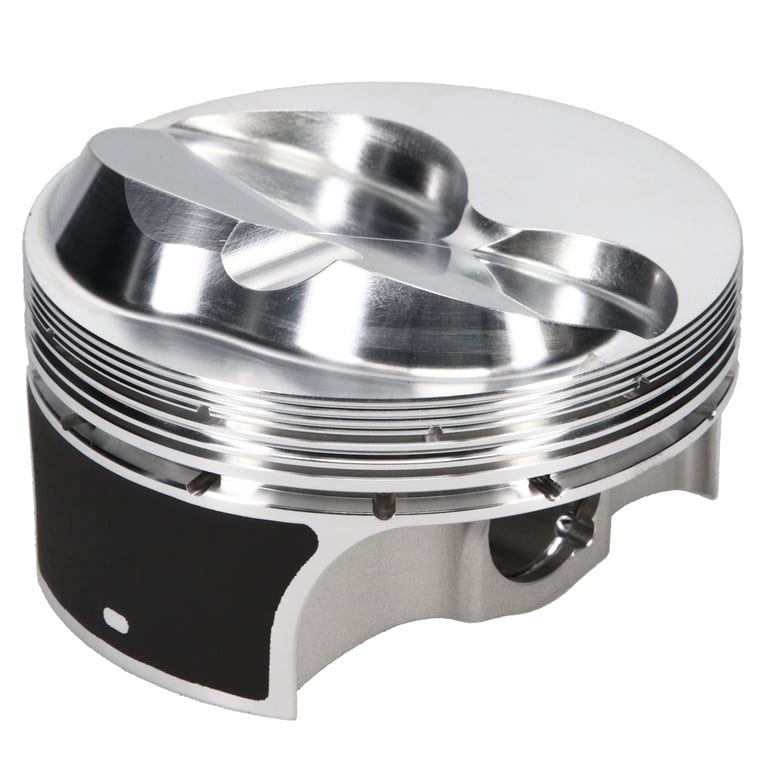

Piston - Small Block Dome - Forged - Dome - 4.030 in Bore - 1.250 in Compression Height - 0.043 in x 0.043 in x 3.0 mm Ring Grooves - Plus 14.00 cc - Small Block Chevy - Set of 8

Manufacturer Part #: 310562

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	PRO ACTION 23 DEG
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.030
Sub Type	Small Block Dome
Piston Head Type	Dome
Compression Height	1.250
Unit	Set of 8
Piston Volume	14.00
Material	2618
Piston Quantity	8
Specifications	Forged, Dome, 4.030 in Bore, 1.250 in Compression Height, 0.043 in x 0.043 in x 3.0 mm Ring Grooves, Plus 14.00 cc, Small Block Chevy
Forging Type	FSR
Piston Average Weight	442
Ring Set Included	No
Top Compression Ring Thickness	0.0435
Second Compression Ring Thickness	0.0440
Oil Ring Thickness	0.119
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.250
Wrist Pin Wall Thickness	0.170
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.030 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
