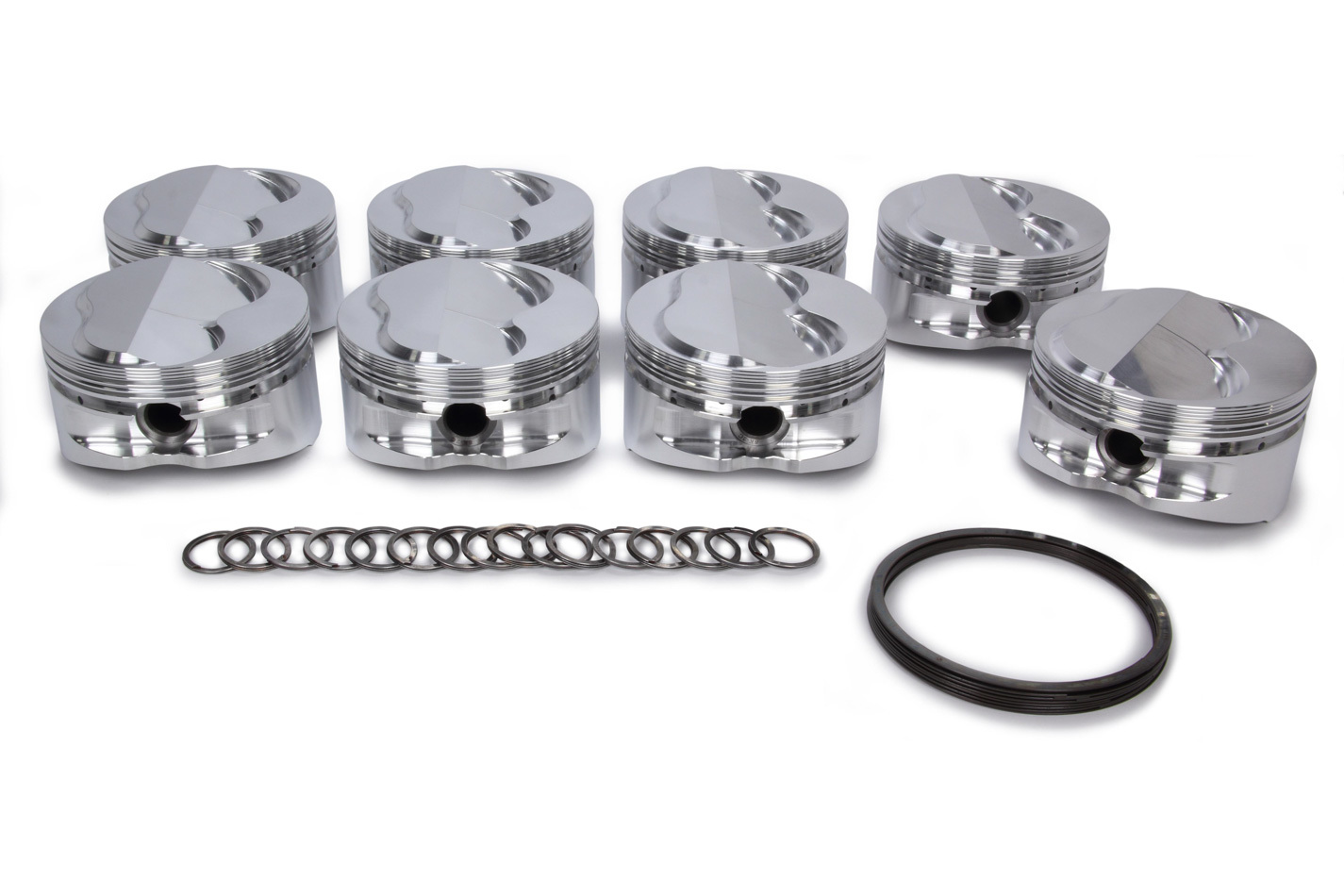

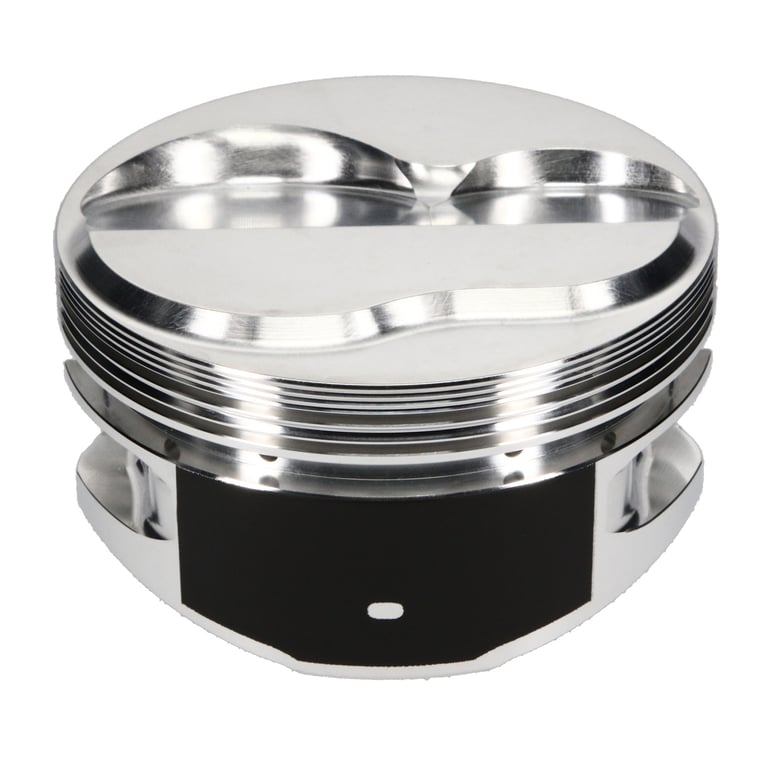

SBC 400 Domed Piston Set 18 Degree

Name: SBC 400 Domed Piston Set 18 Degree
SKU: 213123
Price: 956.37 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 213123

Old price: $1,076.99

Price: $956.37

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Piston - Small Block Dome - Forged - Dome - 4.165 in Bore - 1.125 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Plus 3.30 cc - Small Block Chevy - Each

Manufacturer Part #: 213123

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	CHEVROLET 18 DEG
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.165
Sub Type	Small Block Dome
Piston Head Type	Dome
Compression Height	1.125
Unit	Each
Piston Volume	3.30
Material	2618
Piston Quantity	8
Specifications	Forged, Dome, 4.165 in Bore, 1.125 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Plus 3.30 cc, Small Block Chevy
Forging Type	Round
Piston Average Weight	479
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.218
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.750
Wrist Pin Wall Thickness	0.150
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.165 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
