SBC Dome Piston Set 4.145 Bore +2.0cc

Name: SBC Dome Piston Set 4.145 Bore +2.0cc
SKU: 170762
Price: 1024.84 USD
Availability: OutOfStock

Manufacturer: JE Pistons

Manufacturer part number: 170762

Old price: $1,154.99

Price: $1,024.84

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

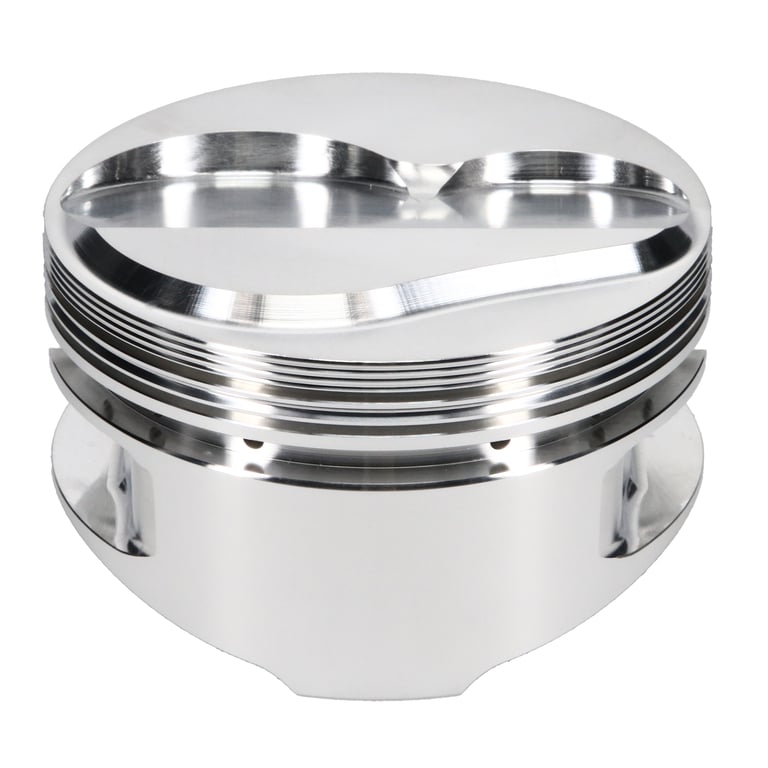

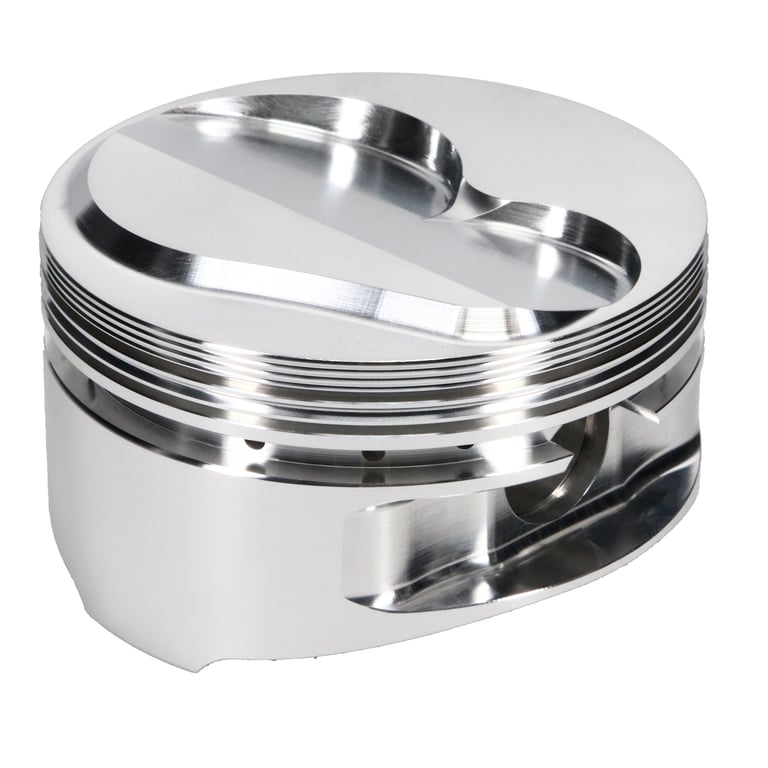

Piston - Forged - Dome - 4.145 in Bore - 1.100 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Plus 2.0 cc - Small Block Chevy - Set of 8

Manufacturer Part #: 170762

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	BRODIX -12 15 DEG
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.145
Sub Type	Forged
Piston Head Type	Dome
Compression Height	1.100
Unit	Set of 8
Piston Volume	2.60
Material	2618
Piston Quantity	8
Specifications	Dome, 4.145 in Bore, 1.100 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Plus 2.0 cc, Small Block Chevy
Forging Type	Round
Piston Average Weight	470
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.218
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.750
Wrist Pin Wall Thickness	0.150
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.145 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
