SBC Dome Piston Set 4.155 Bore +2.60cc

Name: SBC Dome Piston Set 4.155 Bore +2.60cc
SKU: 170763
Price: 1024.84 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 170763

Old price: $1,154.99

Price: $1,024.84

PRICE BREAKS - The more you buy, the more you save

Quantity	2+
Price	$1,019.34

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

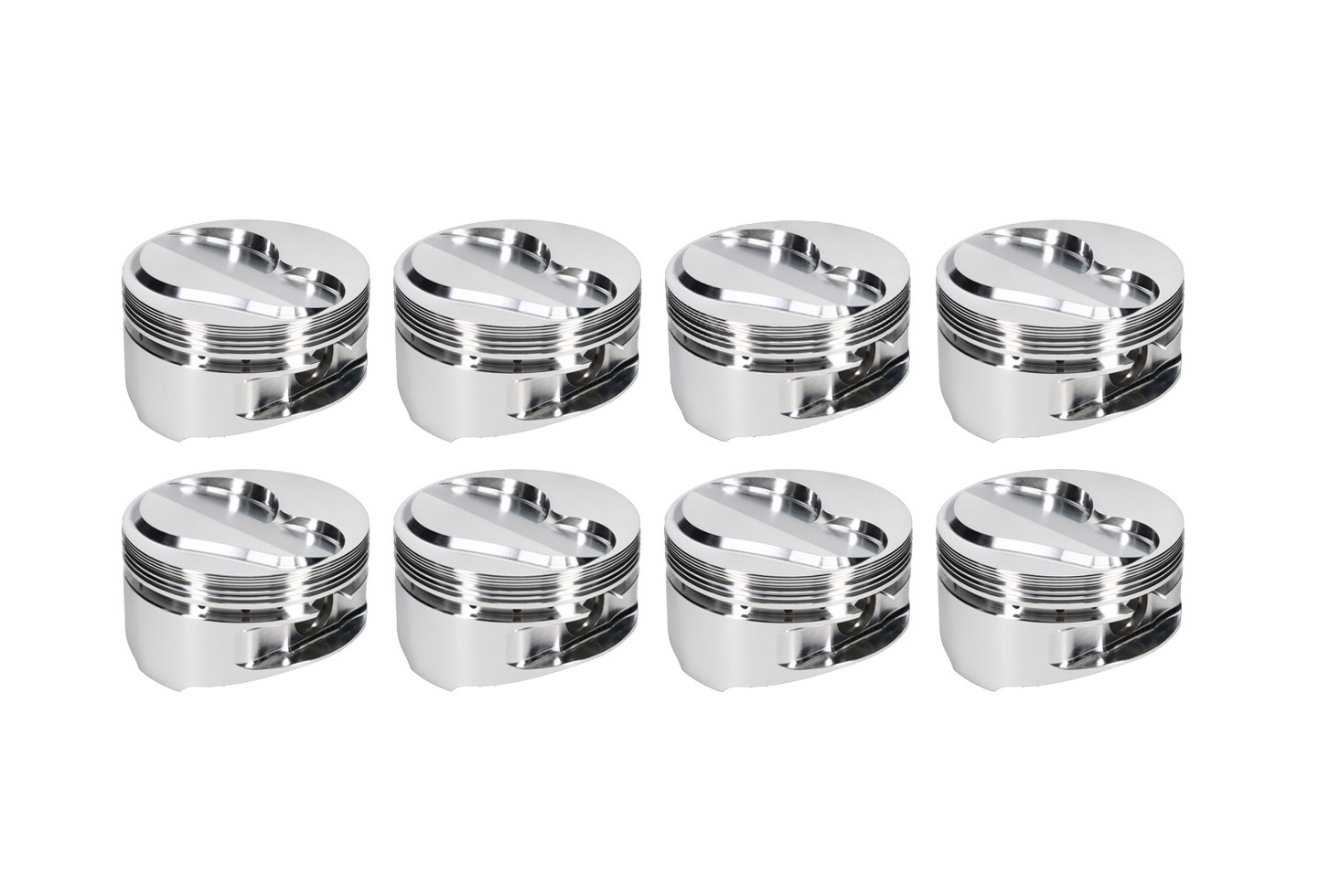

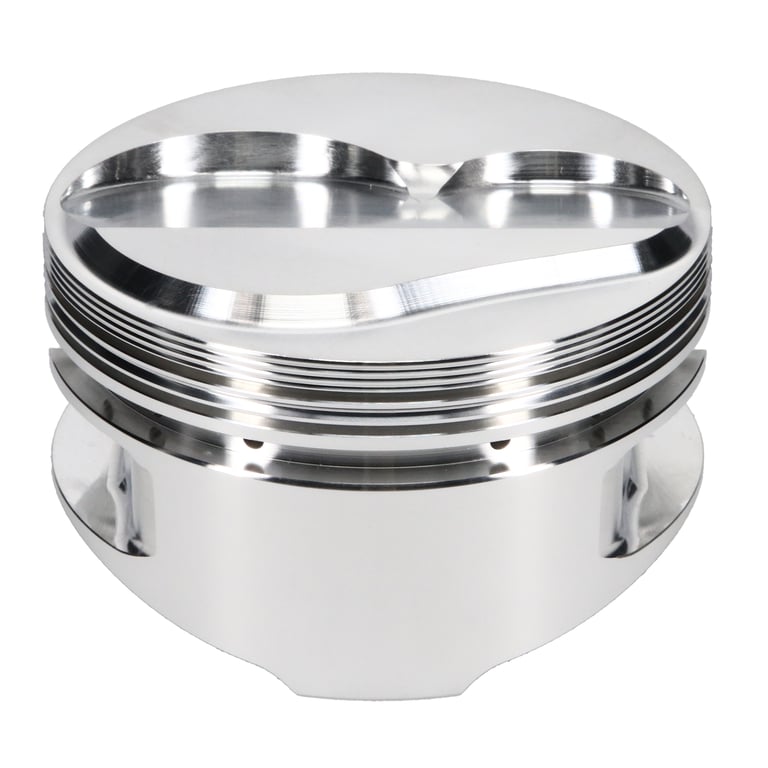

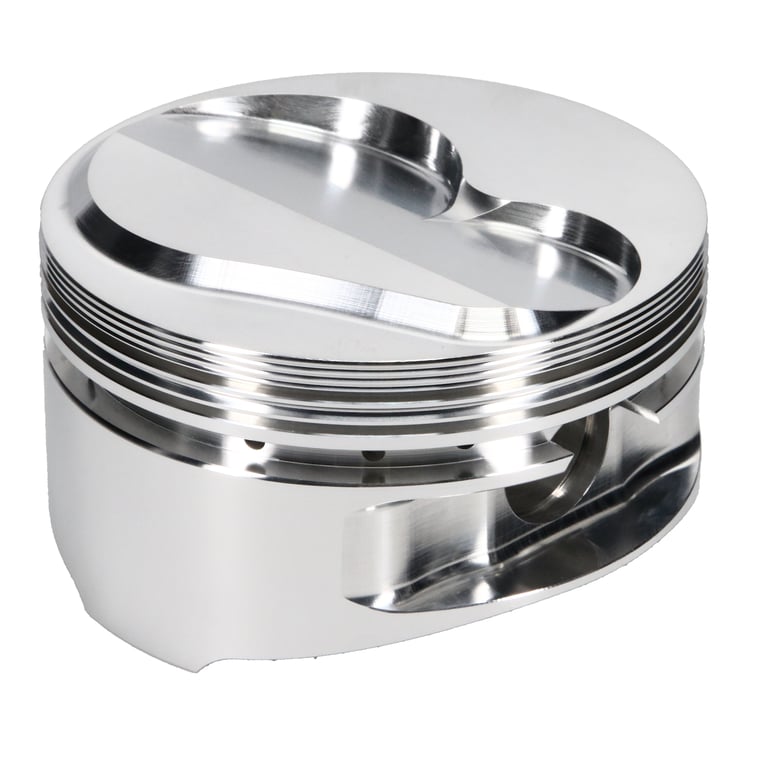

Piston - 12TM Series - Forged - 4.155 in Bore - 1.100 in Compression Height - 0.064 x 0.064 x 0.218 in Ring Grooves - Plus 2.60 cc - Small Block Chevy - Set of 8

Note: 3.800 Stroke 6.000 Rod Length 1.100 CH

Manufacturer Part #: 170763

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	BRODIX -12 15 DEG
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.155
Sub Type	12TM Series
Piston Head Type	Dome
Compression Height	1.100
Unit	Set of 8
Piston Volume	2.60
Material	2618
Piston Quantity	8
Specifications	Forged, 4.155 in Bore, 1.100 in Compression Height, 0.064 x 0.064 x 0.218 in Ring Grooves, Plus 2.60 cc, Small Block Chevy
Forging Type	Round
Piston Average Weight	462
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.218
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.750
Wrist Pin Wall Thickness	0.150
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.155 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
