SBC Domed Piston Set 4.000 Bore +13.5cc

Name: SBC Domed Piston Set 4.000 Bore +13.5cc
SKU: 217240
Price: 927.40 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 217240

Old price: $1,043.99

Price: $927.40

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

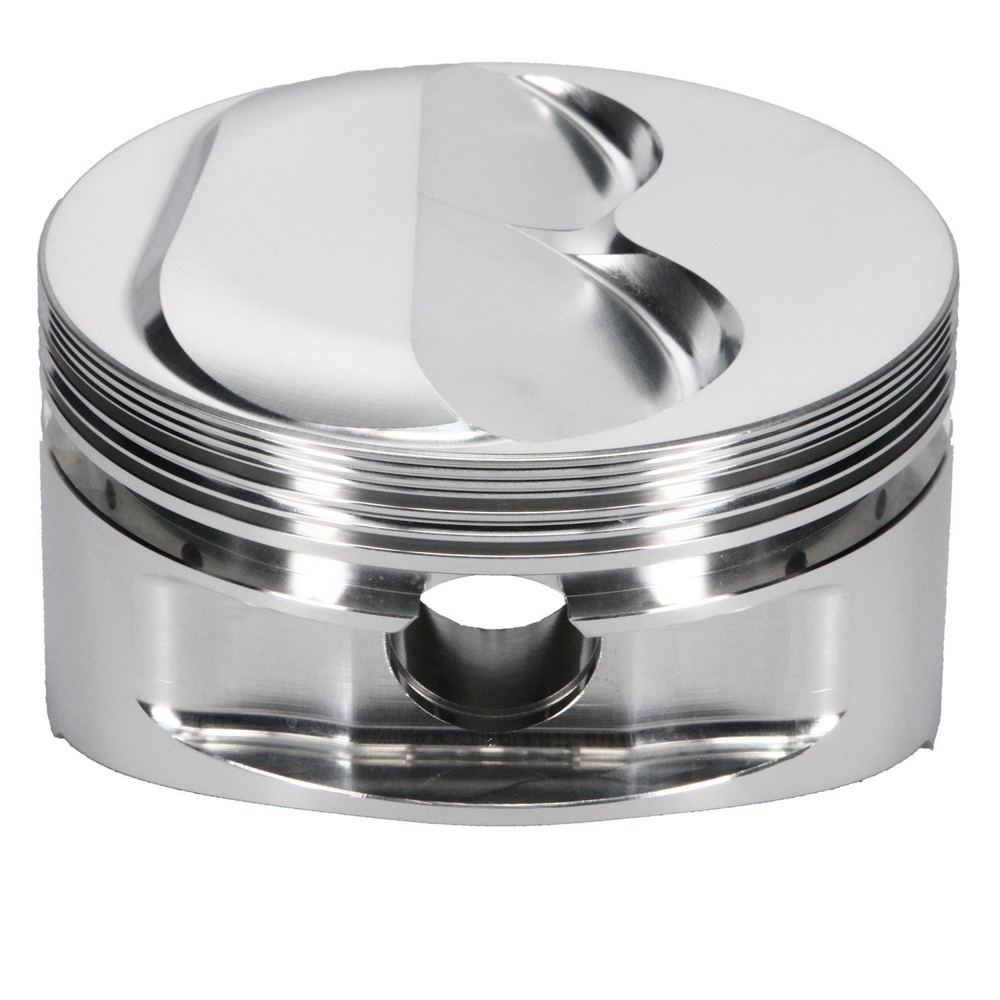

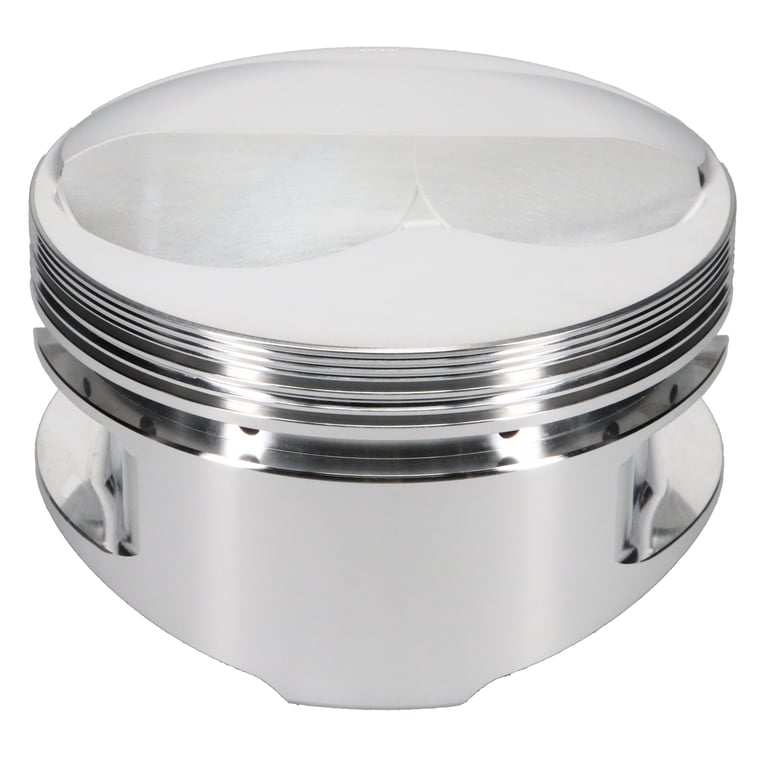

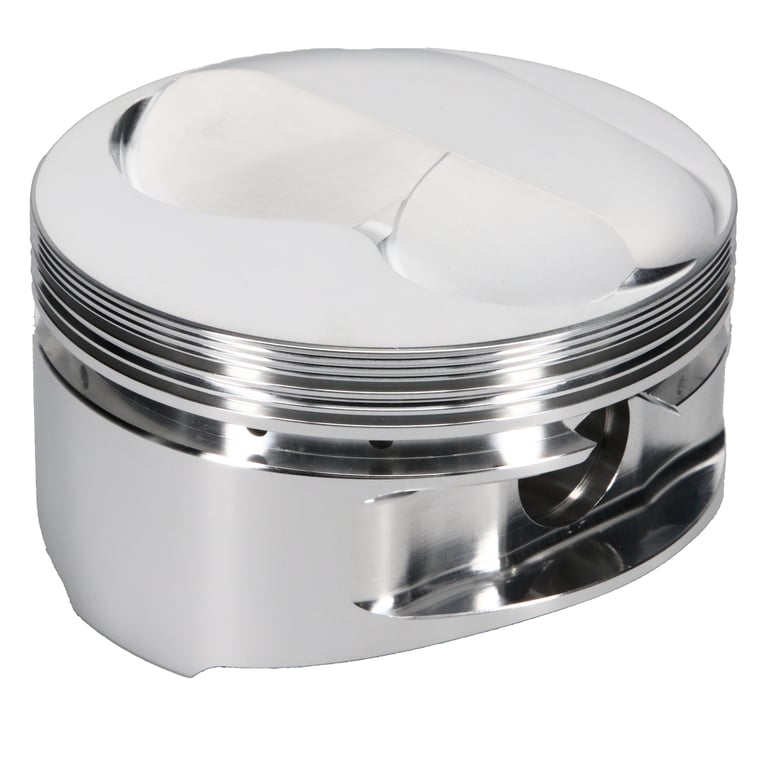

Piston - Dome - 4.000 in Bore - 1.250 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Plus 13.50 cc - Small Block Chevy - Set of 8

Manufacturer Part #: 217240

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	CHEVROLET 23 DEG 20/30
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.000
Sub Type	Dome
Piston Head Type	Dome
Compression Height	1.250
Unit	Set of 8
Piston Volume	13.50
Material	2618
Piston Quantity	8
Specifications	4.000 in Bore, 1.250 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Plus 13.50 cc, Small Block Chevy
Forging Type	Round
Piston Average Weight	447
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.188
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.750
Wrist Pin Wall Thickness	0.150
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.000 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
