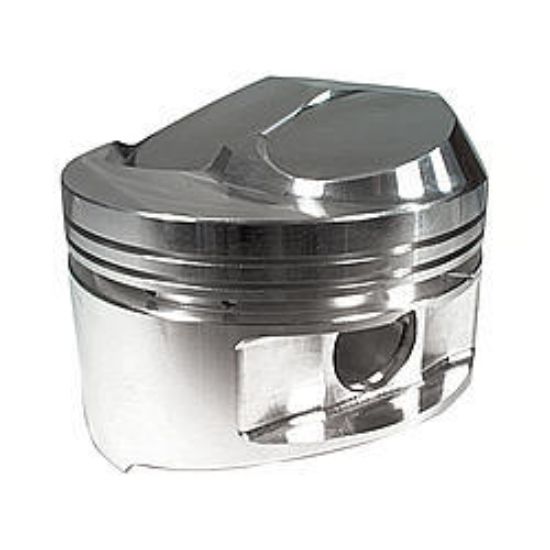

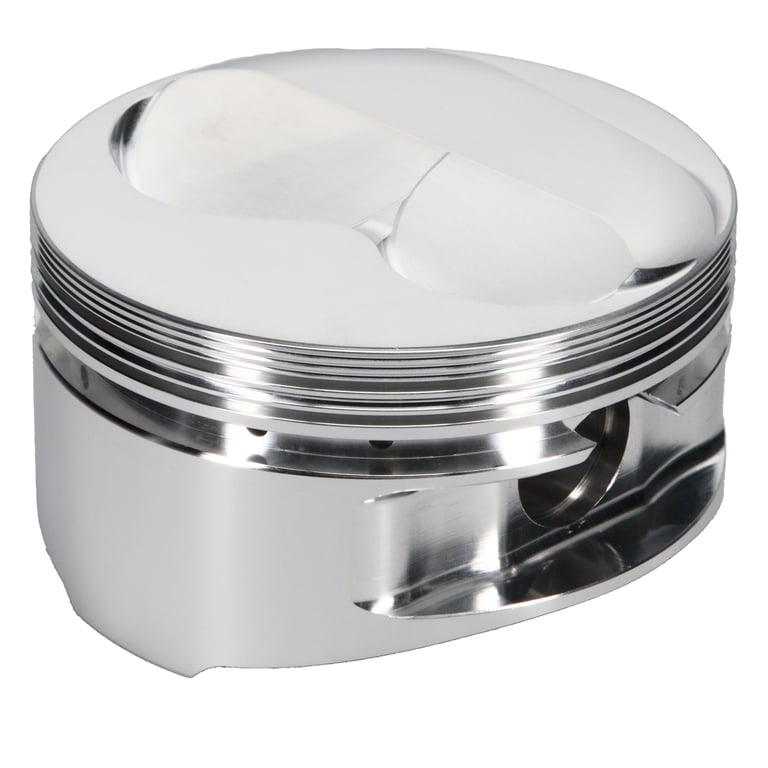

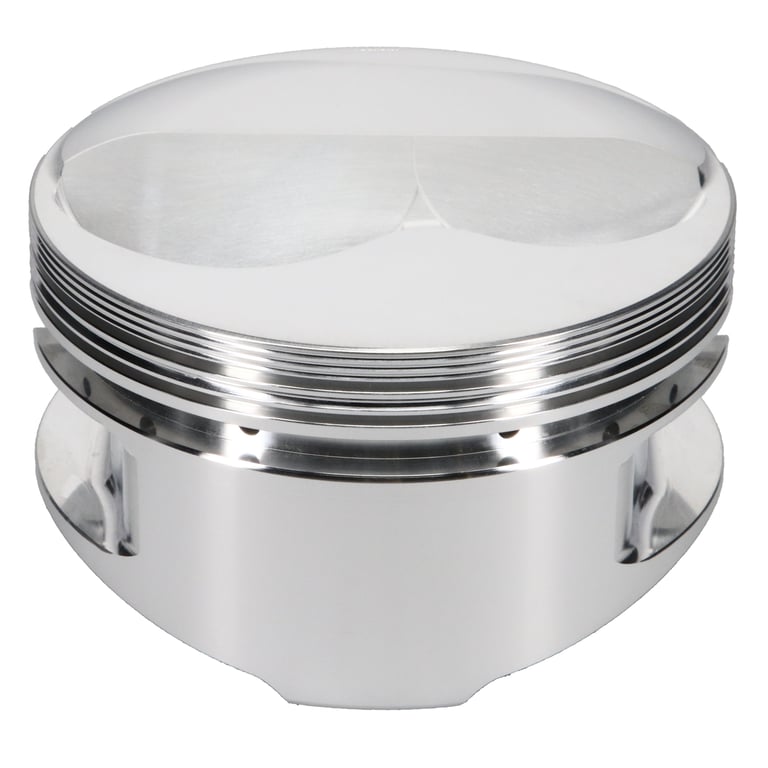

SBC Domed Piston Set 4.125 Bore +10.8cc

Name: SBC Domed Piston Set 4.125 Bore +10.8cc
SKU: 182058
Price: 956.37 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 182058

Old price: $1,076.99

Price: $956.37

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Piston - Small Block Dome - Forged - Dome - 4.125 in Bore - 1.125 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Plus 10.80 cc - Small Block Chevy - Set of 8

Manufacturer Part #: 182058

Products specifications

Attribute name	Attribute value
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Product Type	Piston, Engine Piston Kit
Cylinder Head	CHEVROLET 23 DEG 20/30
Sub Type	Small Block Dome
Bore Diameter	4.125
Piston Head Type	Dome
Unit	Set of 8
Compression Height	1.125
Piston Volume	10.80
Material	2618
Specifications	Forged, Dome, 4.125 in Bore, 1.125 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Plus 10.80 cc, Small Block Chevy
Piston Quantity	8
Forging Type	Round
Piston Average Weight	444
Wrist Pin Wall Thickness	0.150
Wrist Pin Length	2.750
Wrist Pin Outer Diameter	0.927
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Oil Ring Thickness	0.218
Second Compression Ring Thickness	0.0640
Top Compression Ring Thickness	0.0640
Ring Set Included	No
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.125 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
