SBC Domed Piston Set 4.125 Bore +3.3cc

Name: SBC Domed Piston Set 4.125 Bore +3.3cc
SKU: 213109
Price: 956.37 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 213109

Old price: $1,076.99

Price: $956.37

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

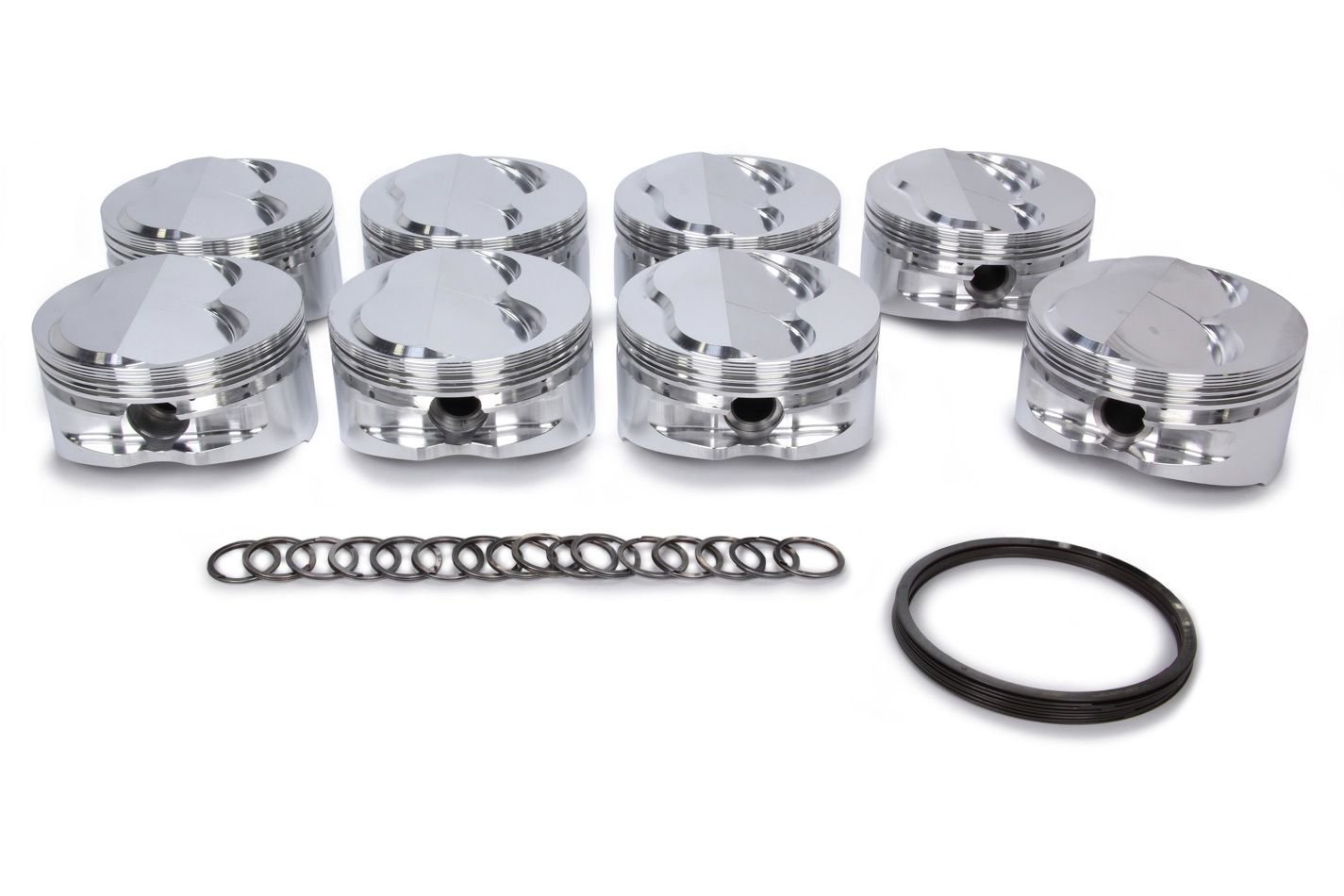

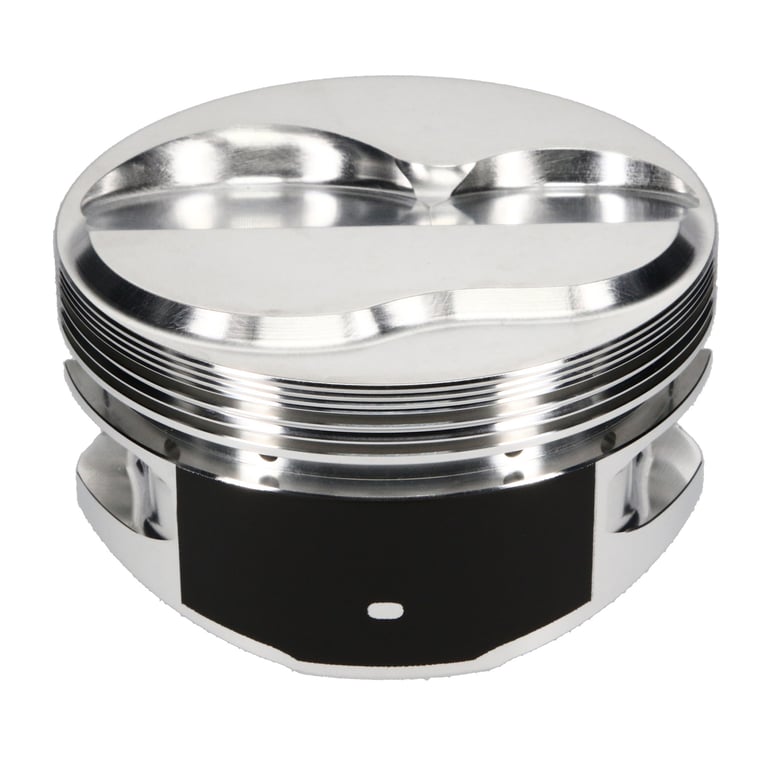

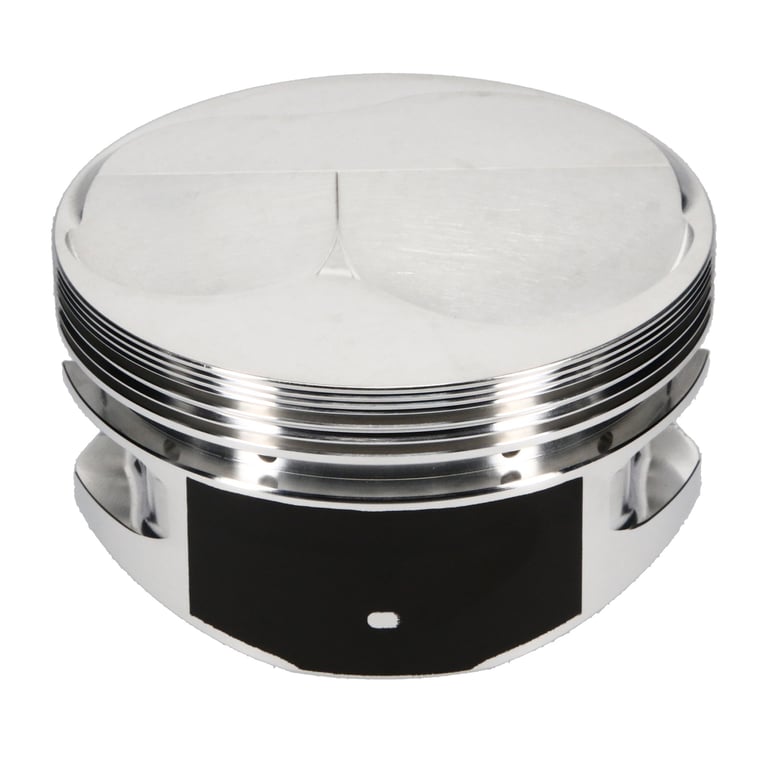

Piston - Dome - 4.125 in Bore - 1.062 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Plus 3.30 cc - Small Block Chevy - Set of 8

Manufacturer Part #: 213109

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	CHEVROLET 18 DEG
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.125
Sub Type	Dome
Piston Head Type	Dome
Compression Height	1.062
Unit	Set of 8
Piston Volume	3.30
Material	2618
Piston Quantity	8
Specifications	4.125 in Bore, 1.062 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Plus 3.30 cc, Small Block Chevy
Forging Type	Round
Piston Average Weight	450
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.218
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.750
Wrist Pin Wall Thickness	0.150
Category Hierarchy	Auto>JE Pistons>Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.125 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
