SBC Domed Piston Set 4.125 Bore +5.6cc

Name: SBC Domed Piston Set 4.125 Bore +5.6cc
SKU: 182033
Price: 956.37 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 182033

Old price: $1,076.99

Price: $956.37

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

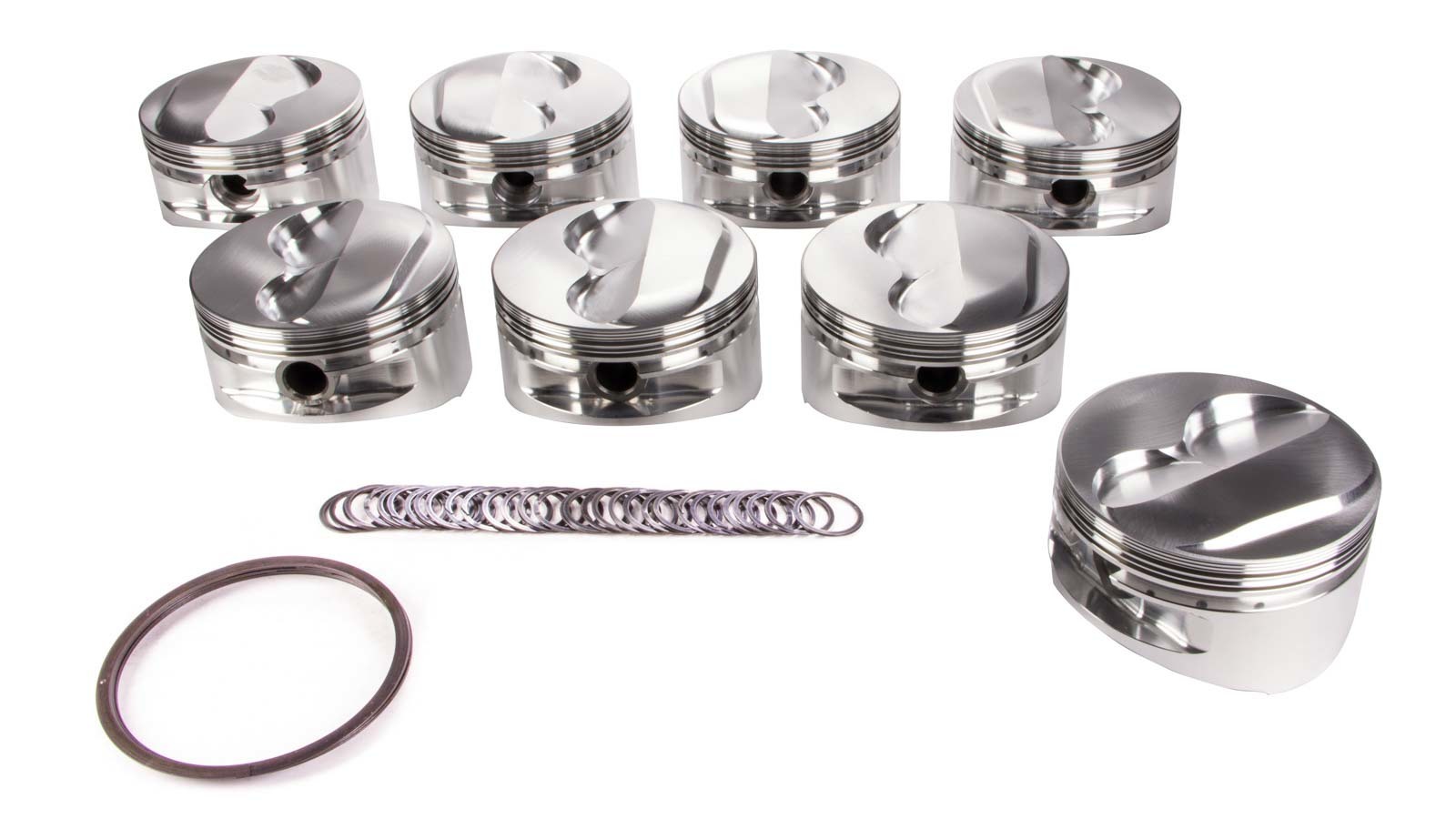

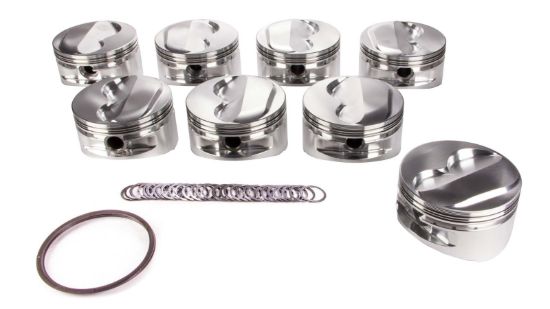

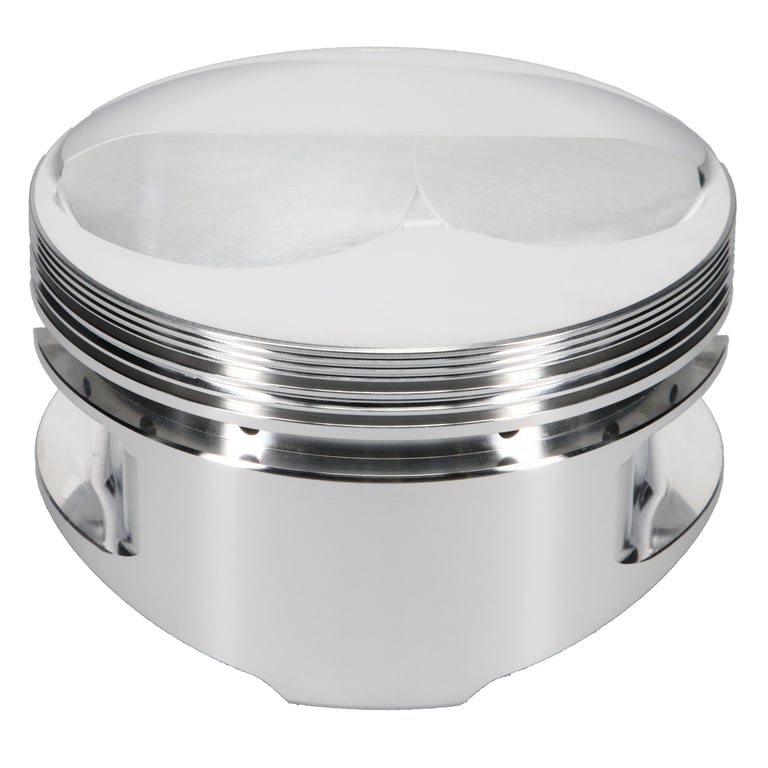

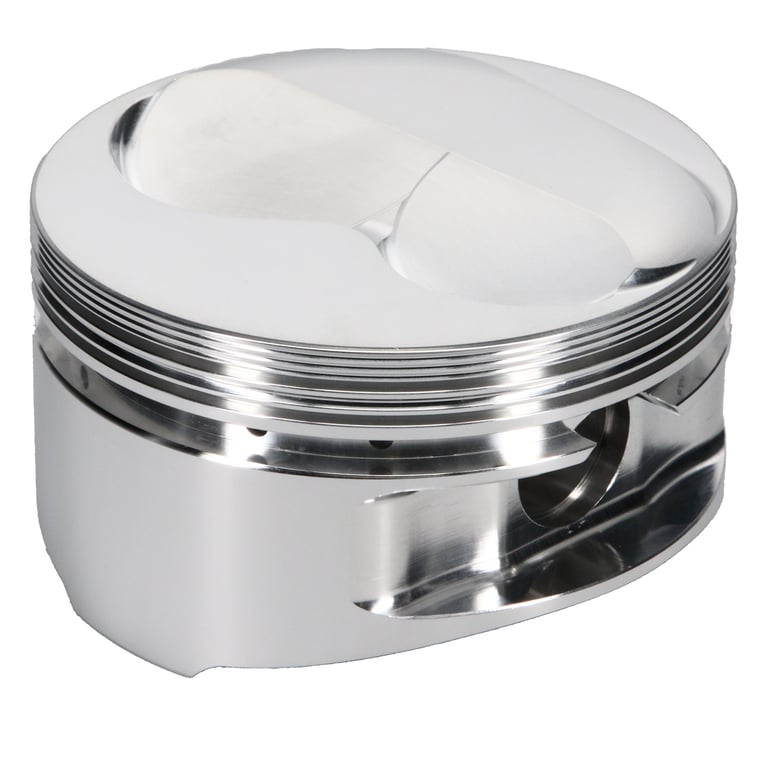

Piston - Small Block Dome - Forged - Dome - 4.125 in Bore - 1.062 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Plus 5.60 cc - Small Block Chevy - Set of 8

Manufacturer Part #: 182033

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	CHEVROLET 23 DEG 20/30
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.125
Sub Type	Small Block Dome
Piston Head Type	Dome
Compression Height	1.062
Unit	Set of 8
Piston Volume	5.60
Material	2618
Piston Quantity	8
Specifications	Forged, Dome, 4.125 in Bore, 1.062 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Plus 5.60 cc, Small Block Chevy
Forging Type	Round
Piston Average Weight	444
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.218
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.750
Wrist Pin Wall Thickness	0.150
Category Hierarchy	Auto>All Piston Kits
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.125 IN
EBAY Category ID	33623
Prop 65 (C, R or CR)	CR
Country of Origin	US
Condition	New
