SBC Domed Piston Set 4.165 Bore +5.6cc

Name: SBC Domed Piston Set 4.165 Bore +5.6cc
SKU: 182037
Price: 956.37 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 182037

Old price: $1,076.99

Price: $956.37

PRICE BREAKS - The more you buy, the more you save

Quantity	2+
Price	$950.88

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

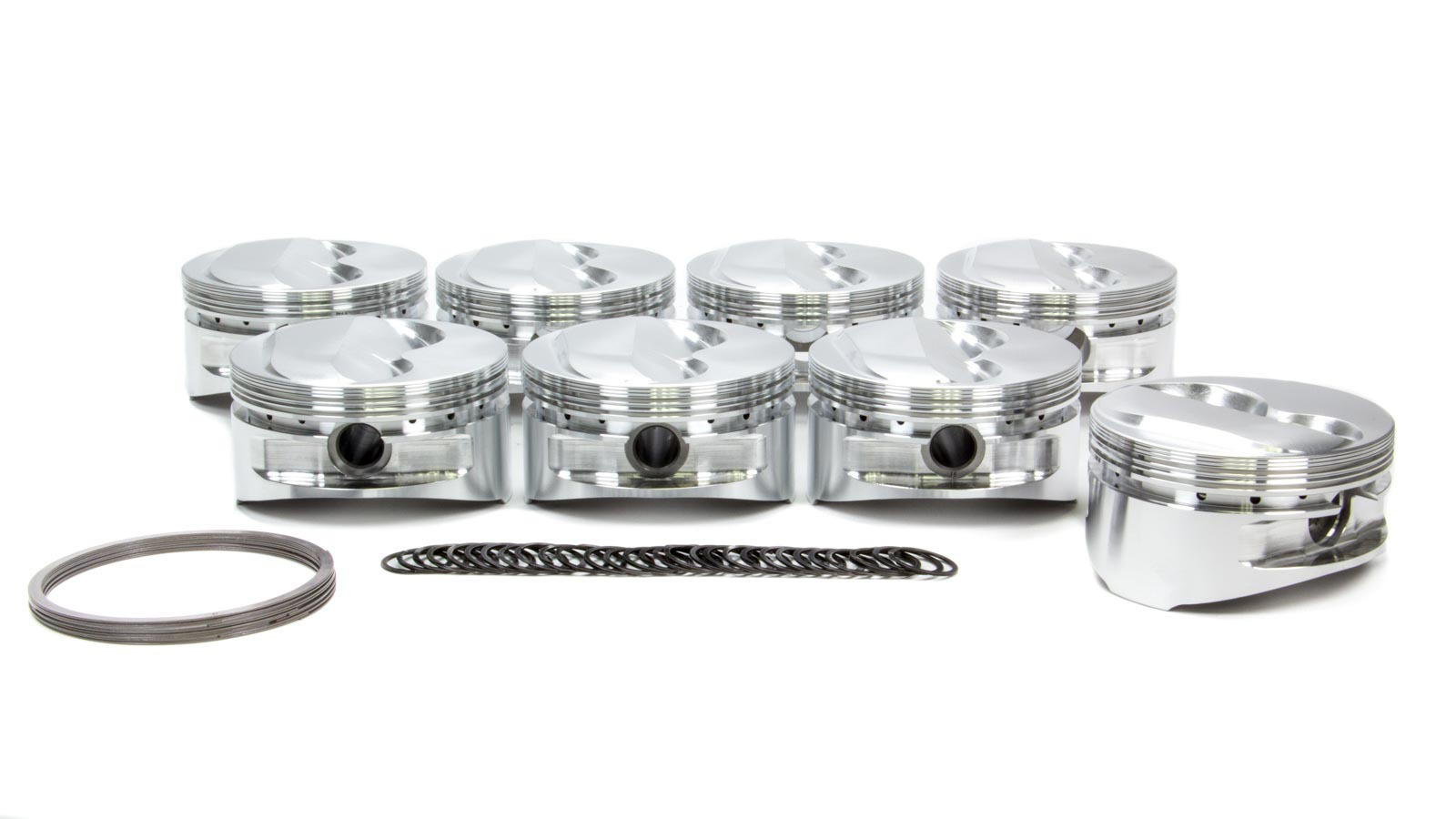

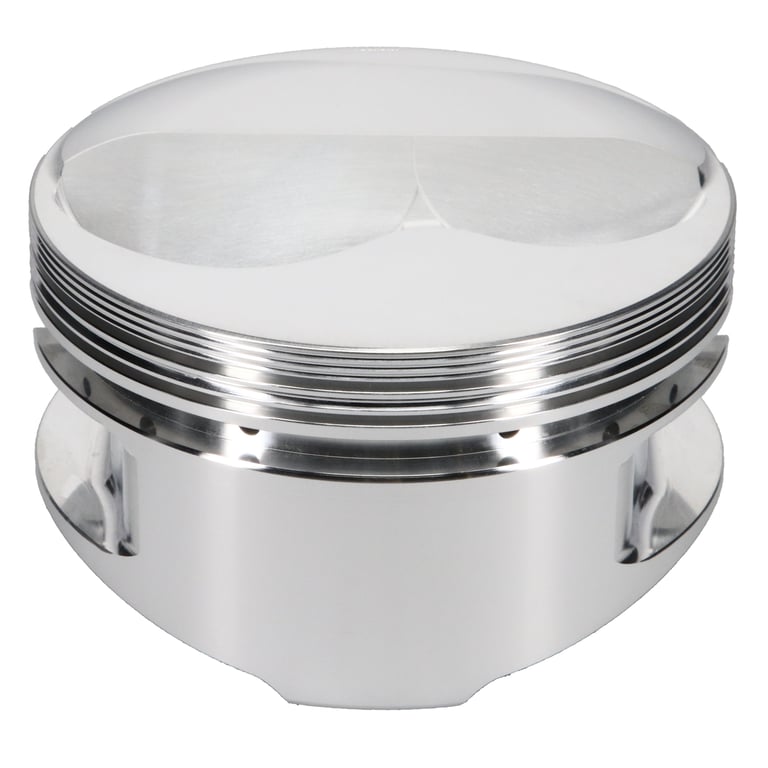

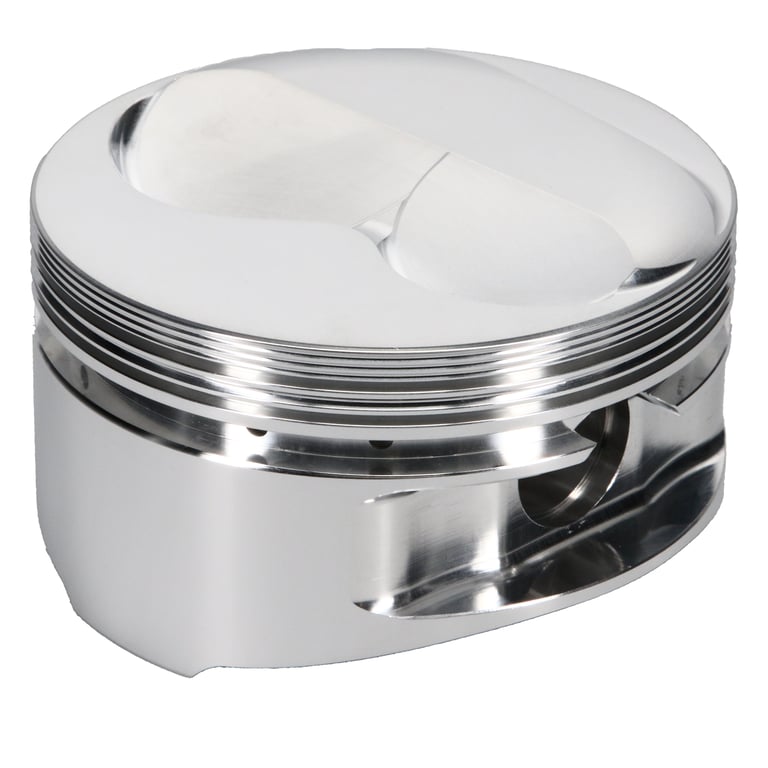

Piston - Small Block Dome - Forged - Dome - 4.165 in Bore - 1.062 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Plus 5.60 cc - Small Block Chevy - Set of 8

Manufacturer Part #: 182037

Products specifications

Attribute name	Attribute value
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Product Type	Piston, Engine Piston Kit
Cylinder Head	CHEVROLET 23 DEG 20/30
Sub Type	Small Block Dome
Bore Diameter	4.165
Piston Head Type	Dome
Unit	Set of 8
Compression Height	1.062
Piston Volume	5.60
Material	2618
Specifications	Forged, Dome, 4.165 in Bore, 1.062 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Plus 5.60 cc, Small Block Chevy
Piston Quantity	8
Forging Type	Round
Piston Average Weight	469
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.218
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.750
Wrist Pin Wall Thickness	0.150
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.165 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
