SBC Domed Piston Set 4.185 Bore +10.8cc

Name: SBC Domed Piston Set 4.185 Bore +10.8cc
SKU: 207514
Price: 956.37 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 207514

Old price: $1,076.99

Price: $956.37

PRICE BREAKS - The more you buy, the more you save

Quantity	2+
Price	$950.88

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

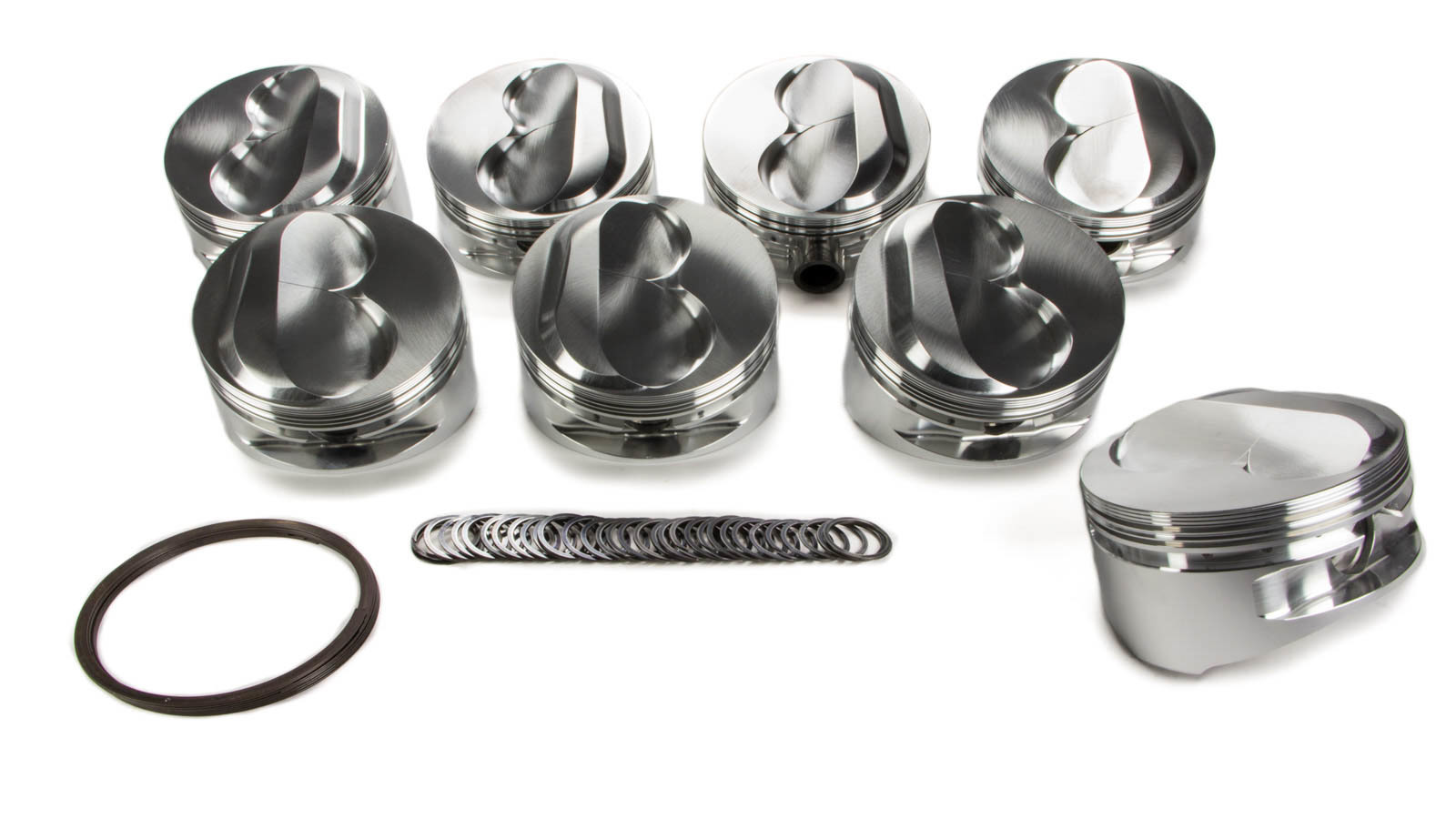

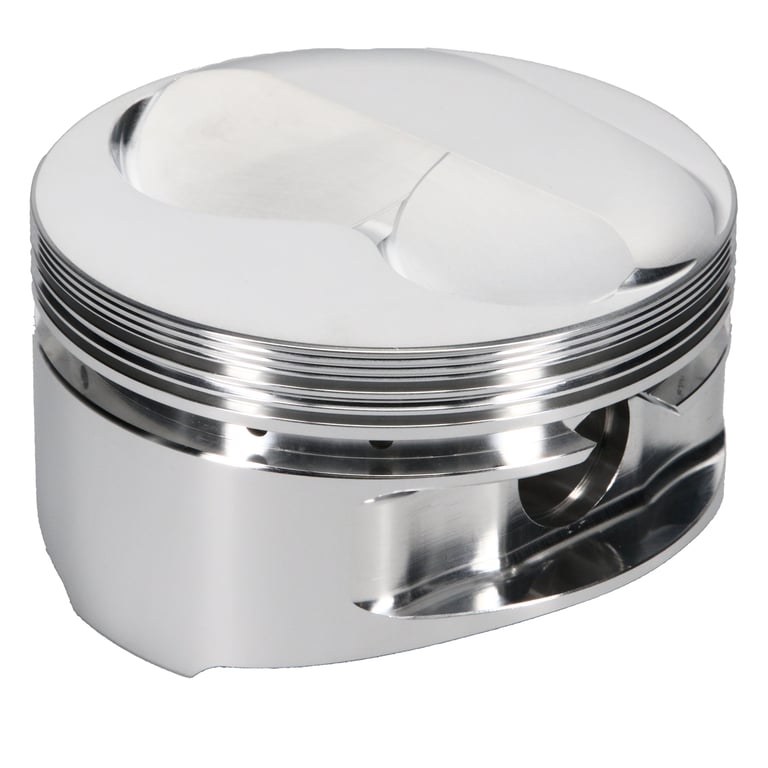

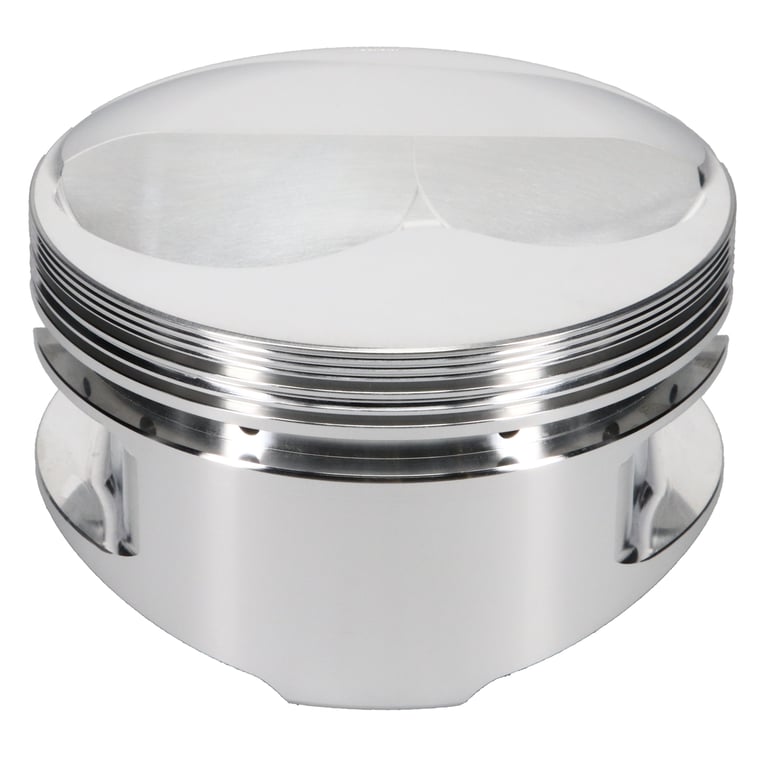

Piston - Small Block Dome - Forged - Dome - 4.185 in Bore - 1.062 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Plus 10.80 cc - Small Block Chevy - Set of 8

Manufacturer Part #: 207514

Products specifications

Attribute name	Attribute value
Bore Diameter	4.185
Piston Head Type	Dome
Product Type	Piston, Engine Piston Kit
Compression Height	1.062
Sub Type	Small Block Dome
Piston Volume	10.80
Material	2618
Unit	Set of 8
Piston Quantity	8
Forging Type	Round
Piston Average Weight	466
Specifications	Forged, Dome, 4.185 in Bore, 1.062 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Plus 10.80 cc, Small Block Chevy
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.218
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.750
Wrist Pin Wall Thickness	0.150
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Cylinder Head	CHEVROLET 23 DEG 20/30
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.185 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
