SBC Domed Piston Set 4.185 Bore +10.9cc

Name: SBC Domed Piston Set 4.185 Bore +10.9cc
SKU: 207513
Price: 956.37 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 207513

Old price: $1,076.99

Price: $956.37

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

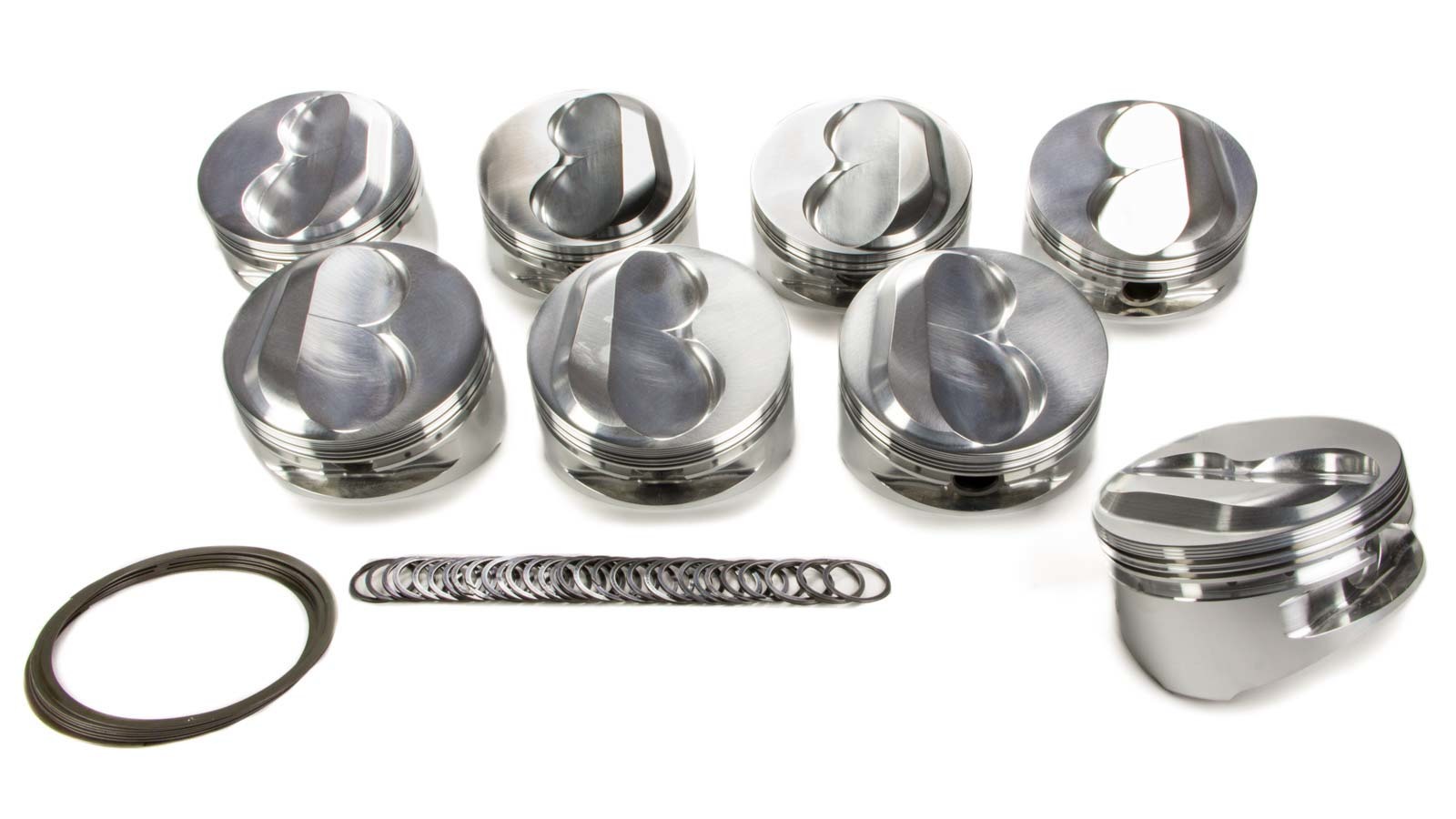

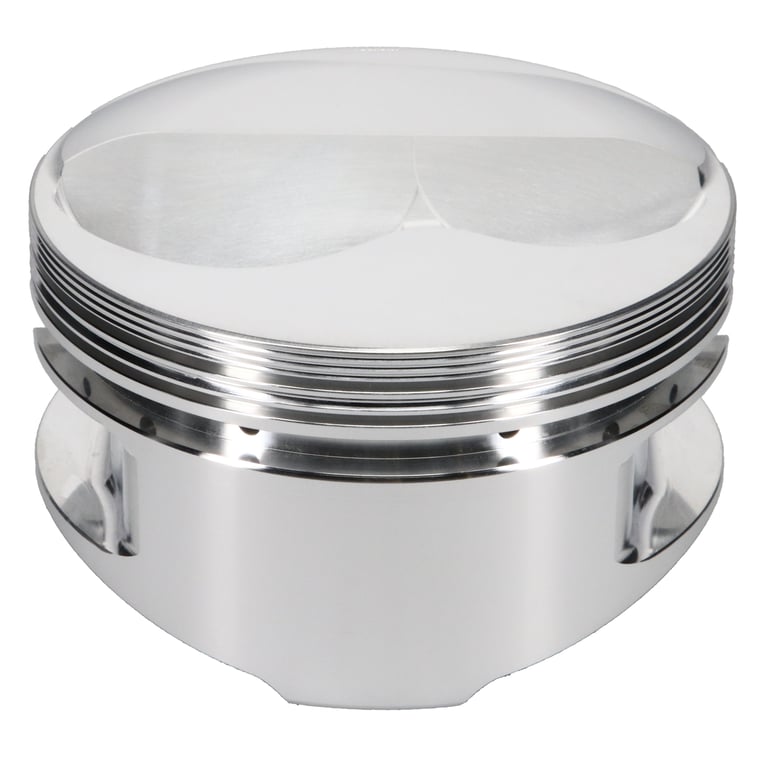

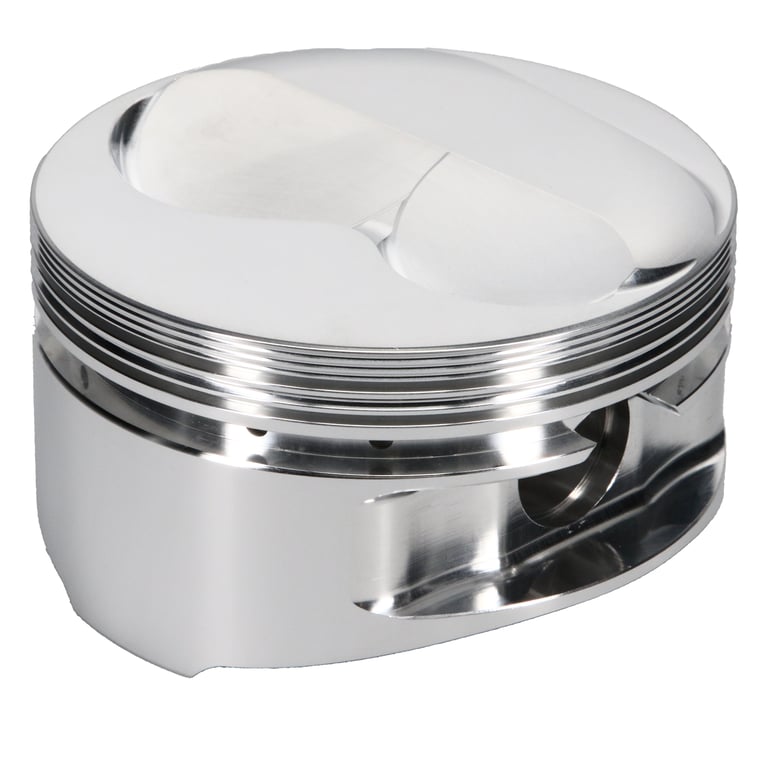

Piston - Small Block Dome - Forged - Dome - 4.185 in Bore - 1.000 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Plus 10.90 cc - Small Block Chevy - Set of 8

Manufacturer Part #: 207513

Products specifications

Attribute name	Attribute value
Cylinder Head	CHEVROLET 23 DEG 20/30
Bore Diameter	4.185
Product Type	Piston, Engine Piston Kit
Piston Head Type	Dome
Sub Type	Small Block Dome
Compression Height	1.000
Piston Volume	10.90
Unit	Set of 8
Material	2618
Piston Quantity	8
Forging Type	Round
Specifications	Forged, Dome, 4.185 in Bore, 1.000 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Plus 10.90 cc, Small Block Chevy
Piston Average Weight	455
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.218
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.750
Wrist Pin Wall Thickness	0.150
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.185 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
