SBC Engine Block 1PC 9.025 Deck 4.000 Bore

Name: SBC Engine Block 1PC 9.025 Deck 4.000 Bore
SKU: BPP12110353
Price: 2216.87 USD
Availability: OutOfStock

Manufacturer: BluePrint Engines

Manufacturer part number: BPP12110353

Old price: $2,299.99

Price: $2,216.87

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

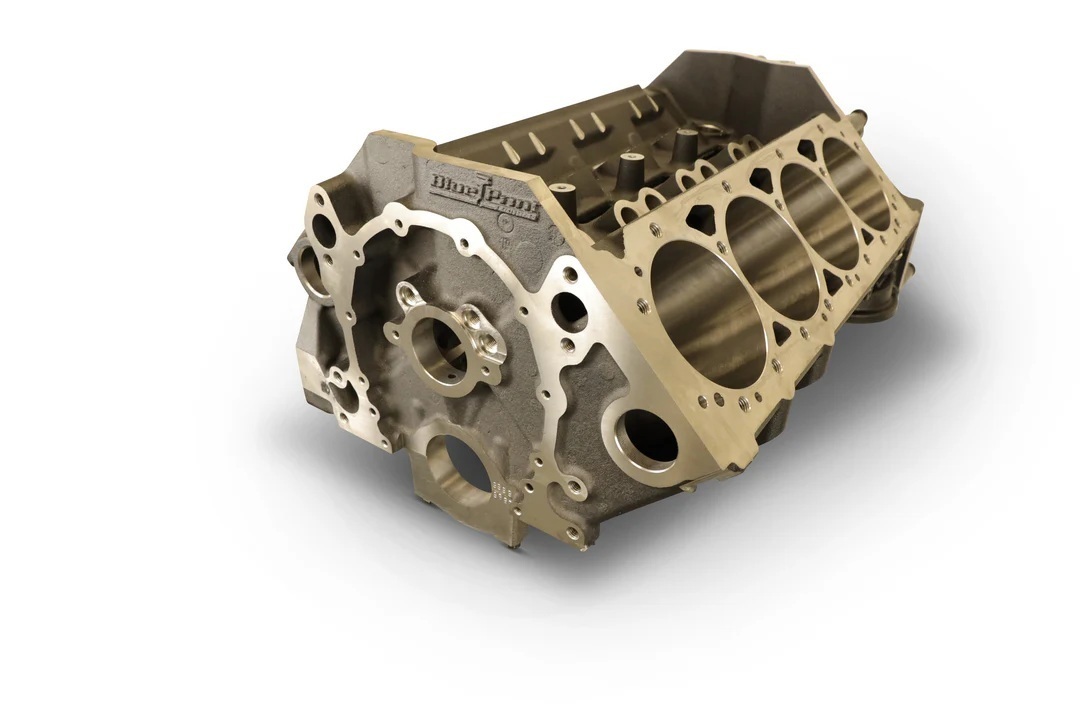

Engine - Bare Block - 4.000 in Bore - 9.025 in Deck - 350 Main - 4-Bolt Main - 1-Piece Seal - Cast Iron Main Caps - Cast Iron - Natural - Small Block Chevy - Each

Manufacturer Part #: BPP12110353

Products specifications

Attribute name	Attribute value
Cylinder Wall Thickness	.230" Nominal @ Max Bore
Water Jacket Style	Siamese
Product Type	Engine
Cylinder Skirt Length	5.800" Nominal
Material	Cast Iron
Sub Type	Bare Block
Deck Height	9.025" +.005" / -.000"
Finish	Natural
Deck Thickness:	.600" Nominal
Unit	Each
Freeze / Core Plugs	1-5/8" x 10
Head Bolt Threads	7/16-14 UNC
Lifter Bores	.8437" +/- .0003"
Specifications	4.000 in Bore, 9.025 in Deck, 350 Main, 4-Bolt Main, 1-Piece Seal, Cast Iron Main Caps, Small Block Chevy
Lifter Retainer (If Not Using Tie Bar Lifters)	OEM W/Roller Provisions
Main Bearing Bore (Line Honed)	350 Main - 2.6402" - 2.6410"
Main Cap Bolts	7/16-14 Inner / 3/8-16 splayed
Main Fastener Tensile Strength	180,000 to 210,000 PSI
P1 Main Stud Kit P/N:	TBD
Arp Main Stud Kit P/N	TBD
Material (Block)	EN-GJL-250 Iron
Oil System	Priority Main
Oil Pump	OEM
Oil Filter	OEM
Oil Pan	OEM
Fuel Pump	OEM
Rear Main Seal	1 piece
Starter	OEM
Stroke (Max)	Cast in clearance 3.875"
Timing Cover	OEM
Weight With Main Caps	170-190lbs
Cubic Inch (Max)	454
Prop 65 Y/N Flag	Yes
Cam Retaining Plate	OEM
Cylinder Bore (Rough)	3.995" to 3.997"
Cam Drive / Timing Set	OEM equivalent
Camshaft Position	OEM
Cam Bearings	Durabond GMP-8
Cam Bearing Bore Id	2.000"+/- .001"
Cylinder Bore (Max)	4.250"
Quantity	Sold Individually
Main Bearing Caps	Ductile Cast Iron 4-Bolt Splayed
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Country of Origin	US
Condition	New
