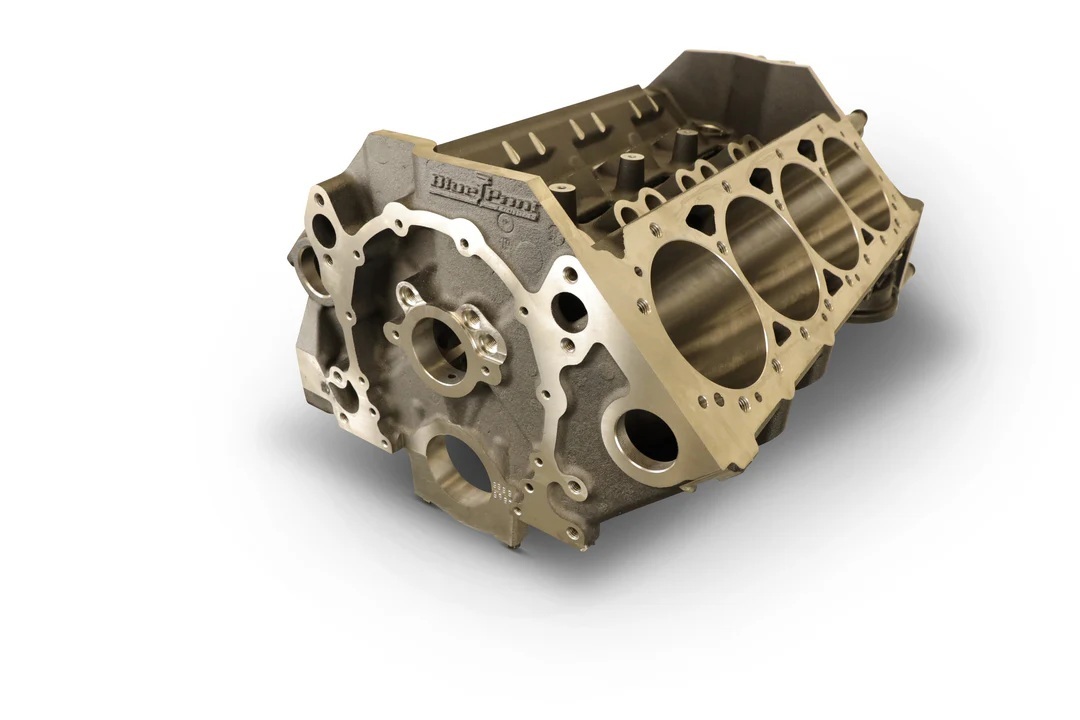

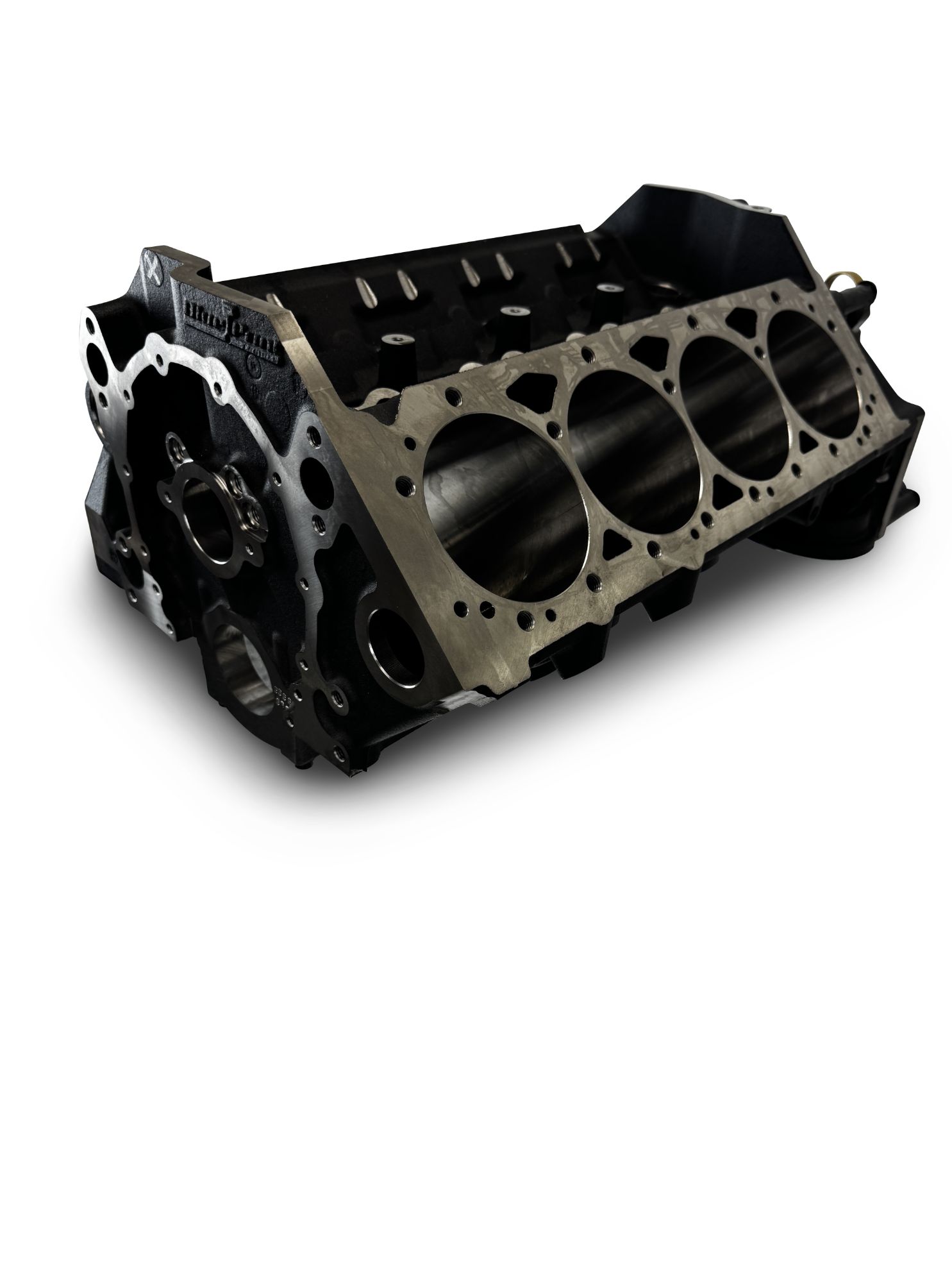

SBC Engine Block 2PC 9.025 Deck 4.000 Bore

Name: SBC Engine Block 2PC 9.025 Deck 4.000 Bore
SKU: BPP12110344
Price: 2216.87 USD
Availability: OutOfStock

Manufacturer: BluePrint Engines

Manufacturer part number: BPP12110344

Old price: $2,299.99

Price: $2,216.87

PRICE BREAKS - The more you buy, the more you save

Quantity	2+	4+	6+	12+
Price	$2,170.13	$2,146.76	$2,138.97	$2,131.18

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Engine - Bar Block - 4.000 in Bore - 9.025 in Deck - 350 Main - 4-Bolt Main - 2-Piece Seal - Cast Iron Main Caps - Cast Iron - Natural - Small Block Chevy - Each

Manufacturer Part #: BPP12110344

Products specifications

Attribute name	Attribute value
Cylinder Bore (Max)	4.250"
Water Jacket Style	Siamese
Product Type	Engine
Cylinder Skirt Length	5.800" Nominal
Material	Cast Iron
Sub Type	Bar Block
Deck Height	9.025" +.005" / -.000"
Finish	Natural
Deck Thickness:	.600" Nominal
Unit	Each
Freeze / Core Plugs	1-5/8" x 10
Head Bolt Threads	7/16-14 UNC
Lifter Bores	.8437" +/- .0003"
Specifications	4.000 in Bore, 9.025 in Deck, 350 Main, 4-Bolt Main, 2-Piece Seal, Cast Iron Main Caps, Small Block Chevy
Lifter Retainer (If Not Using Tie Bar Lifters)	OEM W/Roller Provisions
Main Bearing Bore (Line Honed)	350 Main - 2.6402" - 2.6410"
Main Cap Bolts	7/16-14 Inner / 3/8-16 splayed
Main Fastener Tensile Strength	180,000 to 210,000 PSI
P1 Main Stud Kit P/N:	TBD
Arp Main Stud Kit P/N	TBD
Material (Block)	EN-GJL-250 Iron
Oil System	Priority Main
Oil Pump	OEM
Oil Filter	OEM
Oil Pan	OEM
Fuel Pump	OEM
Rear Main Seal	2 piece
Starter	OEM
Stroke (Max)	Cast in clearance 3.875"
Timing Cover	OEM
Weight With Main Caps	170-190lbs
Cam Bearing Bore Id	2.000"+/- .001"
Prop 65 Y/N Flag	Yes
Main Bearing Caps	Ductile Cast Iron 4-Bolt Splayed
Cylinder Bore (Rough)	3.995" to 3.997"
Cam Bearings	Durabond GMP-8
Camshaft Position	OEM
Cam Drive / Timing Set	OEM equivalent
Cam Retaining Plate	OEM
Cubic Inch (Max)	454
Cylinder Wall Thickness	.230" Nominal @ Max Bore
Quantity	Sold Individually
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Country of Origin	US
Condition	New
