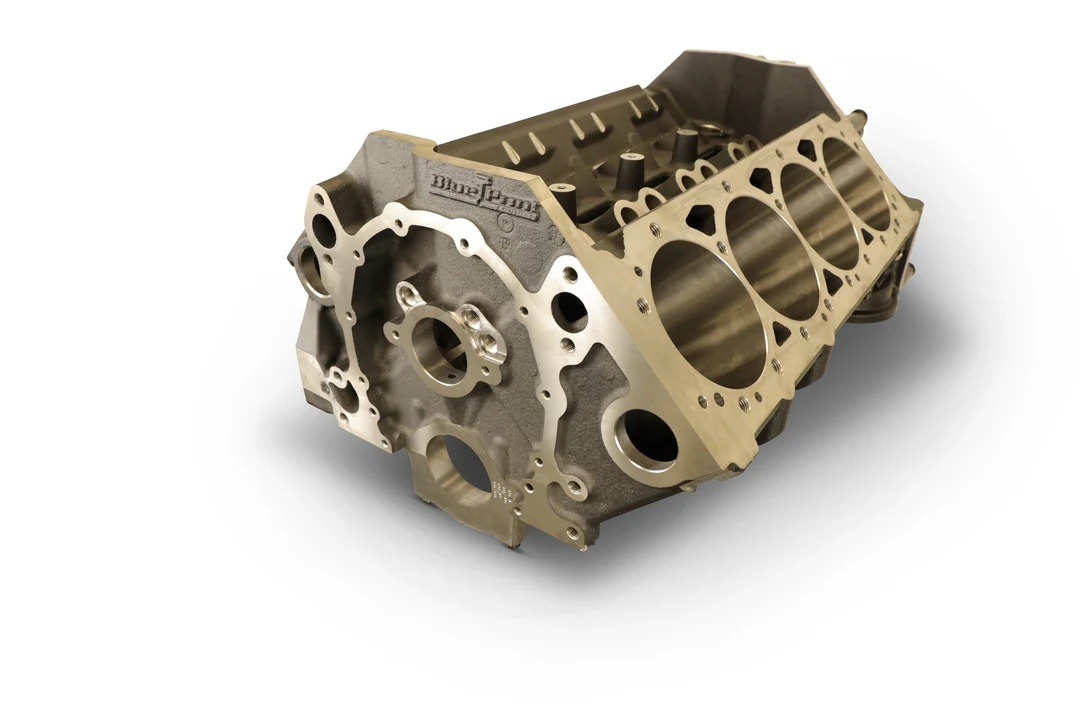

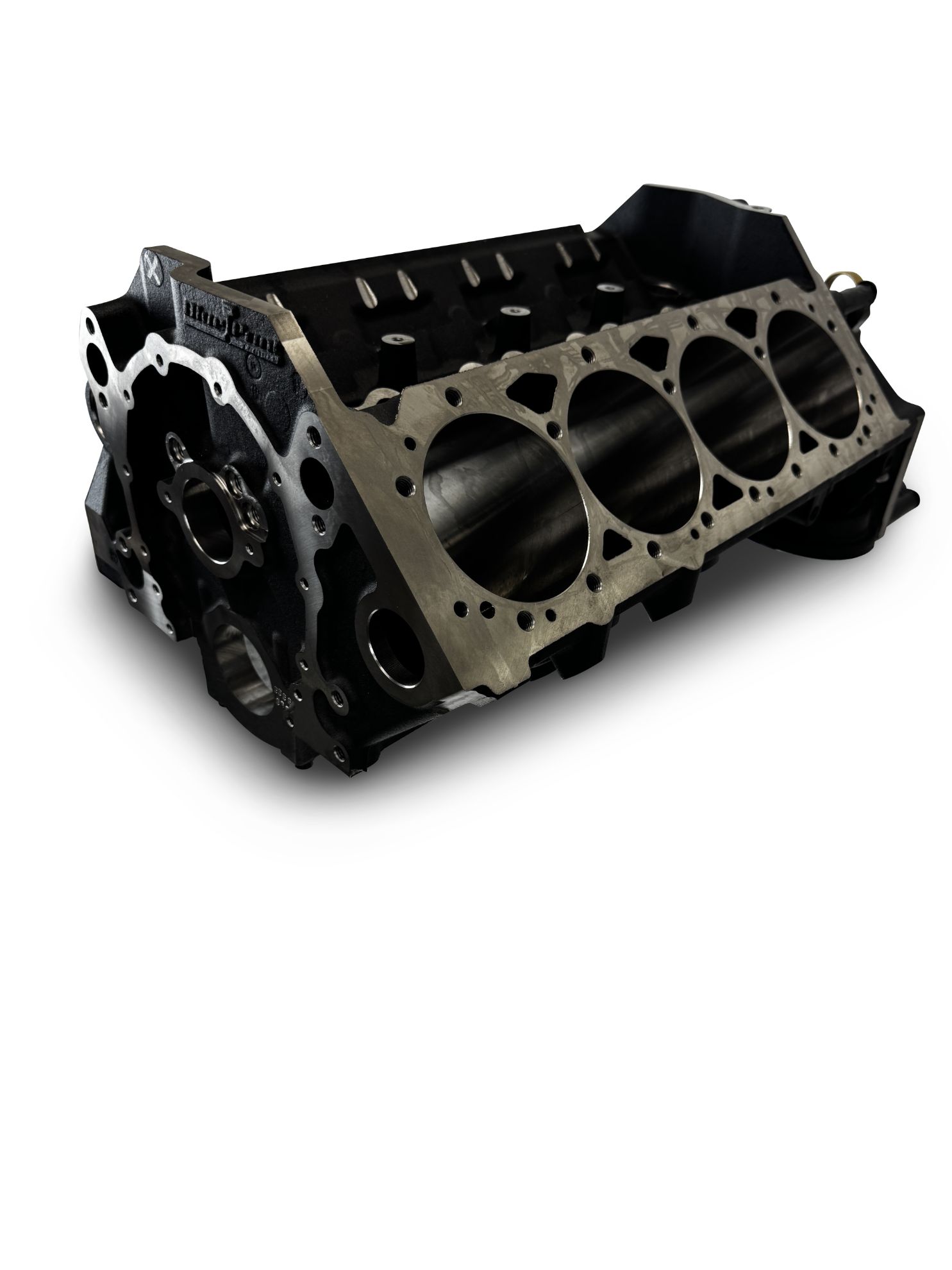

SBC Engine Block 2PC 9.025 Deck 4.000 Bore

Name: SBC Engine Block 2PC 9.025 Deck 4.000 Bore
SKU: BPP12110347
Price: 3785.43 USD
Availability: OutOfStock

Manufacturer: BluePrint Engines

Manufacturer part number: BPP12110347

Old price: $3,999.00

Price: $3,785.43

PRICE BREAKS - The more you buy, the more you save

Quantity	2+	4+
Price	$3,738.69	$3,715.31

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Engine - Bare Block - 4.000 in Bore - 9.025 in Deck - 350 Main - 4-Bolt Main - 2-Piece Seal - Billet Steel Main Caps - Cast Iron - Natural - Small Block Chevy - Each

Manufacturer Part #: BPP12110347

Products specifications

Attribute name	Attribute value
Cylinder Bore (Max)	4.250"
Cam Bearing Bore Id	2.000"+/- .001"
Product Type	Engine
Cam Bearings	Durabond GMP-8
Material	Cast Iron
Sub Type	Bare Block
Camshaft Position	OEM
Finish	Natural
Cam Drive / Timing Set	OEM equivalent
Unit	Each
Cam Retaining Plate	OEM
Cubic Inch (Max)	454
Cylinder Wall Thickness	.230" Nominal @ Max Bore
Specifications	4.000 in Bore, 9.025 in Deck, 350 Main, 4-Bolt Main, 2-Piece Seal, Billet Steel Main Caps, Small Block Chevy
Water Jacket Style	Siamese
Cylinder Skirt Length	5.800" Nominal
Deck Height	9.025" +.005" / -.000"
Deck Thickness:	.600" Nominal
Freeze / Core Plugs	1-5/8" x 10
Head Bolt Threads	7/16-14 UNC
Lifter Bores	.8437" +/- .0003"
Lifter Retainer (If Not Using Tie Bar Lifters)	OEM W/Roller Provisions
Main Bearing Bore (Line Honed)	350 Main - 2.6402" - 2.6410"
Main Bearing Caps	Billet Steel 4-Bolt splayed
Main Cap Bolts	7/16-14 Inner / 3/8-16 splayed
Main Fastener Tensile Strength	180,000 to 210,000 PSI
P1 Main Stud Kit P/N:	TBD
Arp Main Stud Kit P/N	TBD
Material (Block)	EN-GJL-250 Iron
Oil System	Priority Main
Oil Pump	OEM
Oil Filter	OEM
Oil Pan	OEM
Fuel Pump	OEM
Rear Main Seal	2 piece
Starter	OEM
Stroke (Max)	Clearanced for 4.000" stroke
Timing Cover	OEM
Weight With Main Caps	170-190lbs
Quantity	Sold Individually
Prop 65 Y/N Flag	Yes
Cylinder Bore (Rough)	3.995" to 3.997"
Prop 65 - Short Label	WARNING: Cancer and Reproductive Harm - www.p65warnings.ca.gov
Country of Origin	US
Condition	New
