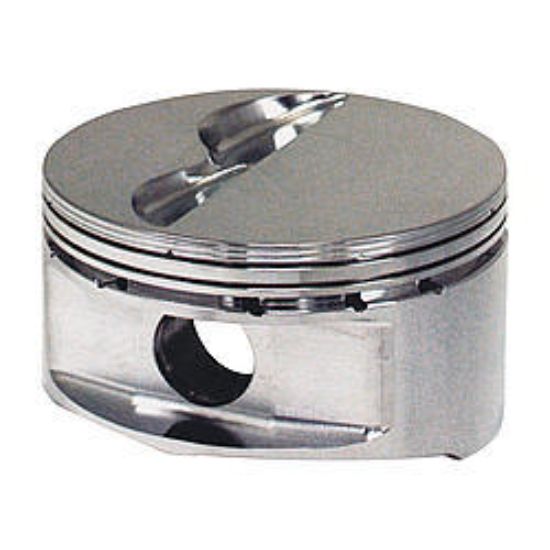

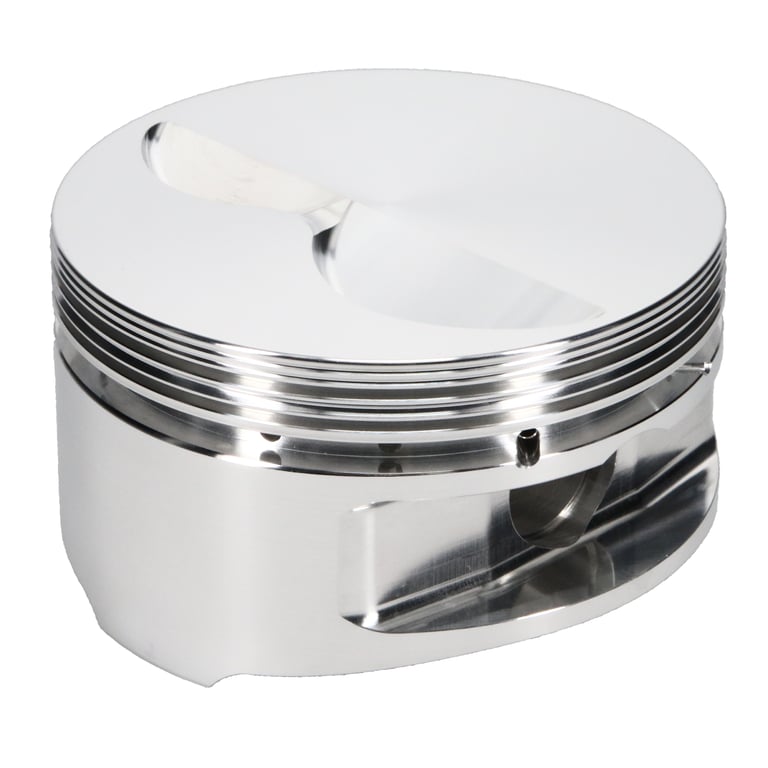

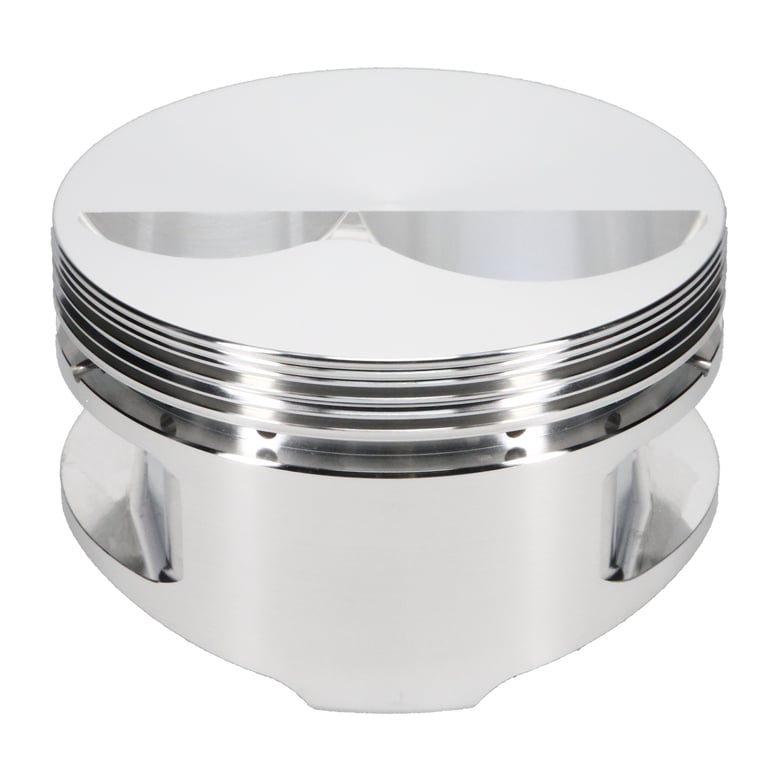

SBC Flat Top Piston Set 4.030 Bore -5cc

Name: SBC Flat Top Piston Set 4.030 Bore -5cc
SKU: 181916
Price: 880.00 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 181916

Old price: $989.99

Price: $880.00

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Piston - Standard Flat Top - Forged - Flat Top - 4.030 in Bore - 1.250 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Minus 5.00 cc - Small Block Chevy - Set of 8

Manufacturer Part #: 181916

Products specifications

Attribute name	Attribute value
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Product Type	Piston, Engine Piston Kit
Cylinder Head	CHEVROLET 23 DEG 20/30
Sub Type	Standard Flat Top
Bore Diameter	4.030
Piston Head Type	Flat
Unit	Set of 8
Compression Height	1.250
Piston Volume	-4.30
Material	2618
Specifications	Forged, Flat Top, 4.030 in Bore, 1.250 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Minus 5.00 cc, Small Block Chevy
Piston Quantity	8
Forging Type	Round
Piston Average Weight	403
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.188
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.500
Wrist Pin Wall Thickness	0.150
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.030 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
