SBC Flat Top Piston Set 4.035 Bore -5cc

Name: SBC Flat Top Piston Set 4.035 Bore -5cc
SKU: 258029
Price: 1024.84 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 258029

Old price: $1,154.99

Price: $1,024.84

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

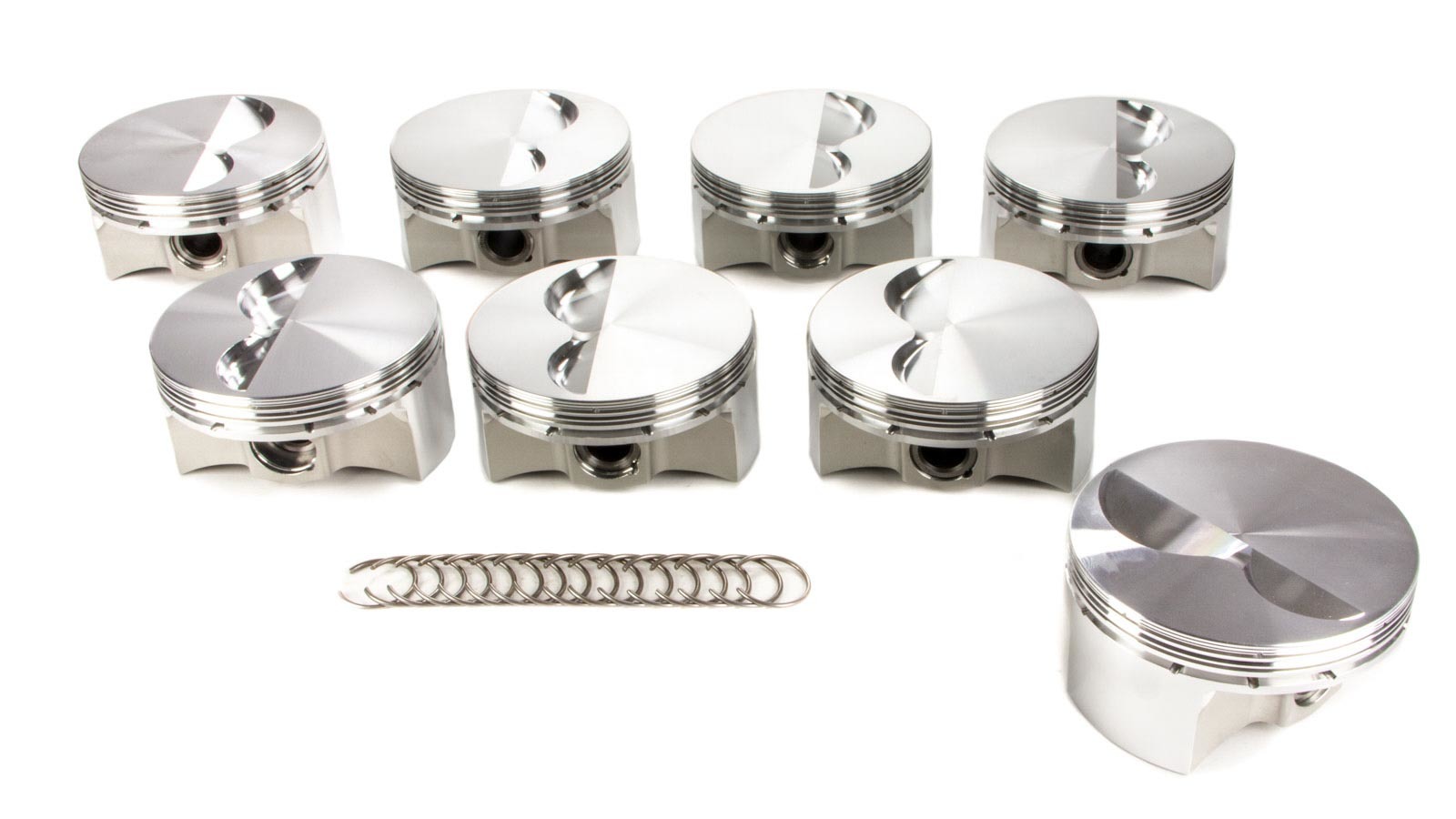

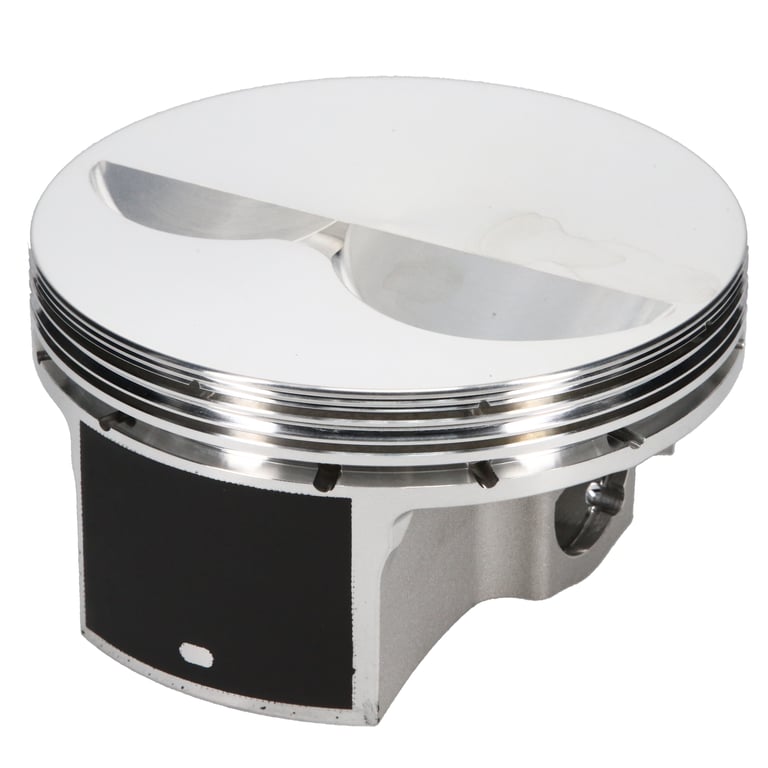

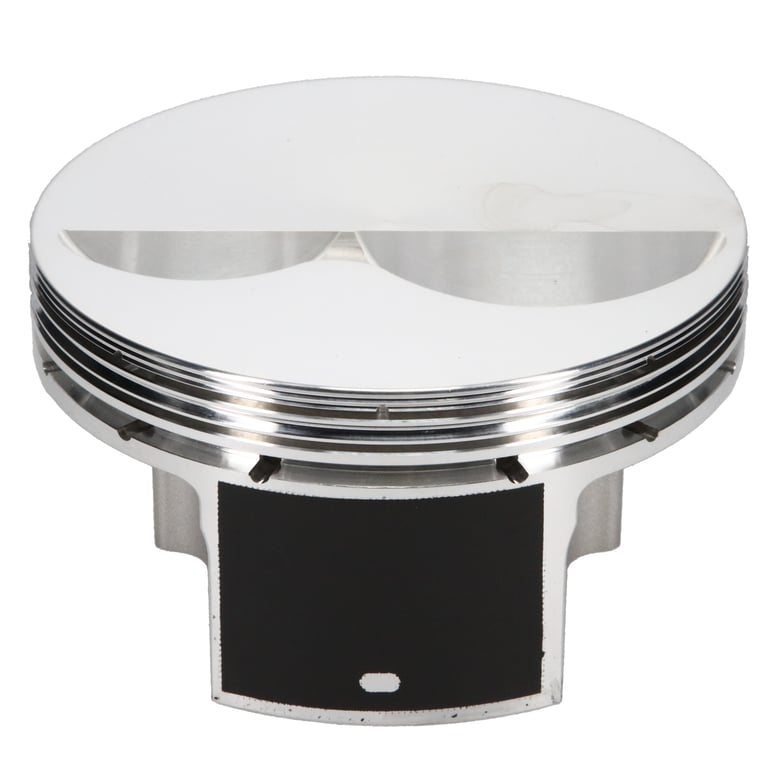

Piston - Forged - Flat Top - 4.035 in Bore - 1.250 in Compression Height - 0.043 in x 0.043 in x 3.0 mm Ring Grooves - Minus 5.00 cc - Small Block Chevy - Set of 8

Manufacturer Part #: 258029

Products specifications

Attribute name	Attribute value
Category Hierarchy	Auto>JE Pistons>Piston Kits
Piston Series	JE Pistons
Product Type	Piston, Engine Piston Kit
Cylinder Head	CHEVROLET 23 DEG 20/30
Sub Type	Forged
Bore Diameter	4.035
Piston Head Type	Flat
Unit	Set of 8
Compression Height	1.250
Piston Volume	-4.10
Material	2618
Specifications	Flat Top, 4.035 in Bore, 1.250 in Compression Height, 0.043 in x 0.043 in x 3.0 mm Ring Grooves, Minus 5.00 cc, Small Block Chevy
Piston Quantity	8
Forging Type	FSR
Piston Average Weight	363
Ring Set Included	No
Top Compression Ring Thickness	0.0436
Second Compression Ring Thickness	0.0440
Oil Ring Thickness	0.119
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.350
Wrist Pin Wall Thickness	0.150
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.035 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
