SBC Flat Top Piston Set 4.045 Bore -5cc

Name: SBC Flat Top Piston Set 4.045 Bore -5cc
SKU: 258027
Price: 1044.15 USD
Availability: OutOfStock

Manufacturer: JE Pistons

Manufacturer part number: 258027

Old price: $1,176.99

Price: $1,044.15

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

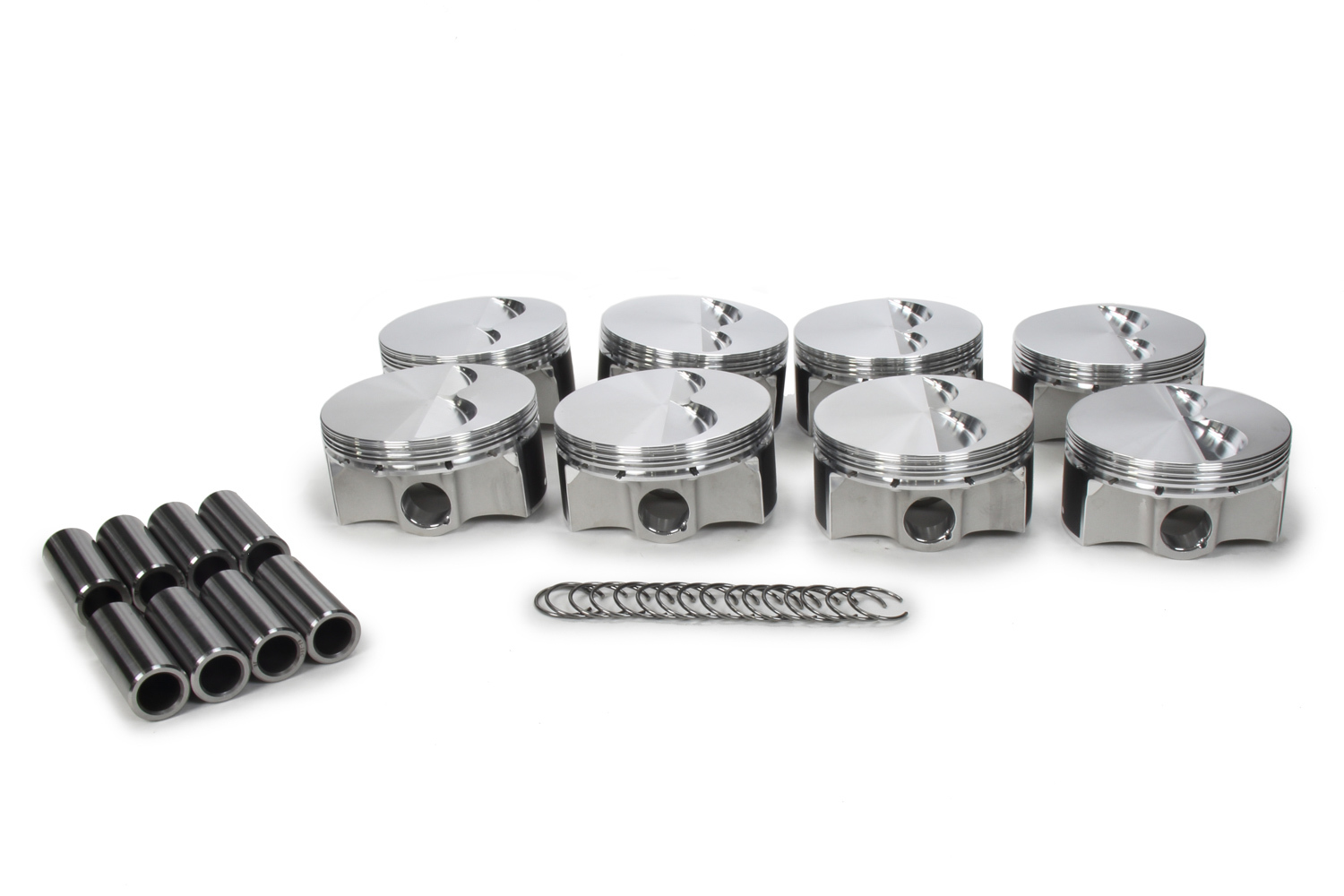

Piston - Forged - Flat Top - 4.045 in Bore - 1.550 in Compression Height - 0.0436 in x 0.044 in x 3.0 mm Ring Grooves - Minus 4.10 cc - Small Block Chevy - Set of 8

Manufacturer Part #: 258027

Products specifications

Attribute name	Attribute value
Ring Set Included	No
Top Compression Ring Thickness	0.0436
Product Type	Piston, Engine Piston Kit
Second Compression Ring Thickness	0.0440
Sub Type	Forged
Oil Ring Thickness	0.119
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Unit	Set of 8
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.350
Wrist Pin Wall Thickness	0.150
Specifications	Flat Top, 4.045 in Bore, 1.550 in Compression Height, 0.0436 in x 0.044 in x 3.0 mm Ring Grooves, Minus 4.10 cc, Small Block Chevy
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Cylinder Head	CHEVROLET 23 DEG 20/30
Bore Diameter	4.045
Piston Head Type	Flat
Compression Height	1.550
Piston Volume	-4.10
Material	2618
Piston Quantity	8
Forging Type	FSR
Piston Average Weight	391
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.045 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
