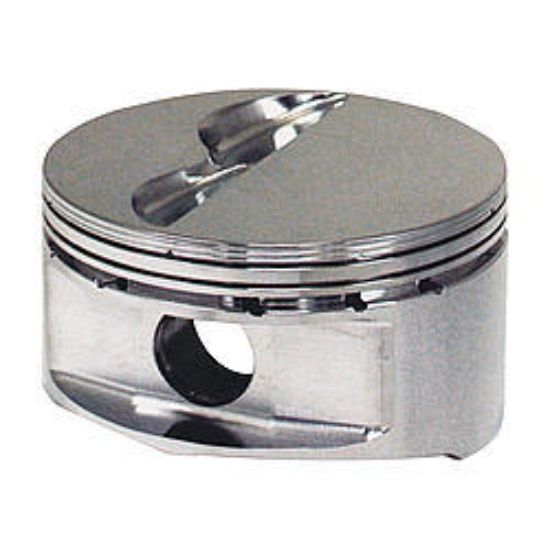

SBC Flat Top Piston Set 4.155 Bore -6cc

Name: SBC Flat Top Piston Set 4.155 Bore -6cc
SKU: 181960
Price: 956.37 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 181960

Old price: $1,076.99

Price: $956.37

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

Piston - 18 Degree Flat Top - Forged - Flat Top - 4.155 in Bore - 1.062 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Minus 6.00 cc - Small Block Chevy - Set of 8

Manufacturer Part #: 181960

Products specifications

Attribute name	Attribute value
Wrist Pin Length	2.950
Wrist Pin Wall Thickness	0.150
Product Type	Piston, Engine Piston Kit
Sub Type	18 Degree Flat Top
Category Hierarchy	Auto>All Piston Kits
Piston Series	JE Pistons
Unit	Set of 8
Cylinder Head	CHEVROLET 18 DEG
Bore Diameter	4.155
Piston Head Type	Flat
Specifications	Forged, Flat Top, 4.155 in Bore, 1.062 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Minus 6.00 cc, Small Block Chevy
Compression Height	1.062
Piston Volume	-5.90
Material	2618
Piston Quantity	8
Forging Type	Round
Piston Average Weight	449
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.218
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.155 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
