SBC F/T piston Set 4.125 Bore -5.0cc

Name: SBC F/T piston Set 4.125 Bore -5.0cc
SKU: 242886
Price: 909.84 USD
Availability: InStock

Manufacturer: JE Pistons

Manufacturer part number: 242886

Old price: $1,023.99

Price: $909.84

Qty:

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

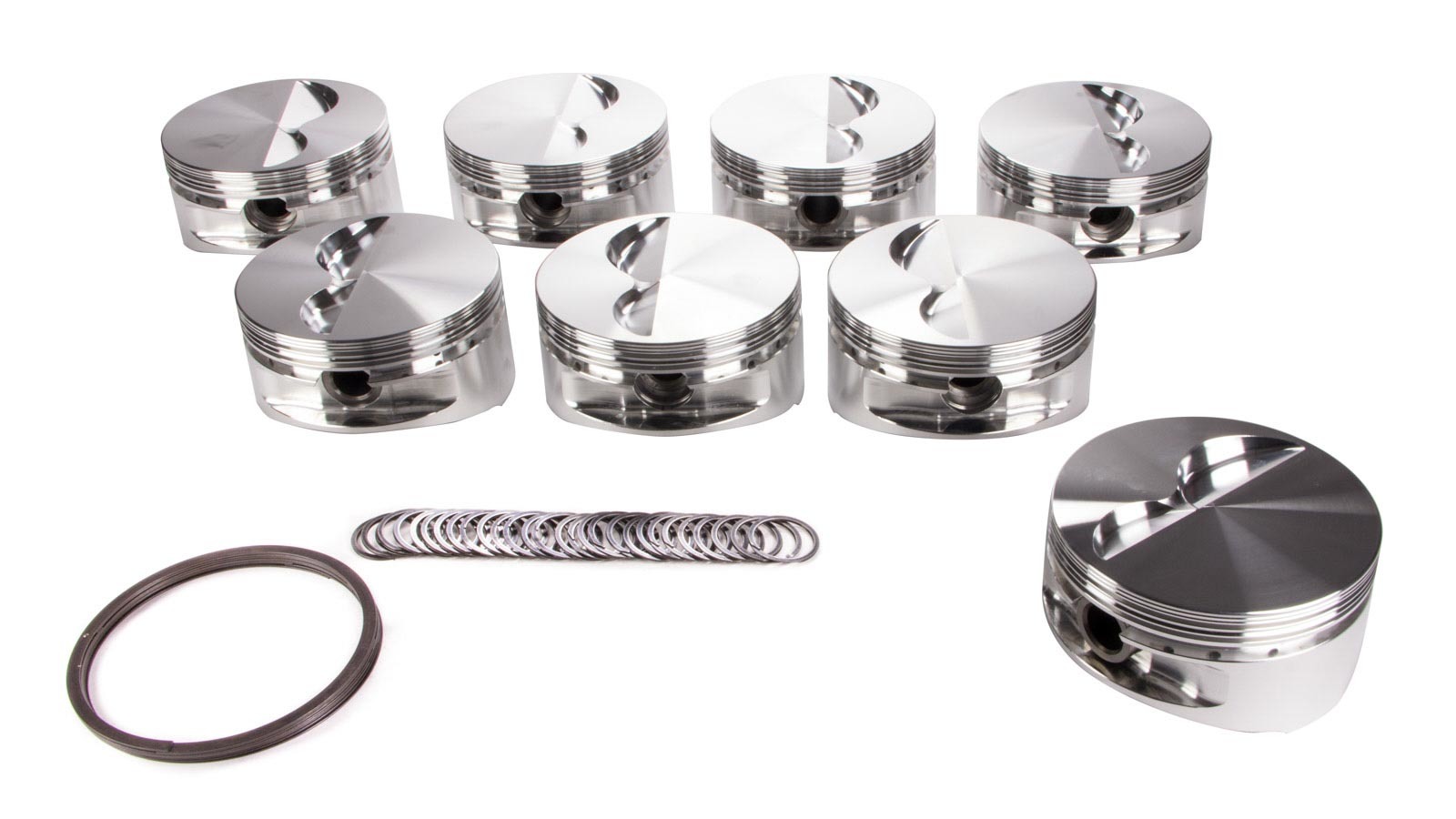

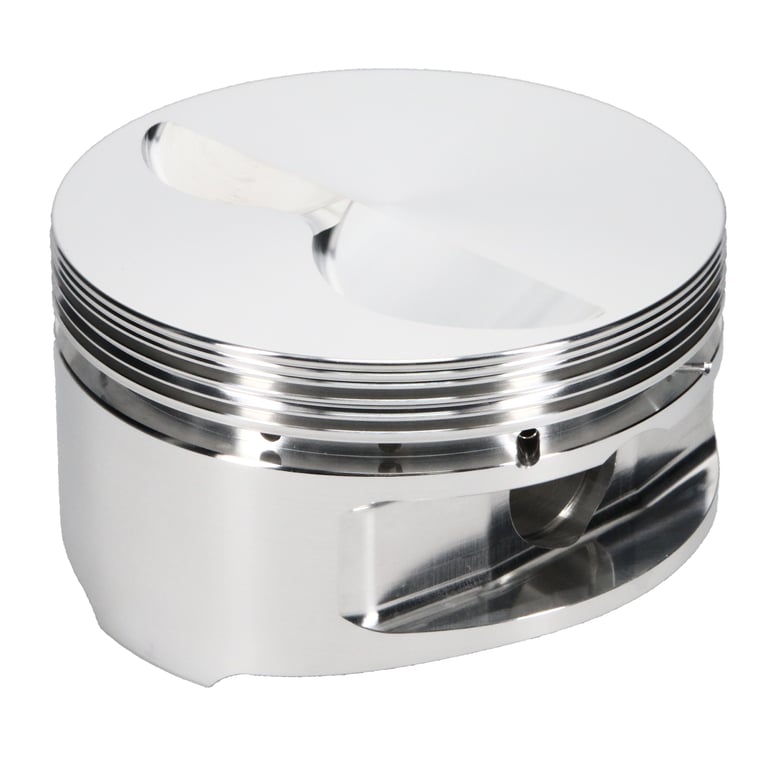

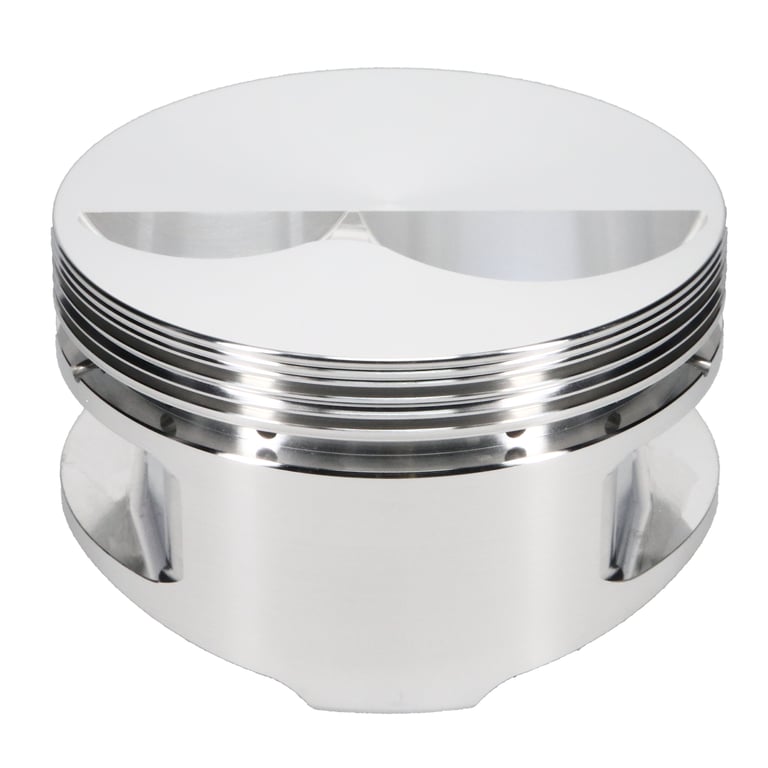

Piston - Small Block Flat Top - Forged - Flat Top - 4.125 in Bore - 1.000 in Compression Height - 1/16 x 1/16 x 3/16 in Ring Grooves - Minus 5.00 cc - Small Block Chevy - Set of 8

Manufacturer Part #: 242886

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	CHEVROLET 23 DEG 20/30
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.125
Sub Type	Small Block Flat Top
Piston Head Type	Flat
Compression Height	1.000
Unit	Set of 8
Piston Volume	-4.30
Material	2618
Piston Quantity	8
Specifications	Forged, Flat Top, 4.125 in Bore, 1.000 in Compression Height, 1/16 x 1/16 x 3/16 in Ring Grooves, Minus 5.00 cc, Small Block Chevy
Forging Type	Round
Piston Average Weight	391
Ring Set Included	No
Top Compression Ring Thickness	0.0640
Second Compression Ring Thickness	0.0640
Oil Ring Thickness	0.218
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.750
Wrist Pin Wall Thickness	0.150
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.125 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
