SBC Ultra GP FT Piston Set 4.030 Bore

Name: SBC Ultra GP FT Piston Set 4.030 Bore
SKU: 173615
Price: 1024.84 USD
Availability: OutOfStock

Manufacturer: JE Pistons

Manufacturer part number: 173615

Old price: $1,154.99

Price: $1,024.84

Ship to

Shipping Method

Name

Estimated Delivery

Price

No shipping options

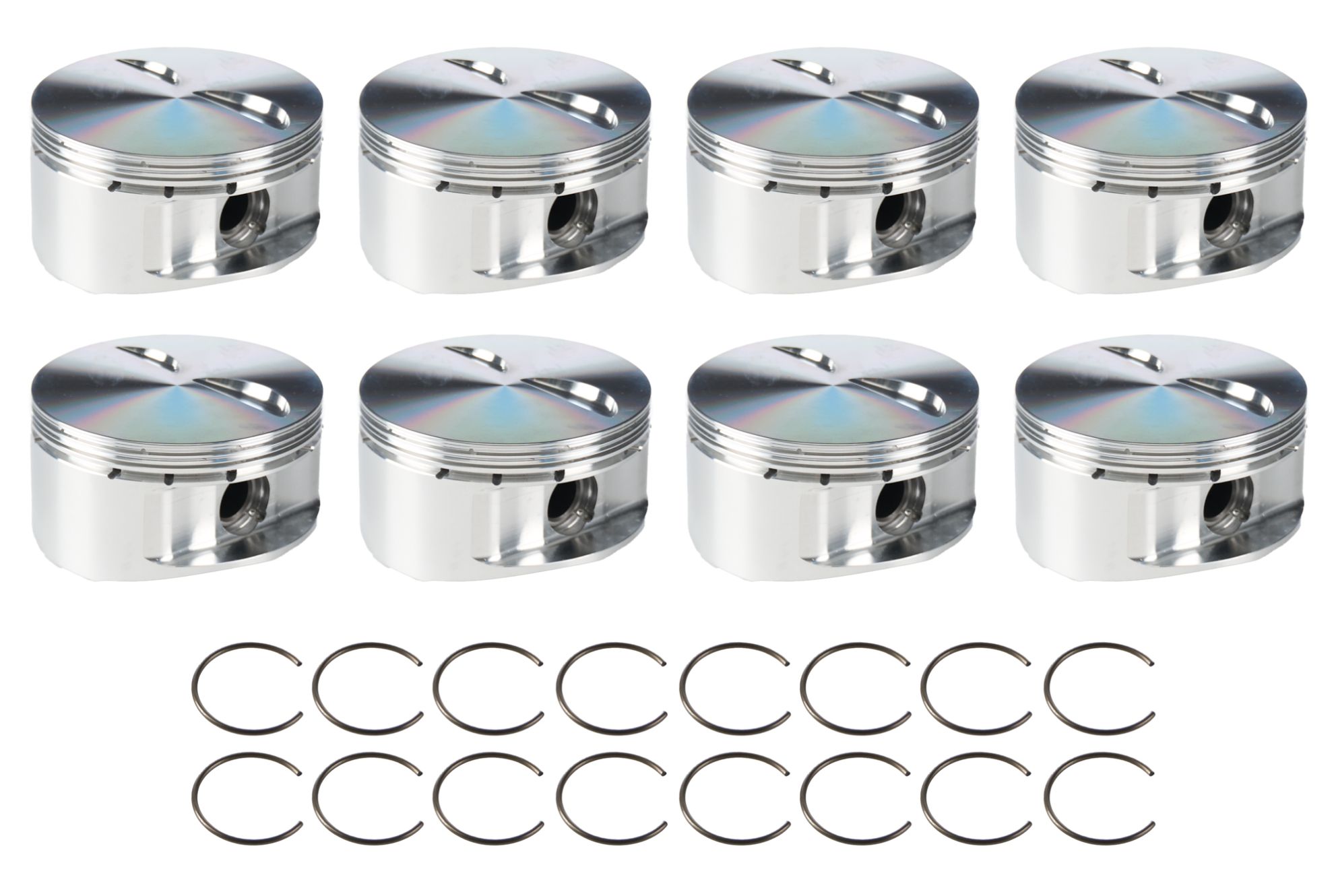

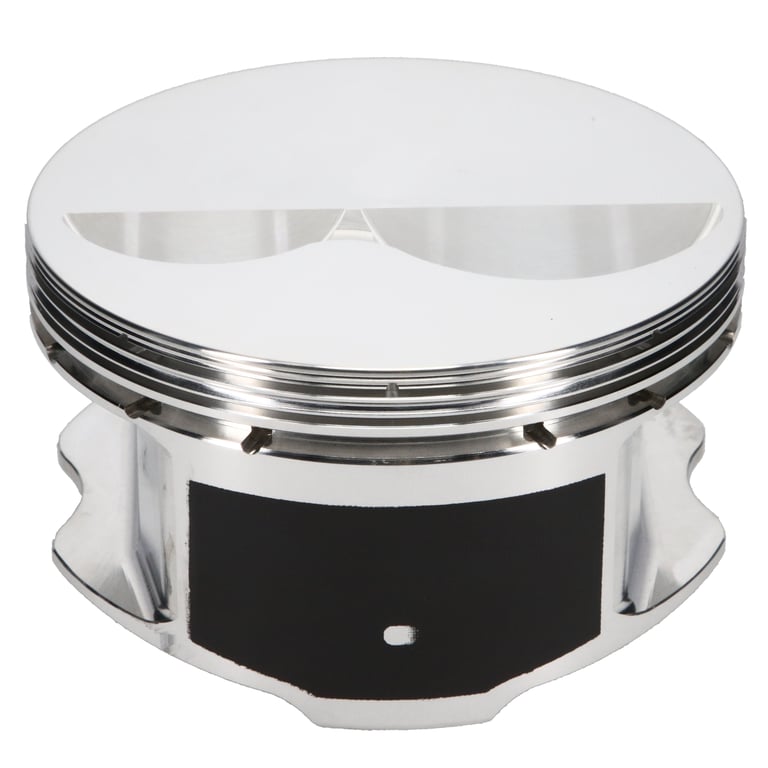

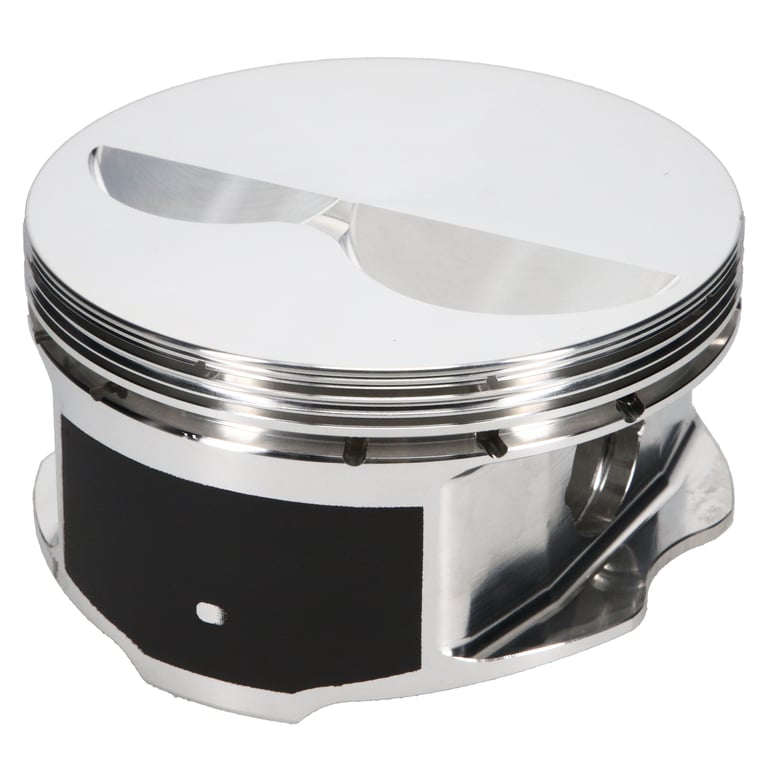

Piston - Ultra Light Flat Top - Forged - Flat Top - 4.030 in Bore - 1.250 in Compression Height - 0.043 x 0.044 x 0.119 in Ring Grooves - Minus 1.50 cc - Small Block Chevy - Set of 8

Note: 3.500 Stroke 6.000 Rod Length 1.250 CH

Manufacturer Part #: 173615

Products specifications

Attribute name	Attribute value
Piston Series	JE Pistons
Cylinder Head	STD CHEVROLET 23 DEG
Product Type	Piston, Engine Piston Kit
Bore Diameter	4.030
Sub Type	Ultra Light Flat Top
Piston Head Type	Flat
Compression Height	1.250
Unit	Set of 8
Piston Volume	-1.50
Material	2618
Forging Type	Round
Specifications	Forged, Flat Top, 4.030 in Bore, 1.250 in Compression Height, 0.043 x 0.044 x 0.119 in Ring Grooves, Minus 1.50 cc, Small Block Chevy
Piston Average Weight	358
Ring Set Included	No
Top Compression Ring Thickness	0.0436
Second Compression Ring Thickness	0.0440
Oil Ring Thickness	0.119
Wrist Pin Material	5115 Low Carbon Steel, Case Hardened
Wrist Pin Outer Diameter	0.927
Wrist Pin Length	2.400
Wrist Pin Wall Thickness	0.130
Category Hierarchy	Auto>All Piston Kits
Prop 65 (C, R or CR)	CR
Prop 65 Yes/No	Yes
Prop 65 - Short Label	prop65warninglabel.jpg
Bore Diameter - Web	4.030 IN
EBAY Category ID	33623
Country of Origin	US
Condition	New
